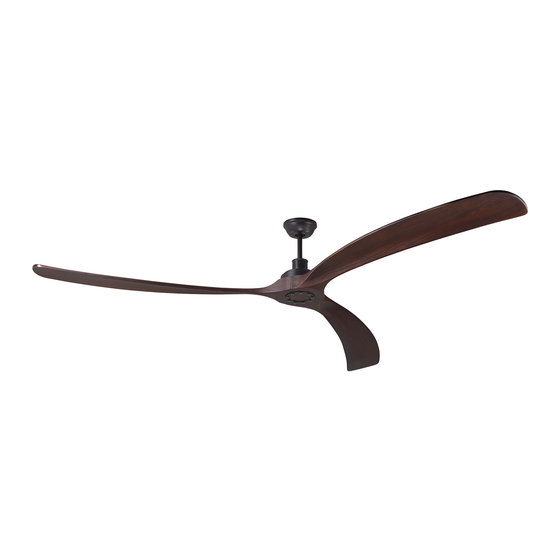

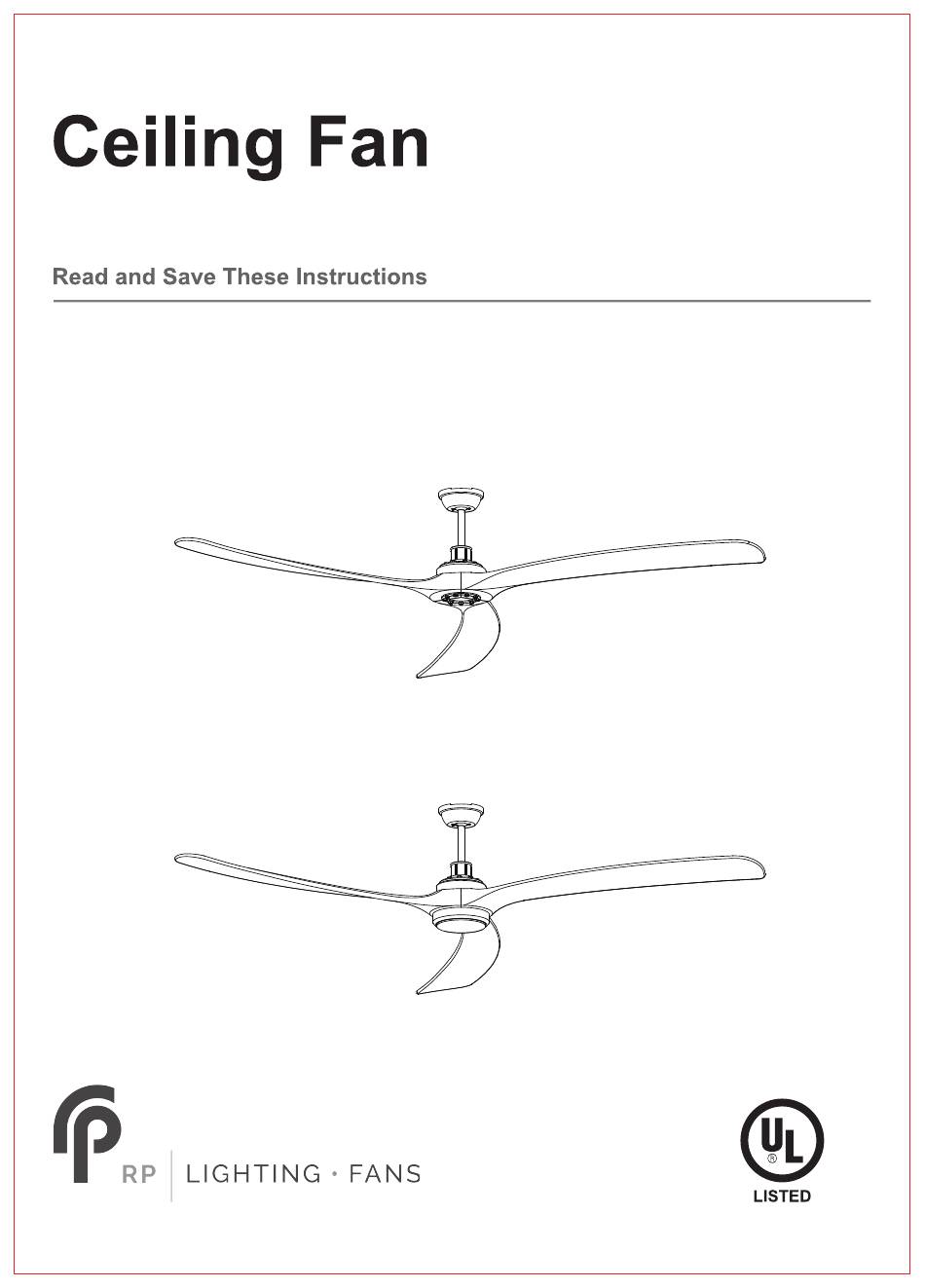

- Page 1 Installation Guide For Models: 1088 , 1088LED Net Weight of Fan: 19.14 lbs ( 8.7kgs) Net Weight of Fan: 20 lbs ( 9.1kgs)
-
Page 2: Table Of Contents
SAFETY RULES TOOLS REQUIRED UNPACKING FAN MOUNTING OPTIONS HANGING THE FAN STANDARD CEILING INSTALLATION HANGING THE FAN MOTOR ASSEMBLY MAKING ELECTRICAL CONNECTIONS CANOPY ASSEMBLY ATTACHING THE FAN BLADES INSTALLING THE LIGHT KIT OPERATING YOUR FAN 11.12 TROUBLESHOOTING CARE OF YOUR FAN... -
Page 3: Safety Rules
SAFETY RULES 8. Wooden blades are not intended for storage or installation in spaces that are not temperature controlled. To avoid issues with blade warping do not store or install ceiling fans in areas without air conditioning. Do not use water or detergents when cleaning the fan or fan blades. -
Page 4: Tools Required
TOOLS REQUIRED ．Ladder ·Pliers ·Wire Strippers ·Phillips Screwdriver PACKAGE CONTENTS For model: 1088 Blade plate Flat / Spring washers (5) ,Flat / Spring washers (4) (Battery 1x12V23A included) RF Wall Control... - Page 5 For model: 1088-LED Bracket plate Blade plate LED Light kit Glass shade Flat / Spring washers (5) ,Flat / Spring washers (4) (Battery 1x12V23A Included) RF Wall Control...
-
Page 6: Mounting Options
MOUNTING OPTIONS Fig.1 Ceiling joists (at least 50 lbs). Do not use plastic outlet boxes. Fig.2 Ceiling Fig.3 Fig.4 At the end of the blade must be a minimum of 2 meters away from the wall. There must be a distance of 3 meters between two ceiling fans. -
Page 7: Hanging The Fan
HANGING THE FAN Supply wires Outlet box 120VAC 60Hz REMEMBER to turn off the power. Follow the steps below to hang your fan properly. NOTE: This ceiling fan is supplied with the hanging assemblies; the standard ceiling installation using the downrod with ball and hanger bracket mounting installation. -
Page 8: Hanging The Fan Motor Assembly
Step 7. Install the safety cable to the ceiling using wood screw and washers. WOOD MEMBER CEILING JOIST (2” X 4” APPROX.) screw with washer CEILING JUNCTION HANGER BRACKET Safety cable HANGING THE FAN MOTOR ASSEMBLY Lift the fan assembly onto the mounting bracket. Then will allow you to make the electrical connections. -
Page 9: Making Electrical Connections
MAKING ELECTRICAL CONNECTIONS BLACK(TO AC L) GREEN GROUND RF WALL CONTROL OUTLET BOX IN CEILING BLACK(TO MOTOR) Refer to wiring diagram making correct wire connections. NOTE: This fan must be installed by a licensed electrician. After wire connections have been made, turn leads upward and carefully push the white wire and black wire connections RECEIVER into the outlet box. -
Page 10: Canopy Assembly
CANOPY ASSEMBLY After completing electrical connection, cover the MOUNTING BRACKET with the CANOPY. Ensure that all electrical wiring is carefully tucked inside the canopy. Locate 2 screws on underside of mounting bracket. Attach canopy to the mounting bracket by placing screws into slotted holes in canopy. Twist clockwise to lock into place. -
Page 11: Attaching The Fan Blades
CAUTION - TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE BRACKETS WHEN INSTALLATION. WHEN BALANCING THE BLADES, OR CLEANING THE FAN, DO NOT INSERT FOREIGN OBJECTS IN BETWEEN ROTATING FAN BLADES. For model: 1088 Blade plate For model: 1088LED... -
Page 12: Installing The Light Kit
INSTALLING THE LIGHT KIT (for fan included light kit) CAUTION: TO reduce the risk of electric shock, disconnect the power to fan before installing light kit. Connect the light wires use the connectors, Light kit Black Wire (Hot) to Blue wire from fan motor, Light kit White Wire (Neutral) to White Wire from fan motor. -
Page 13: Operating Your Fan
OPERATING YOUR FAN Turn the RF wall control power on and check the operation of your fan. The RF wall control controls the fan speed as follows: Wall Transmitter Operation The buttons on the wall transmitter control the fan speed and light as follows. Press the FAN OFF button to turn fan off. - Page 14 F/R button controls directions: forward or reverse. Warm Weather (Forward) - A downward airflow creates a cooling effect as shown in Fig.7. This allows you to set your air conditioner on a warmer setting without affecting your comfort. Fig.7 Cool Weather (Reverse) - An upward airflow moves warm air off the ceiling area as shown in Fig.8.
-
Page 15: Troubleshooting
TROUBLESHOOTING WARNING: Failure to disconnect power supply prior to troubleshooting any wiring issues may result in serious injury. Problem Solutions - Check circuit fuses or breakers. Fan will not start. - Check line wire connections to the fan and switch wire connections in the switch housing. Fan sounds noisy. - Page 16 RP-100919...
