C14 EZ-Lok Plug Connector
C20 EZ-Lok Plug Connector
Installation Guide
Package Contents
2X-EA10
Qty
Description
10
C14 EZ-Lok Plug Connector
1
user instructions
Installation

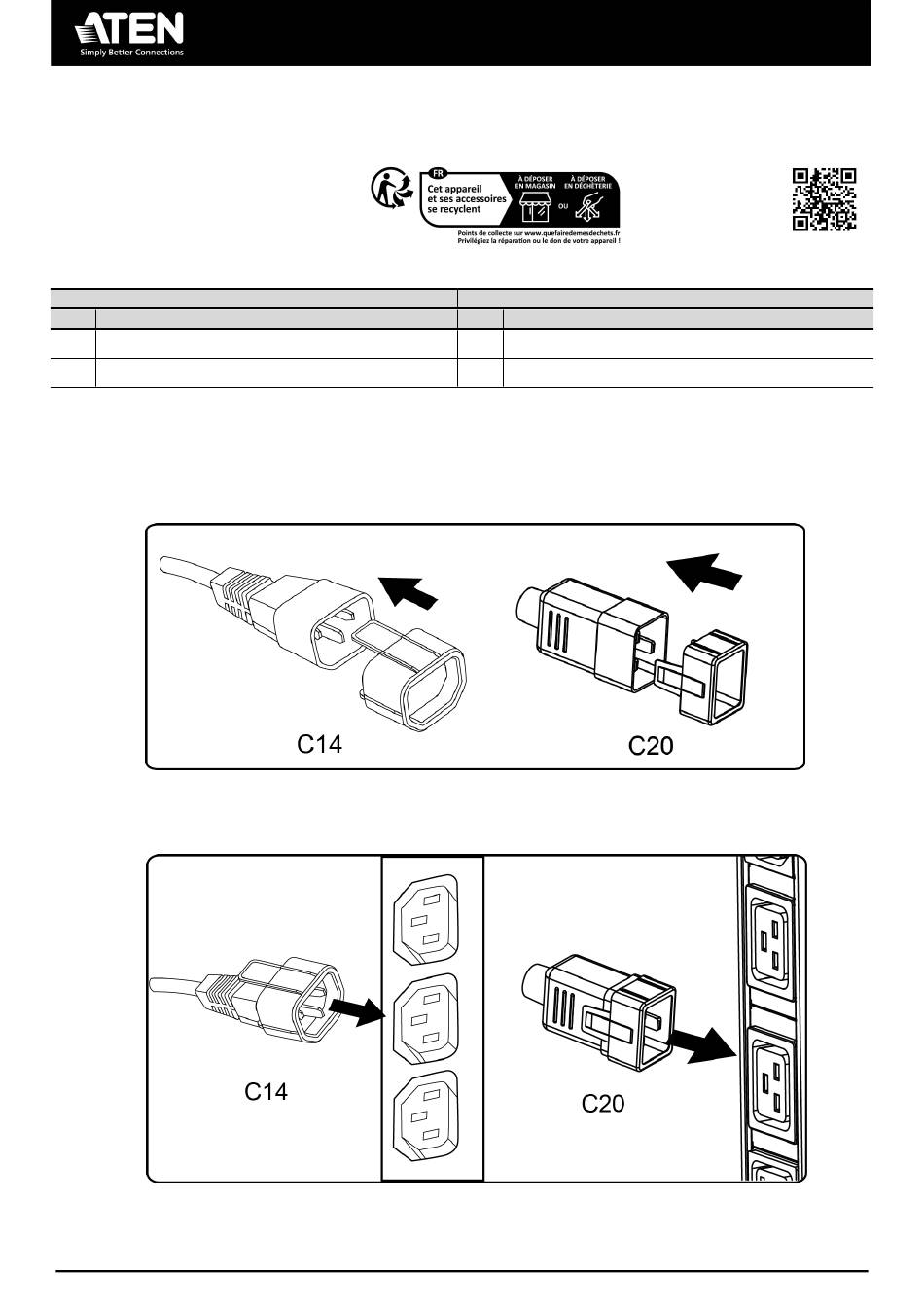

To secure a power cable in place, using C14 / C20 EZ-Lok Plug Connector, do the following:
1.
Slide and attach the EZ-Lok Plug Connector onto a C14 or C20 plug until it clicks into place.
2.
Insert the plug, with the EZ-Lok Plug Connector attached, into any available socket on a PDU by sliding it directly
over and straight into the socket.
3.
To disconnect the plug from the PDU, grip onto and squeeze the EZ-Lok Plug Connector as you pull and detach
the plug from the PDU socket.
All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer.
Please visit our website to find the most up-to-date version.
2X-EA10
2X-EA11
Qty
Description
4
C20 EZ-Lok Plug Connector
1
user instructions
MISC00000251 05/2023 V4.0
2X-EA11
