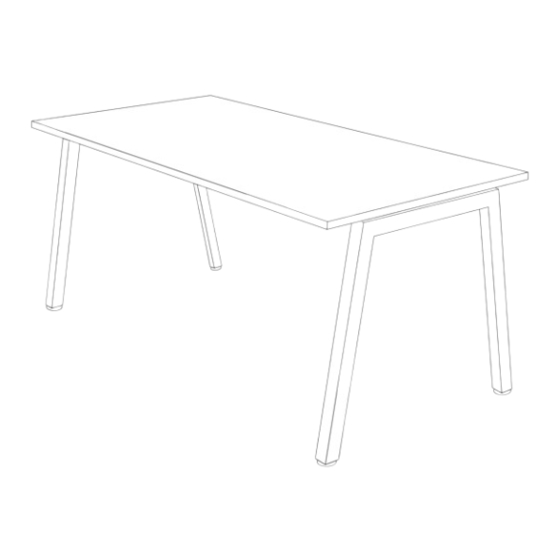

- Page 1 ASSEMBLY INSTRUCTIONS Quadro A desk Need help! Call us on Size: 1000L x 600W mm 1300 527 665 Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 5...
- Page 2 ASSEMBLY INSTRUCTIONS Quadro A desk Need help! Call us on Size: 1000L x 600W mm 1300 527 665 COMPONENTS Table top x1 Legs Quadro A x2 Beam x1 Plastic bracket x4 SCREWS M8x20MM CSK x1 M8x20MM Socket head x1...
- Page 3 ASSEMBLY INSTRUCTIONS Quadro A desk Need help! Call us on Size: 1000L x 600W mm 1300 527 665 STEP 01 STEP 02 STEP 03 Use fixed beam (C) 1000mm and secure beam Using Allen Key provided, attach 2 plastic...
- Page 4 ASSEMBLY INSTRUCTIONS Quadro A desk Need help! Call us on Size: 1000L x 600W mm 1300 527 665 STEP 04 TOP VIEW STEP 05 Attach beam (C) to legs (B) using nut insert in legs Frame looks like this. Using Allen Key, attach beam (C) with Socket (E)
- Page 5 ASSEMBLY INSTRUCTIONS Quadro A desk Need help! Call us on Size: 1000L x 600W mm 1300 527 665 STEP 06 TABLE TOP BOTTOM VIEW nut insert nut insert Place desktop ontop of frame. Nut inserts in top will align with plastic joiner brackets using M6x30MM (H) sockets attached top to frame.
