ASSEMBLY INSTRUCTIONS

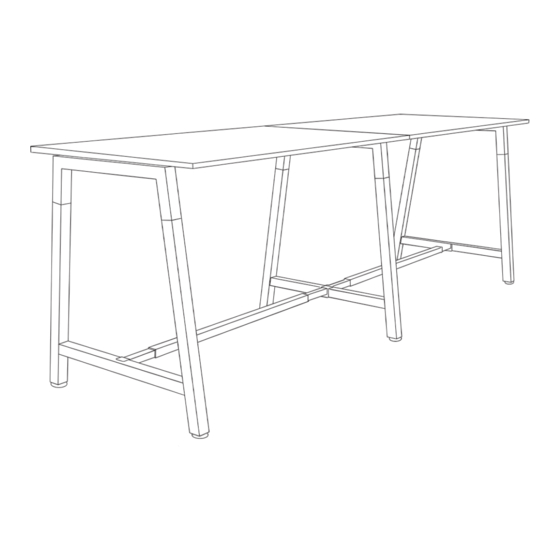

Quadro Wood A leg
Dry Bar frame
Sizes:
2400L x 1200W mm
3000L x 1200W mm
3600L x 1200W mm
Tools Required:
Power screwdriver; Allen key set (provided)
2 persons required for installation
www.jasonl.com.au
Need help!
Call us on
1300 527 665
Page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jason.L Quadro Wood A leg
Summary of Contents for Jason.L Quadro Wood A leg
- Page 1 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Dry Bar frame Call us on 1300 527 665 Sizes: 2400L x 1200W mm 3000L x 1200W mm 3600L x 1200W mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation...
- Page 2 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Dry Bar frame Call us on 1300 527 665 COMPONENTS Table top x2 Leg Quadro A ( Half leg cross beam ) x2 Intermediate Leg Quadro A (Half leg cross beam ) x1...
- Page 3 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Dry Bar frame Call us on 1300 527 665 Plastic bracket holes STEP 01 facing to the other side. Insert the Leg wood add on (D) into the Leg You will notice two colored stickers Both exterior legs must have the colour located on each exterior leg.
- Page 4 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Dry Bar frame Call us on 1300 527 665 STEP 02 Now use corner pads (O) to cover the holes Insert the Leg bottom beam (E) into the Leg wood add on (D), where just inserted the head screw sockets.
- Page 5 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Dry Bar frame Call us on 1300 527 665 STEP 01 STEP 02 TOP VIEW Using Allen Key provided, attach 2 plastic brackets (H) per exterior leg (as Using Allen Key provided, attach M8x20MM Socket head (K)- per picture above) using M6x20MM (L) Socket head screw.
- Page 6 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Counter table Call us on 1300 527 665 with intermediate legs STEP 03 Adjust extendable beams (F) to desired length using markers and secure beams at that length using screws provided.
- Page 7 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Dry Bar frame Call us on 1300 527 665 STEP 04 Adjust extendable beams (G) to desired length. Remove plastic inserts Loosen 2 bolts on beam using allen key Extent lower beam to the same distance as upper beam...
- Page 8 ASSEMBLY INSTRUCTIONS Quadro Wood A leg Need help! Dry Bar frame Call us on 1300 527 665 STEP 05 TOP VIEW STEP 06 Attach Upper Beams (F) to legs using nut insert. Frame looks like this. Using Allen Key, attach Upper Beams (F) See point attached with Sockets (J).
