USER MANUAL
SPARE PARTS CATALOGUE
WARRANTY

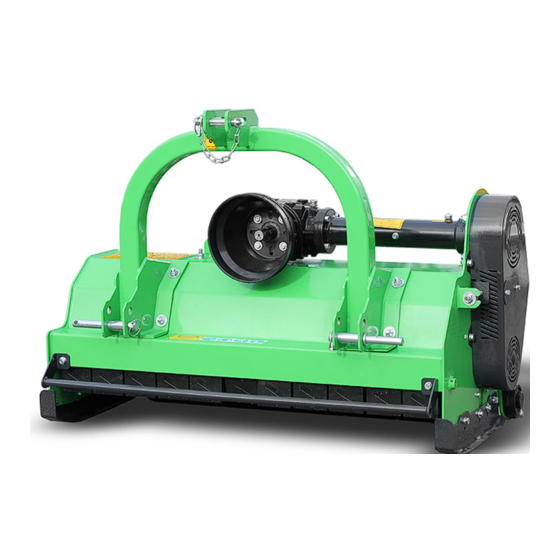

LIGHT FLAIL MOWER ECO
100; 135; 135H; 150; 150H;
180; 180H; 200; 200H; 220; 220H
Borzytuchom 2023 - ISSUE 02
TRANSLATION OF THE ORIGINAL MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Talex LIGHT FLAIL MOWER ECO 100
Summary of Contents for Talex LIGHT FLAIL MOWER ECO 100
- Page 1 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl USER MANUAL SPARE PARTS CATALOGUE WARRANTY LIGHT FLAIL MOWER ECO 100; 135; 135H; 150; 150H; 180; 180H; 200; 200H; 220; 220H Borzytuchom 2023 - ISSUE 02...
- Page 2 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl CAUTION! The safety regulations shall be followed while using the machine and this manual shall be read prior to the machine operation.
-
Page 3: Table Of Contents
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl TABLE OF CONTENTS Machine identification ........................5 Introduction ........................... 6 2.1. Read the manual ........................6 2.2. Intended use ........................... 6 2.3. - Page 4 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.8. V-belt gearbox cover ECO 180/200/220 ................33 7.9. Belt tensioner ........................34 7.10. Fixed headstock ....................... 35 7.11. Hydraulic headstock......................36 7.12.
-
Page 5: Machine Identification
Fig 1: Nameplate In case of uncertainty, the dealer or manufacturer should provide any information about the machine and clarification of the operating instructions. Manufacturer’s adress: TALEX Spółka z ograniczoną odpowiedzialnością ul. Dworcowa 9c 77-141 Borzytuchom POLAND Tel.: +48 59 821 13 40 www.talex-sj.pl... -
Page 6: Introduction
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 2. Introduction CAUTION! This symbol indicates danger. This warning symbol indicates important information about the dangers. You are requested to read the information carefully, Follow the recommendations 2.1. -
Page 7: Warranty
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 2.3. Warranty Warranty conditions are stated in the warranty card. It is the responsibility of the machine operator to thoroughly familiarise himself with this operating manual. Failing to follow the rules of proper operation will lead to a reduction in the efficiency of the shredder, its failure and the loss of warranty rights. - Page 8 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 12. The control of the tractor's hydraulic linkage lever should be carried out only from the driver's seat position. 13. It is not allowed to operate the lifting and lowering lever from outside the vehicle.
-
Page 9: Safety Signs On The Machine
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 3.2. Safety signs on the machine Prior to using the machine, Switch off the engine and Keep a safe distance from read remove the key before the machine. - Page 10 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Keep a safe distance from power lines Avoid exposure to liquids Warning : cutting knives. flowing under pressure. Keep away from the working...
-
Page 11: Threats Occurring During The Use Of The Mower
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 3.3. Threats occurring during the use of the mower Threat Source of threat (reason) Measures to protect against threats Overload of the... -
Page 12: Working Parts Of The Machine
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Transport Before the mower linked to the tractor is set to the transport position, make sure that the PTO shaft is turned off and all rotating elements are at rest. -
Page 13: Service
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl With the PTO disengaged, wait until the rotation due to the inertia of the rotating masses has ceased before anyone enters the danger zone. -
Page 14: Technical Specification
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 3.9. Technical specification 135/135H 150/150H 180/180H 200/200H 220/220H Shredder type Shredding work 1000 mm 1350 mm 1500 mm 1730mm 1930mm 2130mm width(A) -
Page 15: Construction And Operation
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Fig 1. ECO shredder dimensions 3.10. Construction and operation The shredder is linked to the tractor's three-point linkage. The working shaft (4) is driven from the tractor's PTO through the PTO shaft (1), angular transmission (2) and belt transmission (3). -
Page 16: Usage
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Fig 2. Shredder drive diagram 1 – PTO shaft, 2 – Angular transmission, 3 –Belt transmission, 4 – Working shaft. 4. Usage 4.1. -
Page 17: Work
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl mount the PTO shaft, i.e. put the shaft ends on the tractor PTO and PTO of the machine, and secure against slipping out with the shaft latches. -
Page 18: Recommended Machine Maintenance
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 5. Recommended machine maintenance At least once a year, change the oil in the gearbox and in the drive shaft housing. Use commercially available gear oil with the characteristics of GL-4 80W90. -
Page 19: V-Belts Tensioning
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Fig 5. Greasing diagram 5.2. V-belts tensioning Open the inspection visor before tensioning the v-belts. To do this, unscrew the 2 M8x16 bolts (1) and remove the plug (2). -
Page 20: Replacing The Flail Hammers
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Fig 6. Belt tensioning scheme 5.3. Replacing the flail hammers The working shaft in the ECO shredder is equipped with shredding parts in the form of flail hammers (Figure 8). -
Page 21: Technical Inspections, Storage And Utilization
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Shredding parts must be replaced after discovering defects, clear signs of wear, blunting of cutting edges, incomplete beaters or excessive looseness of mounted parts. -
Page 22: Storage
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl After the end of the working season: thoroughly clean the machine of impurities, carry out a technical inspection and replace damaged parts with new ones available from the manufacturer, ... -
Page 23: Spare Parts Catalogue
These changes may not always be updated in the manual and parts catalogue. Individual drawings of spare parts may differ from the actual state. TALEX Spółka z ograniczoną odpowiedzialnością ul. Dworcowa 9C 77-141 Borzytuchom Tel.: +48 59 821 13 40... -
Page 24: General Machine Construction
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.1. General machine construction Fig 8. General machine construction Fig 9. General machine construction... - Page 25 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Pos. Name Chapter Pcs. Working Shaft Contour following roller 7.3/7.4 Rear curtain Left skid Right skid Belt drive cover 7.7/7.8 Headstock 7.10/7.11 Drive 7.9/7.12...
-
Page 26: Working Shaft
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.2. Working shaft Fig 10. Working shaft components Pos. Name Part no. Pcs. ECO 100 P001687 ECO 135 P001673 ECO 150 P001621... -
Page 27: Contour Following Roller Eco 100, 135, 150
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.3. Contour following roller ECO 100, 135, 150 Fig 11. Complete contour following roller ECO 100, 135, 150 Pos. Name Part no. -
Page 28: Contour Following Roller Eco 180, 200, 220
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.4. Contour following roller ECO 180, 200, 220 Fig. 12. Complete contour following roller ECO 180, 200, 220 Pos. Name Part no. -
Page 29: Rear Curtain
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.5. Rear curtain Fig 13. Complete rear curtain Pos. Name Part no. Pcs. Hex bolt. M8x20-8.8(quantity depends on model T000804 6/8/8/8/9/9 100/135/150/180/200/220) - Page 30 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl ECO 100 T000138 ECO 135 T000137 ECO 150 T000136 Rubber cover ECO 180 T000347 ECO 200 T000348 ECO 220 T000349 ECO 100...
-
Page 31: Skids
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.6. Skids Fig 14. Complete skid Pos. Name Part no. Pcs. Left (v-belts side) P001606 Skid Right P001610 Standard washer M10 T000456... -
Page 32: V-Belt Gearbox Cover Eco 100/135/150
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.7. V-belt gearbox cover ECO 100/135/150 Fig 15. Complete v-belt gearbox cover ECO 100/135/150 Pos. Name Part no. Pcs. Cover P001583 Standard washer M10 T000456 Bolt M10x25-8.8... -
Page 33: V-Belt Gearbox Cover Eco 180/200/220
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.8. V-belt gearbox cover ECO 180/200/220 Fig 16. Complete v-belt gearbox cover ECO 180/200/220 Pos. Name Part no. Pcs. Cover P127043 Standard washer M10... -
Page 34: Belt Tensioner
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.9. Belt tensioner Fig 17. Belt tensioner Pos. Name Part no. Pcs. Belt tensioner arm ECO 100/135/150 P001626 Belt tensioner arm ECO 180/200/220... -
Page 35: Fixed Headstock
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.10. Fixed headstock Fig 18. Fixed headstock - set Pos. Name Part no. Pcs. Lower hitch pin P127010 Universal plug T000981 Bolt M12x30-8.8... -
Page 36: Hydraulic Headstock
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.11. Hydraulic headstock Fig 19. Hydraulic headstock - set Pozycja Nazwa Indeks Ilość M10 Self-lock nut T000292 Standard washer M10 T000456 Bolt M10x80-8.8 T000749 Bolt M12x30-8.8... - Page 37 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Hydraulic headstock main part P001576 ECO 100/135/150 Hydraulic headstock main part P130001 ECO 180/200/220 Standard washer M20 T000462 M20 Self-lock nut T000255...
-
Page 38: Drive Train
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.12. Drive train Fig 20. Components of the drive train... - Page 39 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Pos. Name Part no. Pcs. Bolt M12x30-8.8 T000755 Spring washer M12 T000451 Large washer M12 T000442 M12 Self-lock nut T000291 Gearbox support ECO 100/135/150...
- Page 40 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl Pulley 170/2 for ECO 100/135/150 T002051 Pulley 170/4 for ECO 180/200/220 T000097 Clamp clutch 40/80 T000681 Belt tensioner ECO 100/135/150 P001708 Belt tensioner ECO 180/200/220 P127126 Bolt M14x40-8.8...
-
Page 41: Stone Curtain
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.13. Stone curtain Fig 21. Stone curtain Pos. Name Part no. Pcs. ECO 100 P480049 ECO 135 P490049 ECO 150 P500049 Curtain rod... -
Page 42: Bumper
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.14. Bumper Fig 22. Bumper components Pos. Name Part no. Pcs. Bolt M10x25-8.8 (quantity depends on model T000740 2/3/4/4/4/4 100/135/150/180/200/220) Large washer M10 (quantity depends on model... -
Page 43: Body With End Cap
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 7.15. Body with end cap Fig 23. Body with end cap Pos. Name Part no. Pcs. ECO 100 P001679 ECO 135 P001665... -
Page 44: Warranty
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 8. Warranty Warranty card Serial no. Type ……………………… ……………………… Prod. year ……………………… ……………………… Under the warranty, the manufacturer undertakes to repair free of charge physical defects revealed during the warranty period, which is valid for 12 months from the date of sale. - Page 45 TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl RECORD OF WARRANTY REPAIRS Filled by the manufacturer ________________ ________________ The date of the complaint: The date of the complaint: : _________...
-
Page 46: Declaration Of Conformity Ce
TALEX Sp. z o.o. ul. Dworcowa 9c 77-141 Borzytuchom tel.: +48 59 821 13 40 e-mail: biuro@talex-sj.pl www.talex-sj.pl 9. Declaration of conformity CE...
