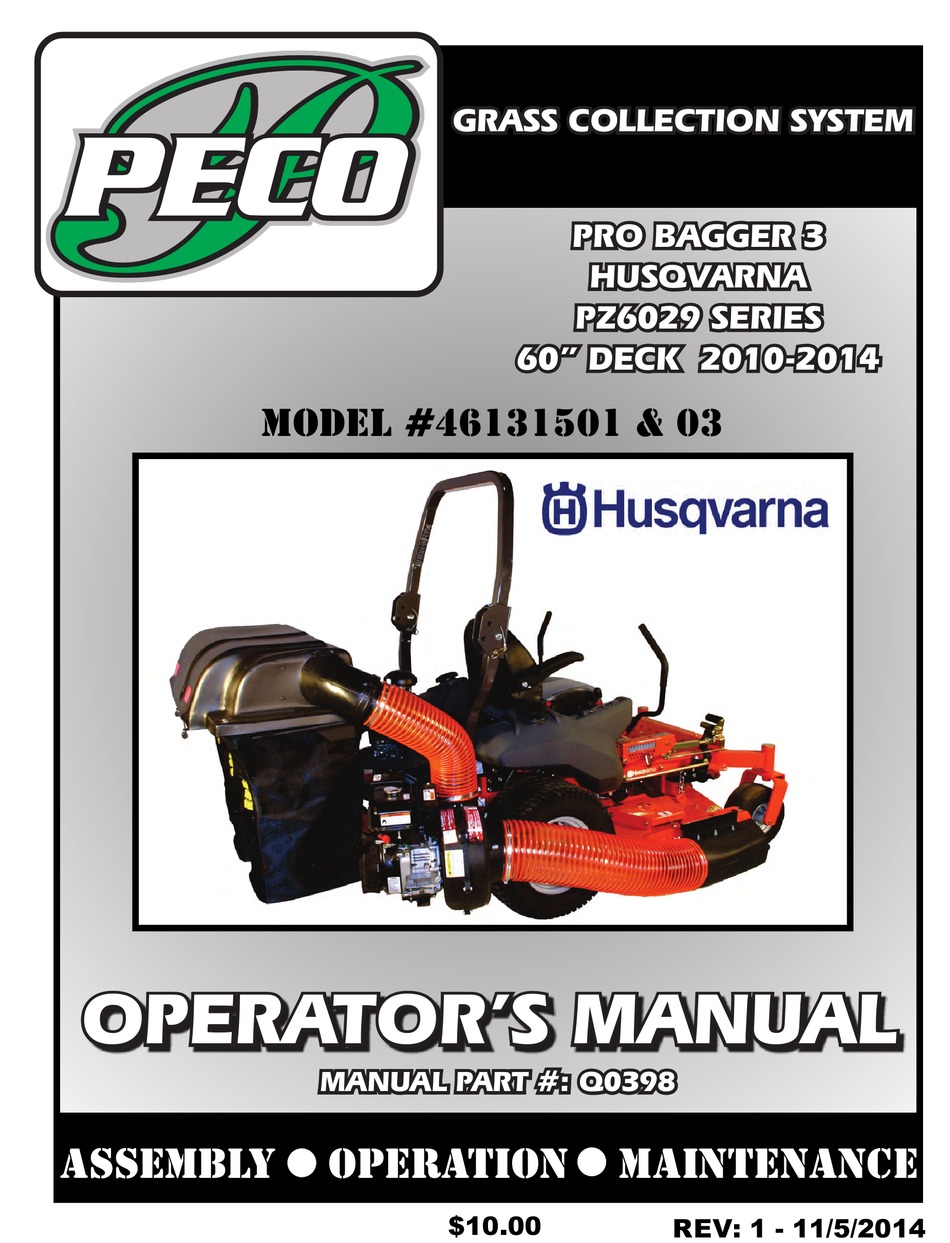

P
P P P
P
PECO
PECO
PECO
PECO
PECO
OPERATOR'S MANUAL
OPERATOR'S MANUAL
ASSEMBLY
MODEL #46131501 & 03
MANUAL PART #: Q0398
MANUAL PART #: Q0398
OPERATION
GRASS COLLECTION SYSTEM
GRASS COLLECTION SYSTEM
PRO BAGGER 3
PRO BAGGER 3
HUSQVARNA
HUSQVARNA
PZ6029 SERIES
PZ6029 SERIES
60" DECK 2010-2014
60" DECK 2010-2014
MAINTENANCE
$10.00
REV: 1 - 11/5/2014
Advertisement
Table of Contents
Related Manuals for Peco GRASS PRO BAGGER 3 HUSQVARNA PZ6029 Series
Summary of Contents for Peco GRASS PRO BAGGER 3 HUSQVARNA PZ6029 Series
- Page 1 P P P GRASS COLLECTION SYSTEM GRASS COLLECTION SYSTEM PECO PECO PECO PECO PECO PRO BAGGER 3 PRO BAGGER 3 HUSQVARNA HUSQVARNA PZ6029 SERIES PZ6029 SERIES 60” DECK 2010-2014 60” DECK 2010-2014 MODEL #46131501 & 03 OPERATOR’S MANUAL OPERATOR’S MANUAL...
-
Page 2: Table Of Contents
RESIDENTIAL BAGGING SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 2-14 Throttle Cable Installation - - - - - - - - - - - - - - - 9 Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3 2-15 Boot To Mower Deck Installation - - - - - - - - - - - 10... -
Page 3: Safety Alert Symbols
SAFETY WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or before the expiration of the original warranty period, whichever is later. -
Page 5: Introduction And Description
Remove and sort all parts for easy identification. Verify all parts against the list on pages 14 and 15. If parts are missing, please contact PECO Inc. at 1 (800) 438-5823. NOTE: Study all drawings and exploded views before starting assembly. -
Page 6: Lower Mount Clamp Bracket Installation
Figure 2-5 (2) 3/8”-16 U-Bolt 2-3 Rear Guard Support Bracket (2) 3/8” Flat Washer Installation (4) 3/8”-16 Nyloc Nut Secure the rear guard support brackets P#(B1869) to the rear guard of the mower using (1) 5/16”-18 x 1” HHCS P#(K1154), (1) 5/16”-18 nyloc nut, and existing hardware (PER BRACKET). -
Page 7: Engine/Blower/Blade Assembly
2-8 Engine/Blower/Blade Assembly 2-10 Top Assembly To Upper Frame Installation Assembly Installation Place the engine/blower/blade assembly onto the engine mount arm assembly. Secure by using (4) 5/16"-18 x 1- Align the pivot brackets of the top assembly P#(A0551) 1/2" HHCS P#(K1157) and (4) 5/16"-18 nyloc nuts to the pivot point on either side of the upper frame P#(K1180) as shown in Figure 2-8. -
Page 8: Blower Cone Installation
2-12 Blower Cone Installation 2-13 Impeller Blade Removal/Replacement To Remove: First remove the 3/8”-16 x 1-1/2” HHCS Thread (1) 5/16”-18 jam nut P#(K0120) onto each end of P#(K1211) (#1), taper lock bushing washer P#(K0278) (2) 5/16”-18 x 2-1/2” HHCS P#(K0125). Now partially (#3) and spacer bushing P#(S3242) (#4) from the taper- thread the bolts into each of the two tabs located on the lock bushing (#5). -
Page 9: Throttle Cable Installation
2-14 Throttle Cable Installation Figure 2-14c To install the throttle cable kit to the ROPS (roll over protection system), place the 3/8” U-Bolt P#(K0136) onto the ROPS with the threads facing the front of the mower. Next slide on the throttle mount plate assembly P#(A0666) with the rivets also facing toward the front of the mower. -
Page 10: Boot To Mower Deck Installation
2-18 Lower Hose Installation 2-15 Boot To Mower Deck Installation Slide a lower hose clamp P#(J1000) onto both ends of Mount the boot plate P#B0581 to the boot P#E1902 the 8” lower hose. Slide one end of the lower hose onto using (3) 3/8”-16 x 1”... -
Page 11: Lower Hose To Boot Installation
2-20 Installation/Removal Of Collection Bags Figure 2-20b Plastic Top To install the bag onto the bag ring, first make sure the bag ring end caps are fastened to the bag ring. Place the seam openings of the bag onto the bag ring openings and turn the bag until the slot bracket in the bag ring is protruding from the opening in the bag (Figure 2-20a). -
Page 12: Operating Instructions
* Remember that horsepower requirements will vary with PECO parts. the mowing conditions such as type and height of turf grass, moisture content, amount of leaves, whether the After Each Use: terrain is flat or sloped, etc. -
Page 13: Parts And Service
If for any reason your Service Center is unable to service your collection system or supply replacement parts, contact PECO and include the following information on the chart below. PECO... - Page 16 Exploded View Of The A0551 - Bagger Assembly (2) K1144 - 5/16”-18 x 1” CARRIAGE BOLT (6) K1142 - 5/16”-18 x 3/4” CARRIAGE BOLT (4) K1010 - 1/4”-20 x 5/8” CARRIAGE BOLT (1) V0002 - PLASTIC TOP (2) K1126 - 1/4”-20 (1 LEFT, 1 RIGHT) FLANGE NUT B0237 - PIVOT...
-
Page 17: Safety Decals
SAFETY DECALS To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R4027 Part #: R1057... - Page 19 NOTES:...
- Page 20 P P P PECO PECO PECO PECO PECO 10 WALDEN DRIVE ARDEN, NORTH CAROLINA 28704 (800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858 EMAIL: peco@lawnvac.com WEBSITE: www.lawnvac.com...
