Erica Synths PICO VCA2 Quick Start Manual

Download this manual

Thank you for purchasing Erica Synths Pico Series module!

With Pico Series we challenged ourselves – can we make ANY superior

functionality synth module 3HP wide and affordable?

Yes, we can.

The Erica Synths Pico VCA2 is compact voltage controlled amplifier module,

based on reliable AS3330 chip. It features two independent channels, and the

first one comes with the manual offset adjustment, useful for full span

vibrato effects. Audio and CV inputs of the first VCA are normalled to the

second one, so the module can also be used as a buffered audio splitter. VCAs

are DC coupled, and they can be used for controlling amplitude of control

voltage signals.

Two independent VCAs with a linear response

Manual bias adjustment on the top VCA

Input normalling

DC coupling

Input protection against overvoltage

Protection against reverse PSU connection

Nominal audio signal level

CV level (full span)

Max attenuation

Power consumption

Module width

Module depth

PICO

VCA2

10Vptp

-5V - +5V

-110dB

+20mA, -19mA

3HP

35mm

Need help?

Do you have a question about the PICO VCA2 and is the answer not in the manual?

Page 1 3HP wide and affordable? Yes, we can. The Erica Synths Pico VCA2 is compact voltage controlled amplifier module, based on reliable AS3330 chip. It features two independent channels, and the first one comes with the manual offset adjustment, useful for full span vibrato effects.

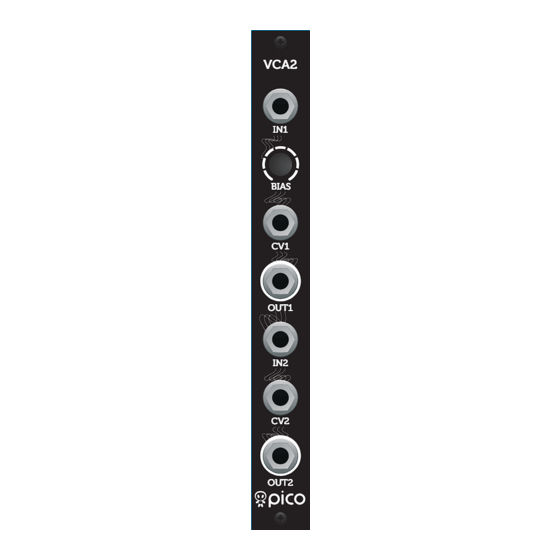

Page 2 PICO VCA2 VCA2 This is the audio input of the first VCA. It’s DC coupled, so, it also will work for controlling an amplitude of the control voltages (LFOs, for example) Adjust the VCA bias manually, meaning – you can offset the CV in order to have desired amplitude modulation range on the output.
Page 3 Erica Synths. Water is lethal for most of the electric devices, unless they are made waterproof. This Erica Synths module is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module.
