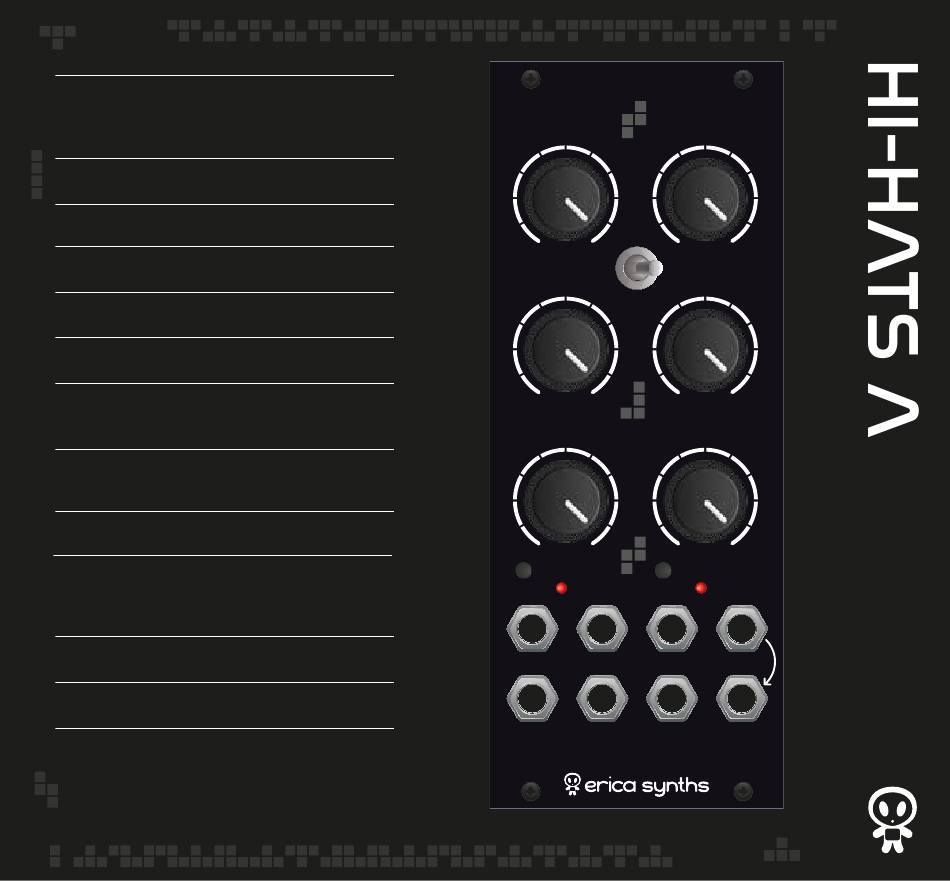

Erica Synths HI-HATS A Manual

Set the master Tone of Hi-Hats. This affects both
Hi-Hats simultaneously, and essentially is the cutoff
control for the VCF after metallic noise generator
This is Tone CV level attenuator
Adjust Closed hat decay time manually
Adjust Open hat decay time manually
This is Closed hat Decay CV level attenuator
This is Open hat Decay CV level attenuator
Use the manual trigger button to check the Hi-Hats
settings and add some beats during live performance
These are Trigger inputs. The LEDs indicate
This is the Accent input. +10V CV will set the Hi-Hats
to the maximum volume, and it affects both Hi-Hats
CH DEC CV, OH DEC CV
These are Decay CV inputs
This is the output of the Closed hat
This is the output of the Open hat. If nothing is patched
in Closed hat output, it is automatically mixed with Open
hat, and you can use one output for both Hi-Hats
TONE
TONE CV
CH DECAY
OH DECAY
CH DECAY CV
OH DECAY CV
CH TRIG, OH TRIG
incoming triggers
TONE CV
This is Tone CV input
ACC
simultaneously
CH OUT
OH OUT
TONE
IND EXCL
CH DECAY OH DECAY
CH DECAY CV OH DECAY CV
CH TRIG TONE CV
CH DE C CV
ACC
OH TRIG OH DEC CV OH
HI-HATS A
TONE CV
OUT
CH
OUT
