If you are reading this, most probably, you are about to build Erica
Synths DIY Polivoks VCF. This module is 30mm deep, skiff friendly,
has solid mechanical construction and doesn't require wiring.
Polivoks VCF is famous for its' crazy resonance sweeps and deep,
bassy sound which makes it ideal for acid basslines. We believe,
this is one of most is one of most authentic sounding famous
Russian synth Polivoks VCF emulations available. The original
Russian ICs K140UD12 are used in the sound circuit. We did several
updates to adapt the VCF for contemporary modular synth
demands. Independently buffered inputs, extended Cutoff knob
range, eliminated clicks, when switching filter modes, and output
stage added to eliminate signal inversion.
The DIY Polivoks VCF kit comes in three versions:
1) PCB + 2xK140UD12 ICs,
2) PCB + 2xK140UD12 ICs + panel,
3) Full kit.
FEATURES:
• Switchable BP/LP modes
• Inputs/outputs are protected against over-voltage
• Protection on reversed power supply
• Skiff friendly design
SPECIFICATIONS:
• Input level
• CV input level
• Filter modes
• Module width
• Module depth
• Power consumption
GUIDE TO ASSEMBLY OF ERICA SYNTHS POLIVOKS VCF
up to 20Vptp
-10V - +10V
BP(6dB/oct)/LP(12dB/oct)
10HP
30mm
11mA@+12V, 11mA@-12V

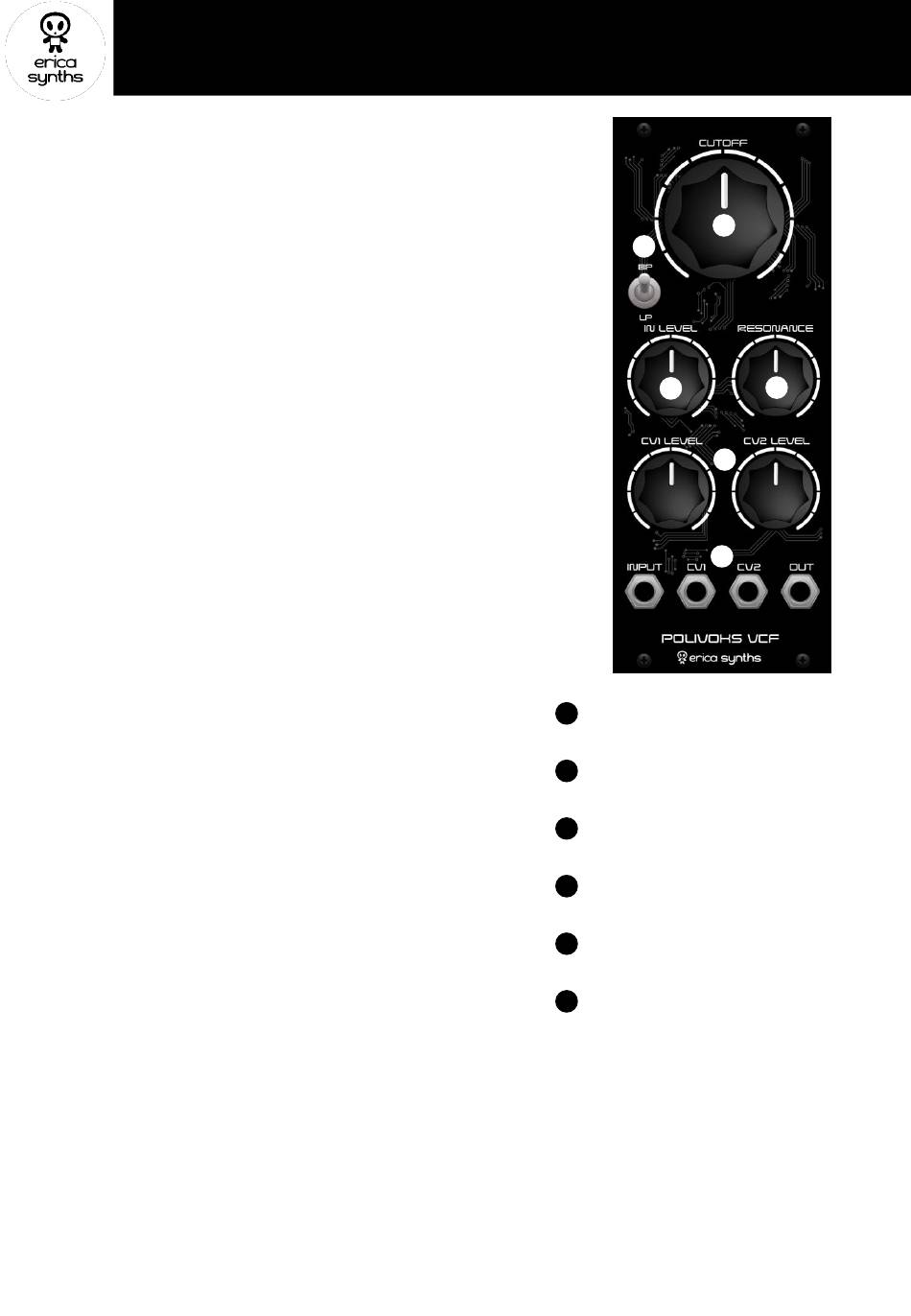

1
2
3
5
6
Big knob makes a difference! This is a filter
1
cutoff frequency control.
Switch between lowpass and bandpass filter
2
modes!
Adjust input signal level with this knob!
3
Polivoks VCF is famous for its crazy resonance
sweeps and self oscillation. Use this knob with
4
responsibly!
.
5
Adjust cutoff CV levels!
6
These are inputs and outputs – no mystery here.
4
Advertisement
Table of Contents
Related Manuals for Erica Synths POLIVOKS VCF
Summary of Contents for Erica Synths POLIVOKS VCF
- Page 1 GUIDE TO ASSEMBLY OF ERICA SYNTHS POLIVOKS VCF If you are reading this, most probably, you are about to build Erica Synths DIY Polivoks VCF. This module is 30mm deep, skiff friendly, has solid mechanical construction and doesn’t require wiring.
- Page 2 GUIDE TO ASSEMBLY OF ERICA SYNTHS POLIVOKS VCF ASSEMBLY Take precautions with regard to electrostatic discharge (ESD) safety. Handling components should be done in electrostatically safe environment. Use personal and workplace grounding. Any discharge (even a minor one) from body to a component may permanently damage it.
- Page 3 GUIDE TO ASSEMBLY OF ERICA SYNTHS POLIVOKS VCF Solder PSU connector! Turn the PCB around and solder potentiometers, jacks and mode switch! Install the front panel, use jack and potentiometer nuts Congratulations! You have completed the to tighten it. Install potentiometer knobs! assembly of Erica Synths DIY Polivoks VCF.
