If you are reading this, most probably, you are about to build Erica
Synths DIY Output module. This module is 35mm deep, skiff
friendly, has solid mechanical construction and doesn't require
wiring. Output module allows you to interface your modular synth
with external gear – mixers or other synths with commonly used
3,5mm stereo jack, as well as it has high quality headphones
preamp for monitoring your modular masterpieces. The module
has L and R inputs, if you make stereo patches, but for mono
patches R input is normaled to L input, so you automatically route
the output to stereo mixer.
The DIY Output kit comes in three versions:
1) Set of 2 PCBs with presoldered headphones preamp chip +
mechanical parts (PCB connectors, spacer, 3,5mm stereo jacks),
2) Set of 2 PCBs with presoldered headphones preamp chip+
mechanical parts + panel,
3) Full kit.
FEATURES:
• L and R inputs
• 3,5mm stereo output jack
• 3,5mm headphones jack
• Headphones volume adjustment
• Skiff-friendly design
SPECIFICATIONS:
• Audio output amplitude
• Panel width
• Module depth
• Power consumption
GUIDE TO ASSEMBLY OF ERICA SYNTHS OUTPUT MODULE
line level (optionally adjustable)
6HP
35mm
20mA@+12V, 7mA@-12V
1
2
3
4

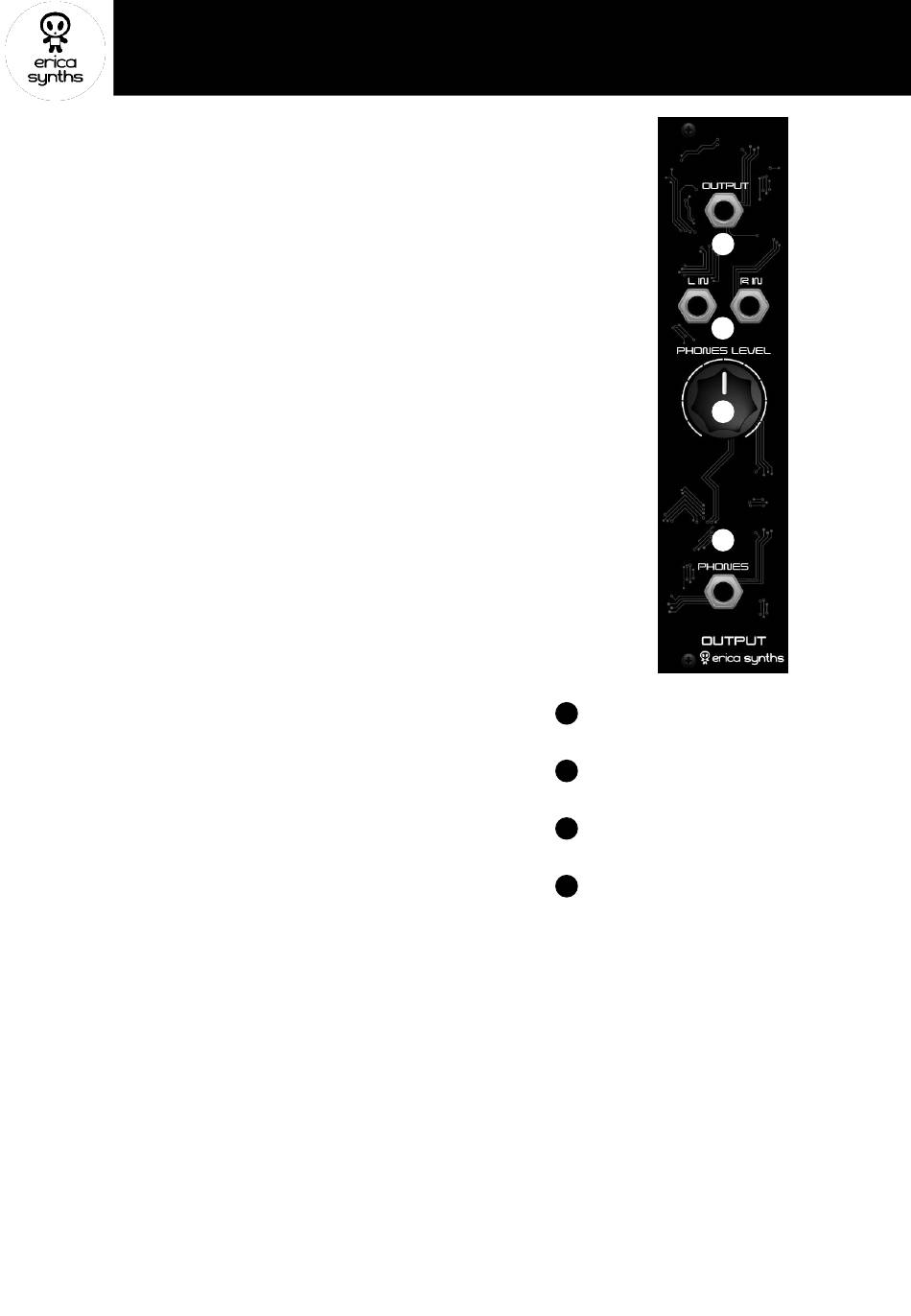

1
This is 3,5mm stereo output jack
These are L and R inputs. R is normaled to L, so
2
for mono patches use L only!
3
Adjust headphones volume!
4
This is 3,5mm stereo headphone output!
Advertisement
Table of Contents
Related Manuals for Erica Synths OUTPUT
Summary of Contents for Erica Synths OUTPUT
- Page 1 GUIDE TO ASSEMBLY OF ERICA SYNTHS OUTPUT MODULE If you are reading this, most probably, you are about to build Erica Synths DIY Output module. This module is 35mm deep, skiff friendly, has solid mechanical construction and doesn’t require wiring. Output module allows you to interface your modular synth with external gear –...
- Page 2 GUIDE TO ASSEMBLY OF ERICA SYNTHS OUTPUT MODULE ASSEMBLY Take precautions with regard to electrostatic discharge (ESD) safety. Handling components should be done in electrostatically safe environment. Use personal and workplace grounding. Any discharge (even a minor one) from body to a component may permanently damage it.
- Page 3 GUIDE TO ASSEMBLY OF ERICA SYNTHS OUTPUT MODULE Solder capacitors, voltage regulator, ferrite beads, Turn Controls board around and solder female stereo potentiometer and mono jacks on the connectors, PSU connector, electrolytic capacitors Controls board! Do not solder stereo jacks! and resettable fuses! Capacitors and fuses must be placed horizontally! Also install 11mm spacer.
