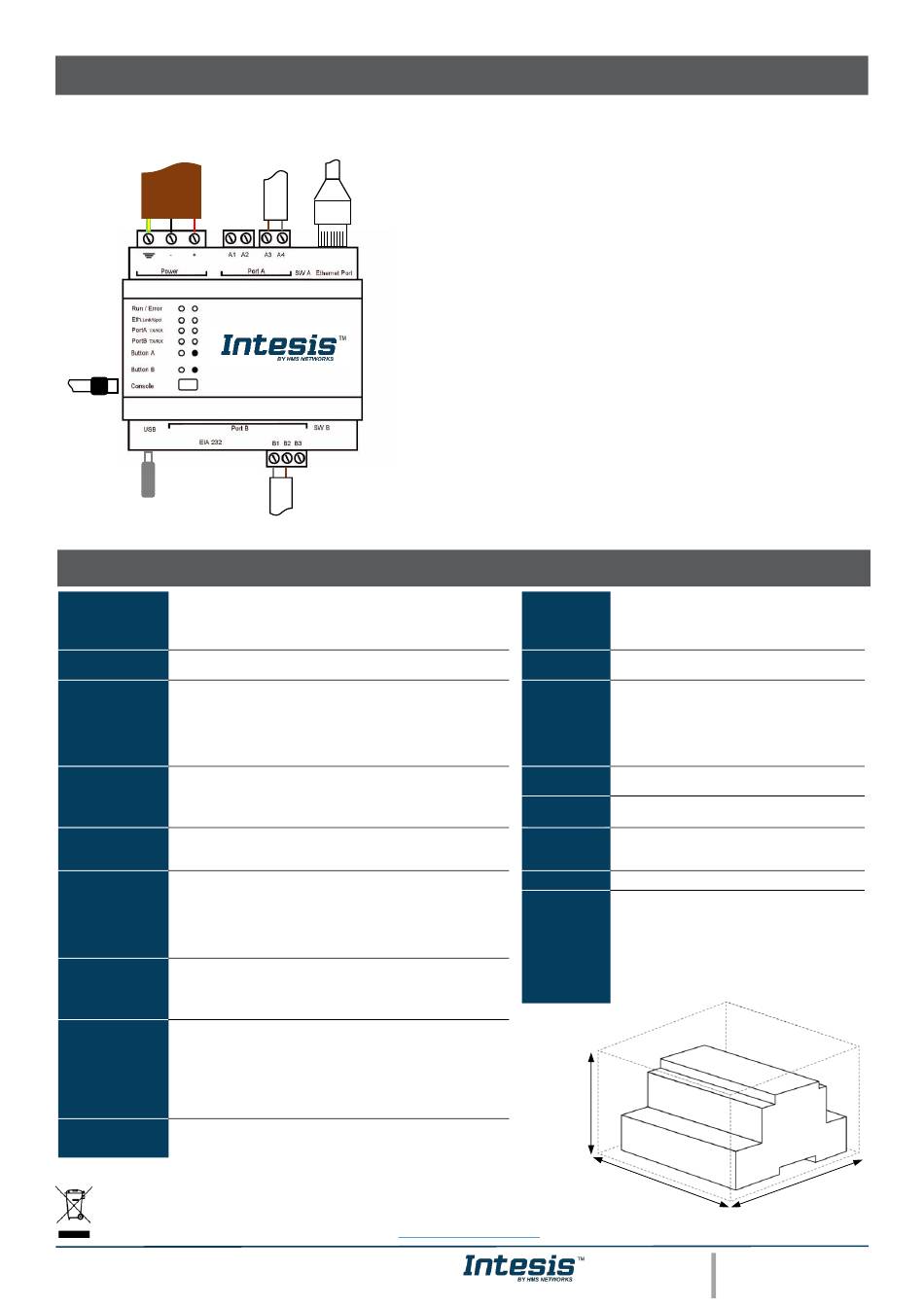

HMS Networks Intesis INBACDAL1280200 Installation Sheet page 2

CONNECTIONS
Power Supply
Console
Port
USB
storage
ELECTRICAL & MECHANICAL FEATURES
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
2 cores: 0.5mm
low-voltage signals)
3 cores: not permitted
If cables are more than 3.05 meters long, Class 2 cable is required.
1 x Plug-in screw terminal block (3 poles)
Power Positive, Negative, Earth
24VDC +/-10%
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x DALI port (Plug-in screw terminal block orange 2 poles)
1500VDC isolation from other ports
DALI guaranteed power: 235mA
Port A
Voltage rating: 16VDC
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for serial EIA485 configuration:
Switch A
Reserved for future use
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Reserved for future use
1 x Serial EIA485 Plug-in screw terminal block (3 poles)
PORT B
DALI guaranteed power: 235mA
Voltage rating: 16VDC
1500VDC isolation from other ports
(except PORT B: EIA232)
1 x DIP-Switch for serial EIA485 configuration:
Switch B
Reserved for future use
(SWB)
This marking on the product, accessories, packaging or literature (manual) indicates that the product contains electronic
parts and they must be properly disposed of by following the instructions at
Rev.1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
Ethernet
Power Supply
BACnet IP
DALI #1
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply. Respect polarity applied
of terminals (+) and (-). Be sure the voltage applied is within the range admitted (check table below). The power
supply can be connected to earth but only through the negative terminal, never through the positive terminal.
Ethernet / BACnet IP (UDP) / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet CAT5
cable. If communicating through the LAN of the building, contact the network administrator and make sure traffic
on the port used is allowed through all the LAN path (check the gateway user manual for more information). With
factory settings, after powering up the gateway, DHCP will be enabled for 30 seconds. After that time, if no IP is
provided by a DHCP server, the default IP 192.168.100.246 will be set.
PortA / DALI #1
Connect the DALI bus to connectors A4 (+), A3 (-) of gateway's PortA. The Intesis gateway provides
16VDC (+/-2%) DALI voltage to the bus.
PortB / DALI #2
Connect the DALI bus to connectors B2 (+), B1 (-) of gateway's PortB. The Intesis gateway provides
16VDC (+/-2%) DALI voltage to the bus.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user
manual for more information.
USB
Connect a USB storage device (not a HDD) if required. Check the user manual for more information.
DALI #2
w h): 90x88x56 mm
x x
w h): 130x100x100mm
x x
... 2.5mm
2 2
... 1.5mm
2 2
https://intesis.com/weee-regulation
Size: Coin 20mm x 3.2mm
Battery
Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Mini Type-B USB 2.0 compliant
Console Port
1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device
USB port
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Button A: Check the user manual
Push Button
Button B: Check the user manual
Operation
0°C to +60°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection IP20 (IEC60529)
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
LED
2 x Port A TX/RX
Indicators
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
100 mm (h)
100 mm (w)
URL
130 mm (d)
https://www.intesis.com
2 / 2
