Paxton PROXIMITY Ins-30040 Quick Start Manual

Architectural reader

Advertisement

Quick Links

14/03/2011
Ins-30040 PROXIMITY architectural reader
Technical Support
01273 811011
Technical help is available:
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

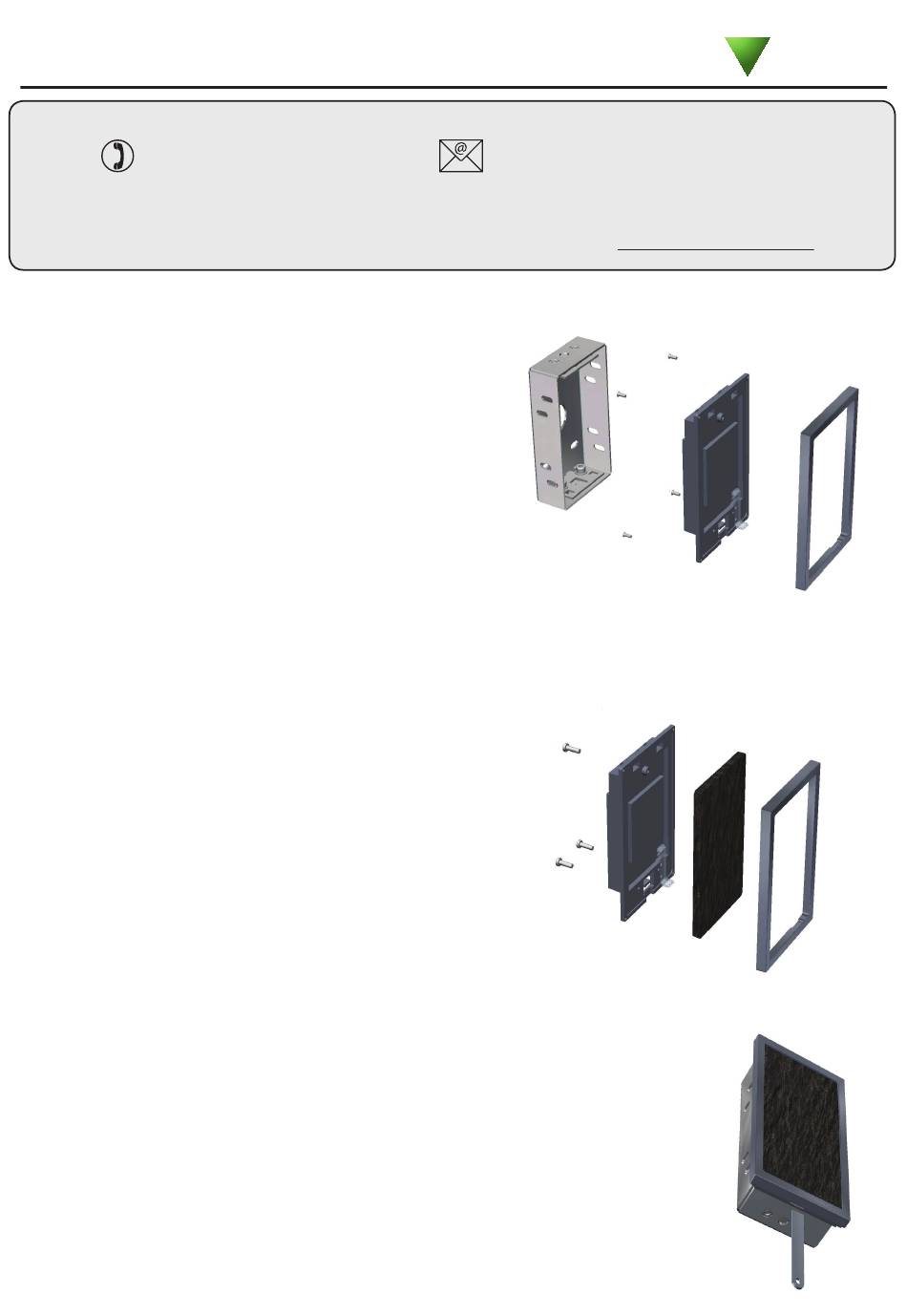

Fitting
Ensure that the backbox is mounted vertically and is
square with the wall surface.
Care must be taken when doing this, as no further 'twist'
adjustment is possible within the reader mountings.
Reader insert
The reader insert is held against the backplate by an outer
decorative bezel secured with 4 small screws. Remove these
screws to release the bezel and refit after adding the insert.
If you have made an insert of less than 5 mm thick, this can
still be fitted by using the 3 nylon screws supplied in the
fitting kit to hold the insert against the bezel. (see diagram)
Mounting the reader
Line up the two locating pins on the top of the
reader with the top plate inside the backbox.
Once located, the reader can be clipped into the
box at the bottom using the clip feature.
Check that the reader is located against the
surface of the wall. If there is a gap between
the reader and the wall, or if the reader will
not successfully clip into the box, remove the
reader and adjust the mounting plates inside the
backbox using a 3 mm Allen key.
support@paxton.co.uk
Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
Removing the reader
To remove the reader, insert the
tool provided into the cut out
on the underside of the reader.
Push up the clip and pull the
reader from the backbox.
Paxton

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROXIMITY Ins-30040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paxton PROXIMITY Ins-30040

  • Page 1 Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/ Fitting Ensure that the backbox is mounted vertically and is square with the wall surface.
  • Page 2 Wiring Connection to a control unit reader port WHITE labelled control units provide 5V at the Red terminal. The Red power wire for the reader should therefore be directly connected to the 12V supply terminal. IMPORTANT: This reader cannot be connected in parallel with other readers and keypads.
  • Page 3 Technical Help Here is the list of topics about this product that receive the most technical support enquiries. We list them here to help you speed up the installation and trouble shooting process. 1 - Readers/Keypads not working. Q- Software settings - Confirm that the settings of the reader or keypad are correct. Q- Connections - Check the wiring and integrity of the connectors.
  • Page 4 Read Range Hands Free Token Token 40 mm 25 mm 400 mm The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596 Contents in box PROXIMITY architectural reader Backbox assembly Reader insert diagram Instruction set Fitting kit...
