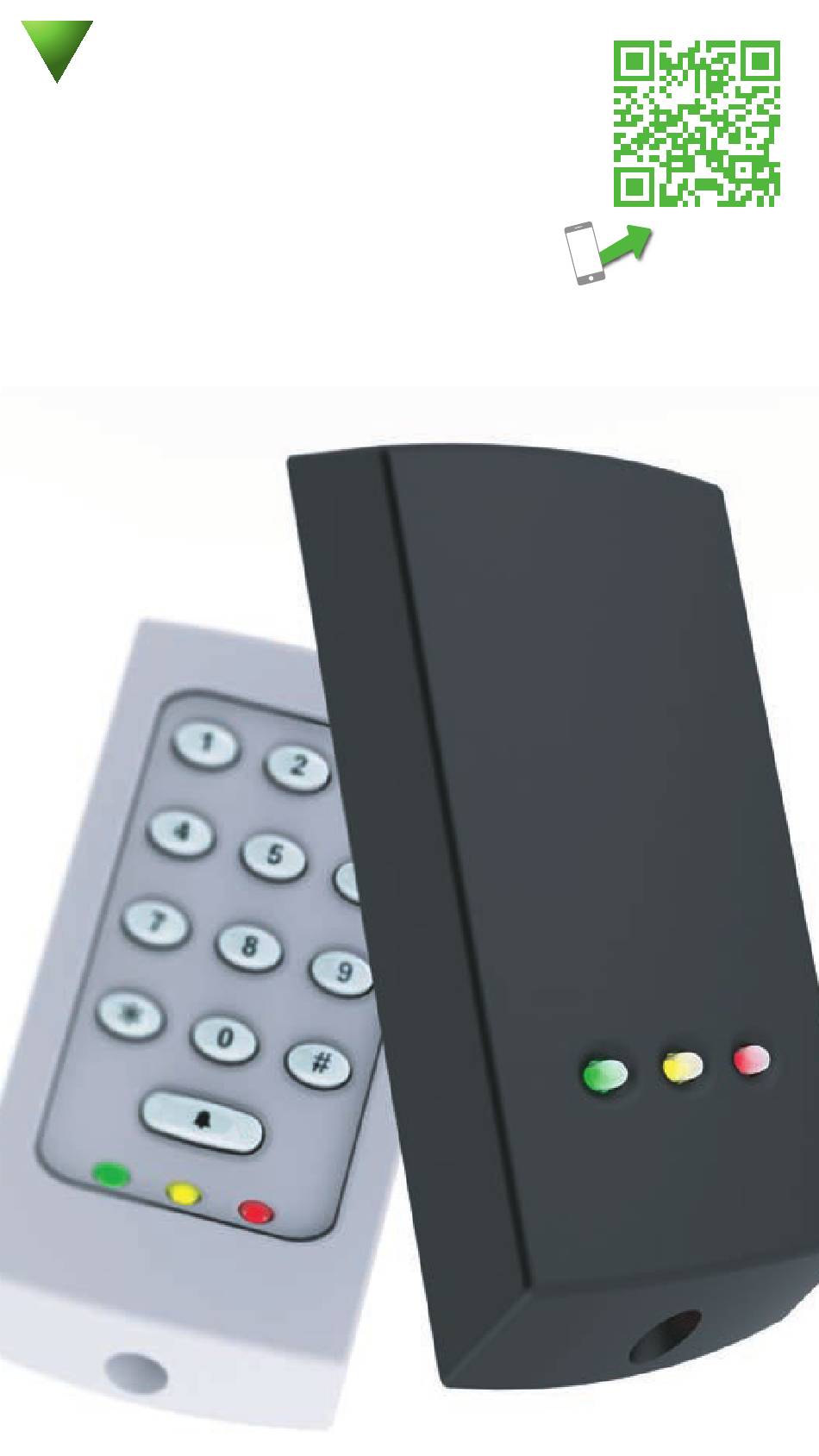

- Page 1 Paxton ins-20800 Proximity readers and Keypads...
- Page 2 Mounting...
- Page 3 Wiring Installation guidelines • Readers should be mounted a minimum of 300mm/12” apart and not back to back. • All Proximity (P) and and keypad proximity (KP) readers should not be mounted on metal surfaces. • Screw connector option - The unit should be mounted in conjunction with an electrical backbox to achieve the required clearance for the connector.
-
Page 4: Technical Help
310-750-US If a 75 series backbox adaptor kit (310-750-US) is fitted, the mountings on a backbox can also be used. Technical Help 1 - Readers/Keypads not working. • Software settings - Confirm that the settings of the reader or keypad are correct. •... - Page 5 • User token - Confirm that the user token used for testing is OK by presenting it to a known working reader. • Interference - Confirm whether the reader works when tested ‘in hand’ and not mounted on the wall. •...
-
Page 6: Specifications
Specifications Current 130mA 180mA 120mA 120mA 130mA 130mA @ 12V DC Handsfree compatible Waterproof Mounted on metal surface Operating -35°C - +66°C -31°F - +151°F temperature http://paxton.info/1606... - Page 7 +44 (0)1273 811011 +1(800) 672-7298 support@paxton.co.uk supportUS@paxton-access.com paxton.support usapaxton.support +31 (0)76 3333 999 +49 (0) 251 2080 6900 support@paxton-benelux.com support@paxton-gmbh.de paxton.gmbh.support paxton.benelux.support +27 (0) 272 14276691 +33 (0)157 329356 support@paxtonaccess.co.za support@paxtonaccess.fr paxton.support paxton.support +1 (864) 751-3501 8000 3570 3783 soporte@paxton-access.com support@paxtonaccess.ae...
- Page 8 The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596 These products are not suitable for retail sale. All warranties are invalid if these products are not installed by a competent person. North America:- Product compliance and limitations To comply as a UL listed installation, the following conditions must apply:- •...
- Page 9 Conformité et limitations du produit Pour que l’installation répond aux normes UL, les conditions suivantes sont applicables:- • Les fonctions serveur (Antipassback, Pointage, etc.) n’ont pas été évalué par l’UL et ne peuvent pas être utilisé pour les installations UL294. •...
- Page 12 Made in the UK © Paxton Ltd 1.0.0 09/06/2017...
