Paxton PROXIMITY P50 User Manual

Door entry system

Advertisement

PROXIMITY P50
Compact Kit
24/04/07
Ins-30047

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROXIMITY P50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paxton PROXIMITY P50

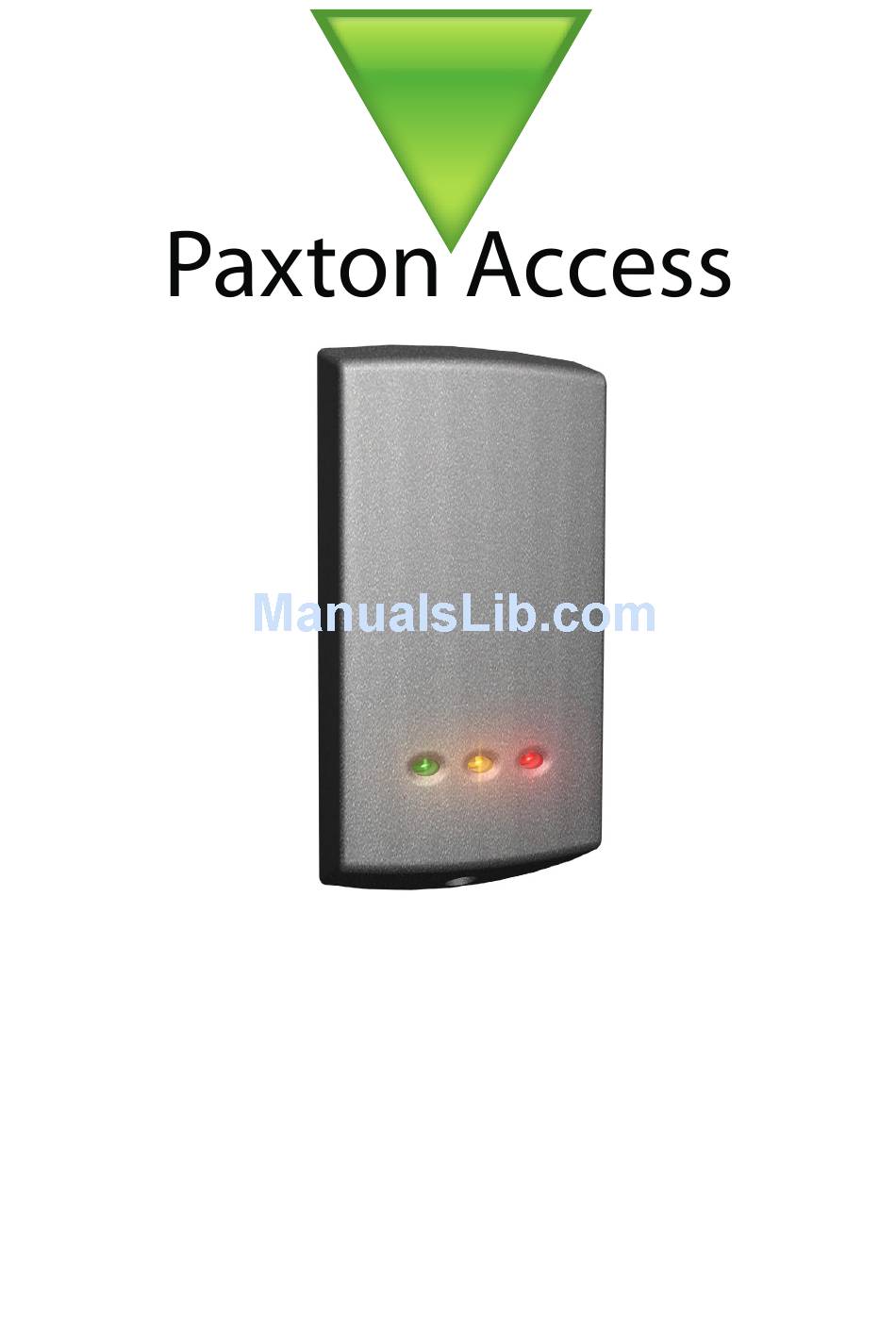

  • Page 1 PROXIMITY P50 Compact Kit 24/04/07 Ins-30047...
  • Page 2 Important information Please read the following notes before installing: Electrical shock from voltages used in this system can cause injury or death. Prior to making any electrical connections, or performing maintenance and repair, ensure power is removed. Mains electrical connections should be made only by qualified personel in accordance with local regulation.
  • Page 3 System installation Thank you for purchasing the Proximity kit. In the kit you will find the following items. If you find that any of the parts are missing or damaged, please notify your supplier. Other Items Required Fail open or fail closed lock ‘Push to make’...
  • Page 4 Fitting the kit Step 1: Carefully mark out the three mounting holes for the reader and the hole of the cable feed. Step 2: Drill the marked holes for the mounting points and the cable feed. When drilling the holes, ensure that you are aware of any step hidden cables or pipes.
  • Page 5 Wiring Information Black 0v power supply wire 12v power supply wire Blue/Mauve Exit button wires Green 0v lock wire Yellow 12v lock wire The lock and power wires must be connected to the correct polarity, otherwise the system could be damaged. Step 1: Mark the mounting points for the power supply.
  • Page 6 Programming the system Adding the card pack 1. Take the enrolment card from the box of cards. 2. Present the enrolment card to the reader. 3. The reader beeps and the LED’s become lit as the enrolment card is acknowledged. 4.
  • Page 7 Unbarring user cards 1. If a user finds their token after it has been barred, it can be added back onto the system. 2. Take the enrolment card from the card box. 3. Present the enrolment card to the reader. The amber LED starts flashing 4.
  • Page 8 For problems with installation or operation of the kit, please contact Paxton Access technical support on: +44(0)845 8381716 support@paxton.co.uk Technical help is available: Monday - Friday from 07:00 - 01:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Other documentation on proximity systems can be found on our web site - http://www.paxton.co.uk/...
