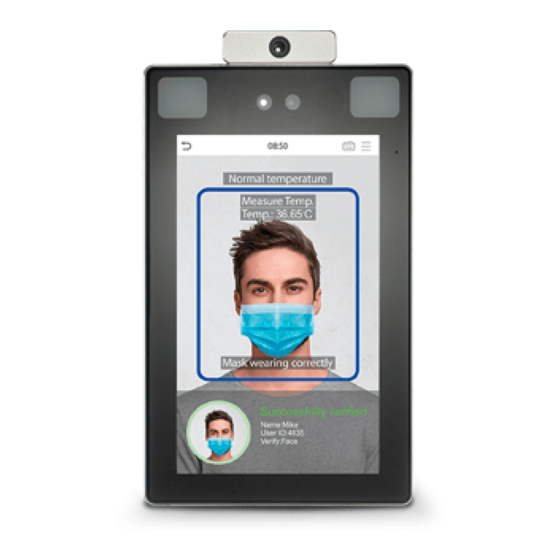

ZKTeco SpeedFace Reader - SF1008+ & SF1005-V+
Overview
The SpeedFace reader can be used with Net2 to permit or
deny access based on the user's temperature. When a tem-
perature is detected outside of the set threshold the reader
will notify the user that there is an abnormal temperature
and deny access.
This application note will run through the following modes
of operation:
Temp only
Token (MIFARE® only) + Temp
Face + Temp
Setting up Temp only mode
Out of the box, the SpeedFace reader will detect a face, determine the temperature and providing it is
below the set threshold, permit access by firing the relay on the reader.
Using this method, the SpeedFace reader relay can be wired in line with a Paxton reader on the Yellow
data port. This will prevent the Paxton reader from functioning until the user has passed the tempera-
ture check.
The default door lock delay on the SpeedFace reader is 5 seconds. To allow sufficient time for the user to
present their token to the Paxton reader, you may wish to increase this via the menu on the SpeedFace
reader.
*Allow unregistered access must be enabled in the SpeedFace reader for temperature only to work
properly.
NO
NC
COM
3rd Party
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZKTeco SpeedFace Reader SF1008+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paxton ZKTeco SpeedFace Reader SF1008+

  • Page 1 Using this method, the SpeedFace reader relay can be wired in line with a Paxton reader on the Yellow data port. This will prevent the Paxton reader from functioning until the user has passed the tempera- ture check.
  • Page 2 3rd Party Setting up modes: Token + Temp & Face + Temp Connecting the reader to a Net2 Plus controller There are two other main modes of operation; Token + Temp and Face + Temp. In both cases the Speed- Face reader should be wired to the Net2 plus as shown in the diagram below: ZKteco ACU terminal...
  • Page 3 High temperature events cannot be sent from the SPEEDFACE reader to Net2 • Temperature tolerance may need to be changed Link to manufacturers website: https://zktecousa.com/products/sf1008-plus-sf1005-v-plus/ +44 (0)1273 811011 +49 (0) 251 2080 6900 +33 (0)157 329356 support@paxton-gmbh.de support@paxtonaccess.fr support@paxton.co.uk paxton.gmbh.support paxton.support paxton.support +32 (0)78485147 +31 (0)76 3333 999 +27 (0)21 4276691 support@paxton-benelux.com...

This manual is also suitable for:

Zkteco speedface reader sf1005-v+
