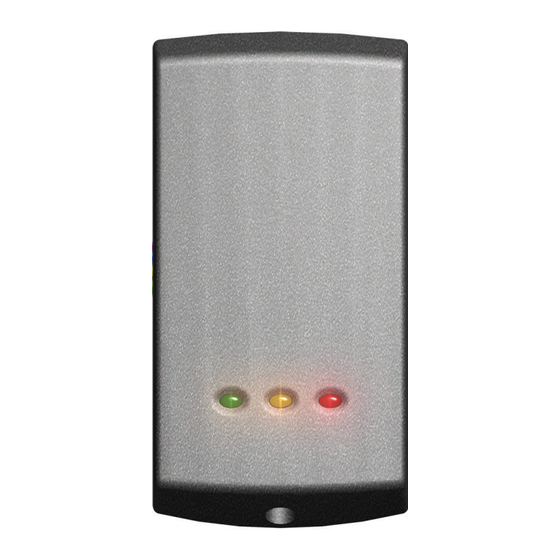

Ins-30047 PROXIMITY P50 compact kit
Technical Support
01273 811011
support@paxton.co.uk
Technical help is available:
Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/
Suitability
Security-sensitive doors
Wet environments
300 mm
Mounted on metal surface
Readers mounted together
between readers

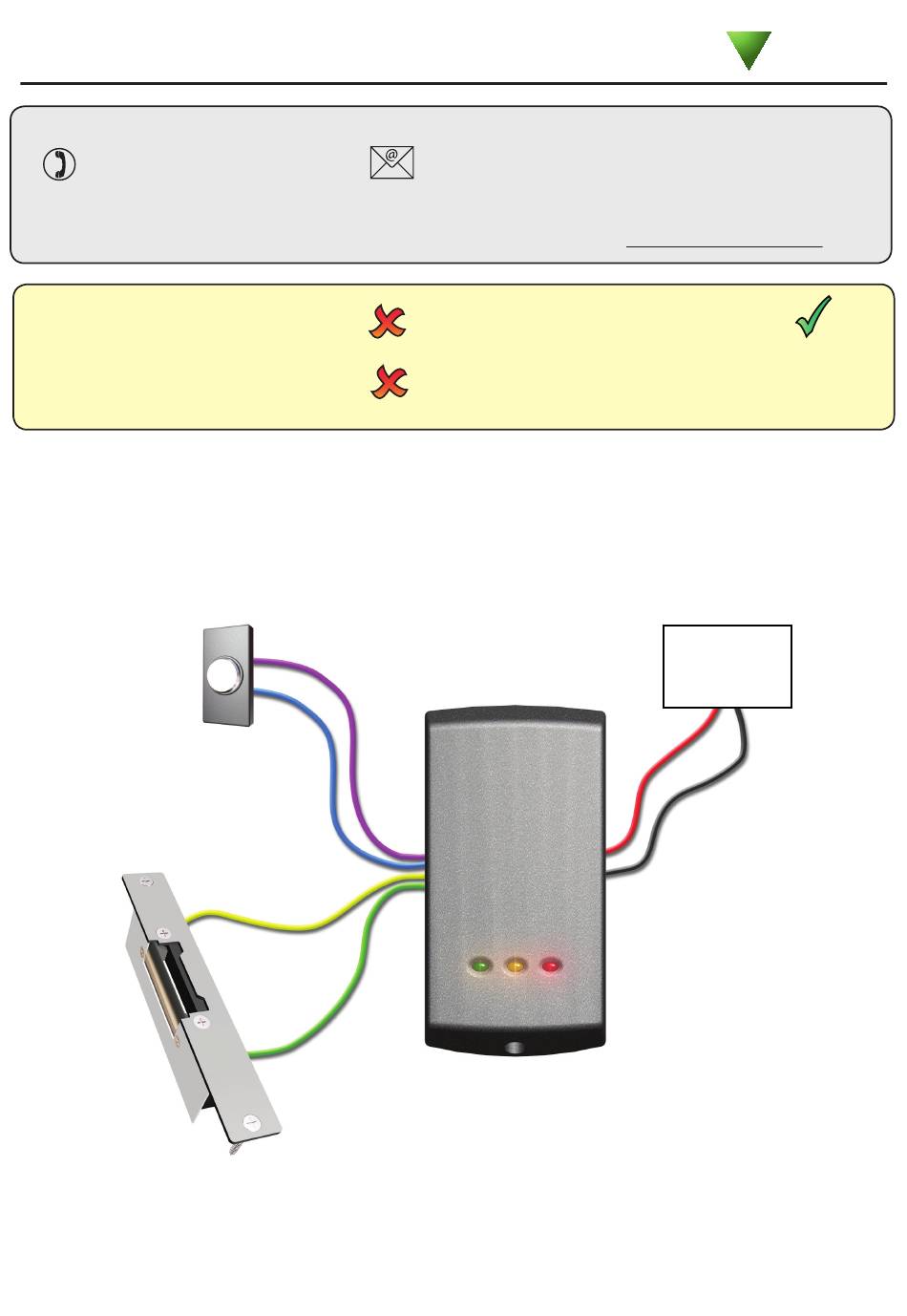

Fitting the kit
Exit
To 12V DC
power supply
0V
0V
+12V
Exit button
(push to make)
+12V
0V
12V DC release current rating must be less than 1A.
Electric release

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROXIMITY P50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paxton PROXIMITY P50

Summary of Contents for Paxton PROXIMITY P50

  • Page 1 01273 811011 support@paxton.co.uk Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/ Suitability Security-sensitive doors Wet environments 300 mm...

  • Page 2: Installation

    Installation Fitting the reader Step 1: Carefully mark out the mounting holes for the reader and the hole of the cable feed. Step 2: Drill the marked holes for the mounting points and the cable feed. When drilling the holes, ensure that you are aware of any hidden cables or pipes.

  • Page 3: Programming The System

    Programming the system Adding the card pack 1. Take the enrolment card from the box of cards. 2. Present the enrolment card to the reader. 3. The reader beeps and the LED's light up as the enrolment card is acknowledged. 4.
  • Page 4 2. Wait for the required period 3. Present this card again, the beeping will stop Paxton Access 1. Take the door open time card from the card box. 2. Present the card to the reader. The reader will commence beeping once a second.
  • Page 5 Present this card to silence the beeping noises made by the reader. Present this card again to re-enable the beeping noises Paxton Access 1. Take the silent operation card from the card box. 2. Present the card to the reader. The reader give a single beep.
