Paxton Genie WIP2FRTMTP Quick Start Manual

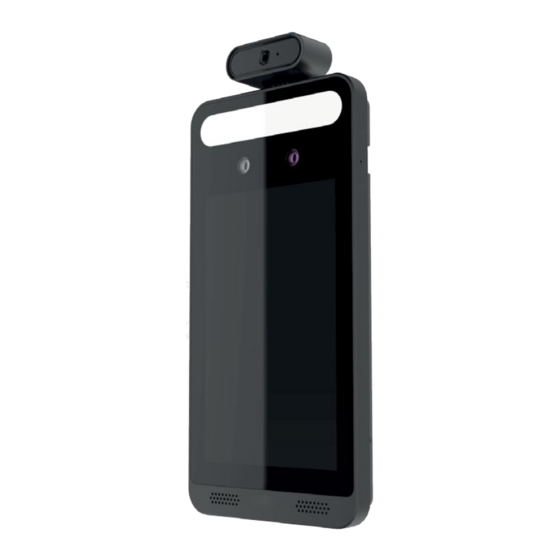

Genie WIP2FRTMTP
Overview
The Genie reader can be used with Net2 to permit or deny
access based on the user's temperature and if required
force the user to wear a facemask. When a temperature is
detected outside of the set threshold the reader will notify
the user that there is an abnormal temperature and deny
access.
This application note will run through the following modes
of operation:
• Temp/ Mask only
• Token (MIFARE® only) + Temp
• Face + Temp
Setting up Temp only mode
Out of the box, the Genie reader will permit access by firing the lock relay on the reader when it
identifies a face record or a password is entered allowing access. To setup for Temp only mode
see notes below for setting that need to be changed in the Genie reader menu.
Using this method, the Genie reader relay can be wired in line with a Paxton reader on the Yellow data
port. This will prevent the Paxton reader from functioning until the user has passed the temperature
check.
The default door lock delay on the Genie reader is 3 seconds. To allow sufficient time for the user to
present their token to the Paxton reader, you may wish to increase this via the menu on the Genie
reader.
NO
NC
COM
3rd Party
