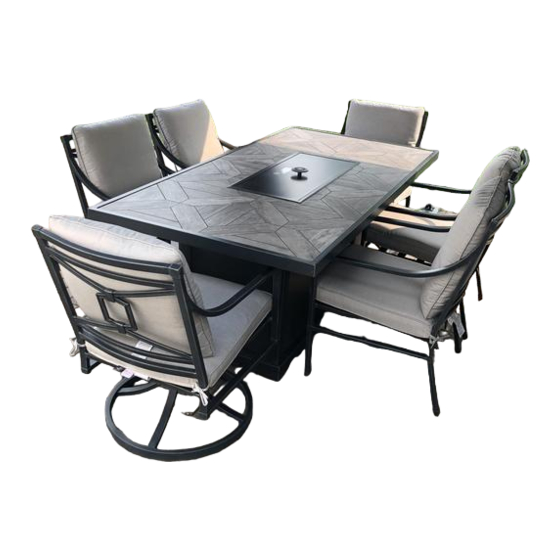

Member's Mark Gracyn FZA10218ST-A Assembly Instructions Manual

7pc fire pit dinning set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

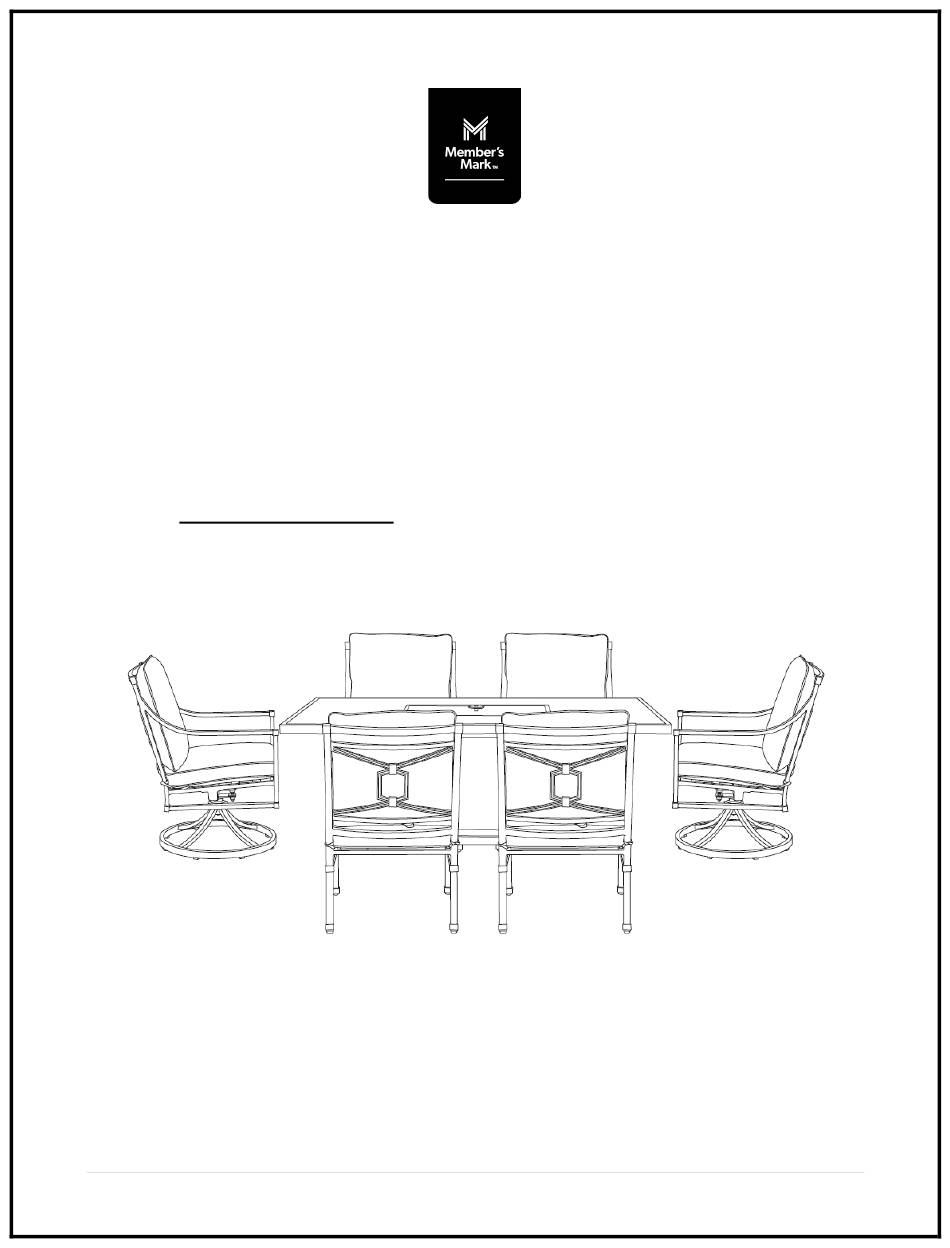

Assembly Instructions & User's Manual
for
Member's Mark Gracyn 7pc Fire Pit Dinning
Set
Item Number: TBD
Model Number: FZA10218ST-A
Customer Assistance
: 1-888-690-9800
(spare/replacement parts)
or Email: cs@sunvillahome.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gracyn FZA10218ST-A and is the answer not in the manual?

Questions and answers

Related Manuals for Member's Mark Gracyn FZA10218ST-A

Summary of Contents for Member's Mark Gracyn FZA10218ST-A

  • Page 1 Assembly Instructions & User’s Manual Member’s Mark Gracyn 7pc Fire Pit Dinning Item Number: TBD Model Number: FZA10218ST-A Customer Assistance : 1-888-690-9800 (spare/replacement parts) or Email: cs@sunvillahome.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...

  • Page 2: Table Of Contents

    Table of Contents Warning & Danger ........................3 ..................................4 Quality Statement ............................. 7 Important Safety Information ........................ 7 Before Assembly ............................7 Care & Use ..............................7 Package Contents ............................ 8 Product Information ..........................9 Components .............................. 9 Hardware ..............................10 Tools ................................

  • Page 3: Warning & Danger

    Warning & Danger Model# FHTA10790 Fire Pit Installer: Leave this manual with appliance. Consumer: Retain this manual for future reference. This appliance is a Decorative Gas DANGER Appliance for OUTDOOR USE ONLY and MUST NOT be used for cooking. FIRE OR EXPLOSION HAZARD If you smell gas: WARNING If the information in...
  • Page 4 WARNING WARNING Improper installation, adjustment, HOT! DO NOT TOUCH SEVERE alteration, service, or maintenance BURNS MAY RESULT. CLOTHING can cause injury or property IGNITION MAY RESULT. damage. Read the installation and Glass and other surfaces are hot maintenance instructions during operation and cool-down thoroughly before installing or ●...
  • Page 5 A. Design and Installation Considerations WARNING Place the Fire Pit on a flat and stable surface in an Do NOT use this appliance if any part of it has outdoor location adjacent to the gas supply line or been under water. LP gas supply cylinder.
  • Page 6 WARNINGS Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners and circulating air passageways of the appliance are kept clean. *Do not use this fire pit for cooking.

  • Page 7: Quality Statement

    Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.

  • Page 8: Package Contents

    Package Contents Component Description Quantity Component Description Quantity Chair Frame Fire Pit Base Chair Base Chair Seat Cushion Glass Beads Chair Back Cushion Chair Frame Fire Pit Top Furniture Cover WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.

  • Page 9: Product Information

    Product Information Dimensions: 2pc swivel chair: 28.9''Dx22.6''Wx36''H (73.5cm x 57.5cm x 91.5cm) 4pc stationary chair: 28.9''Dx22.6''Wx36''H (73.5cm x 57.5cm x 91.5cm) 1pc fire pit: 79.9''Dx39.9''Wx29.9''H (203cm x 101.5cm x 76cm) Weight Capacity: Chair: Supports up to 250 lbs. (113.4kg.) Components Chair Frame Chair Base Chair Seat Cushion...

  • Page 10: Hardware

    Hardware M8x45/Φ16x1.6 Bot Washer Plate Spring Washer/Φ8xΦ13x2.0 Qty: 8 (4 per chair) Qty: 8 (4 per chair) Qty: 8 (4 per chair) Nut M8 M8x20 Bolt/Φ24x2.0 AAA Battery Qty: 8 (4 per chair) Qty: 4 Qty: 1 Tools Wrench (Included) Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e...

  • Page 11: Step 1 - Step 17

    Step 1 – Step 17 Step 1 Step 2 Step 3 Step 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp 11 | P a g e...
  • Page 12 Step 5 Step 6 Step 7 Note: Clamp the hose when not in use. 12 | P a g e...
  • Page 13 Step 8 Step 9 Please recycle old battery properly as hazardous waste. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 13 | P a g e...
  • Page 14 Step 10 Turn the tank valve to release gas. Push and hold ignition button to ignite flame. Adjust control knob to desired flame once flame is lit. Step 11 Shut the tank valve and adjust control knob to extinguish flame when not in use. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 14 | P a g e...
  • Page 15 Step 12 Place lid when unit cools down completely. Step 13 Step 14 Need Assistance? Visit us at: samsclub.com/membersmarkhelp 15 | P a g e...
  • Page 16 Step 15 Step 16 Step 17 When furniture is not in use, put covers on them to prevent dust Need Assistance? Visit us at: samsclub.com/membersmarkhelp 16 | P a g e...

  • Page 17: Gas Hookup And Information

    Gas Hookup and Information A. Fuel Note: A listed (and Common wealth of Massachusetts approved) 3/8 in. T-handle manual shut-off valve and Before making gas connections, ensure the appliance flexible gas connector are connected to the 3/8 in. being installed is compatible with the available gas type. Control valve inlet.
  • Page 18 FOR LIQUID PROPANE GAS UNITS *Do not attempt to disconnect the gas regulator or any gas fitting while your fire pit is in operation. *A dented or rusty liquid propane cylinder may be hazardous and should be checked by your gas supplier prior to use.
  • Page 19 Note: Checking for leaks ● Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. 1. Make 2-3oz of leak detection solution by mixing one part liquid ● Illustrations / diagrams are not drawn to scale. dishwashing soap with three parts water. Actual installation may vary due to Make sure control knobs are in the “...

  • Page 20: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention / Solution No LP in tank. Check the LP (propane) tank. You may be out of gas. Or check Natural Gas valve at main. Fire won’t light Plugged burner orifice. Check the burner orifice for stoppage. Remove stoppage.

  • Page 21: Storage Instructions

    Storage Instructions 1. Carefully place all components into shipping box and/or provided container tape it shut. 2. When not in use, please store your item in a cool, dry place away from sunlight. 3. Exposing your item to excessive heat or humidity may damage your item. 4.
