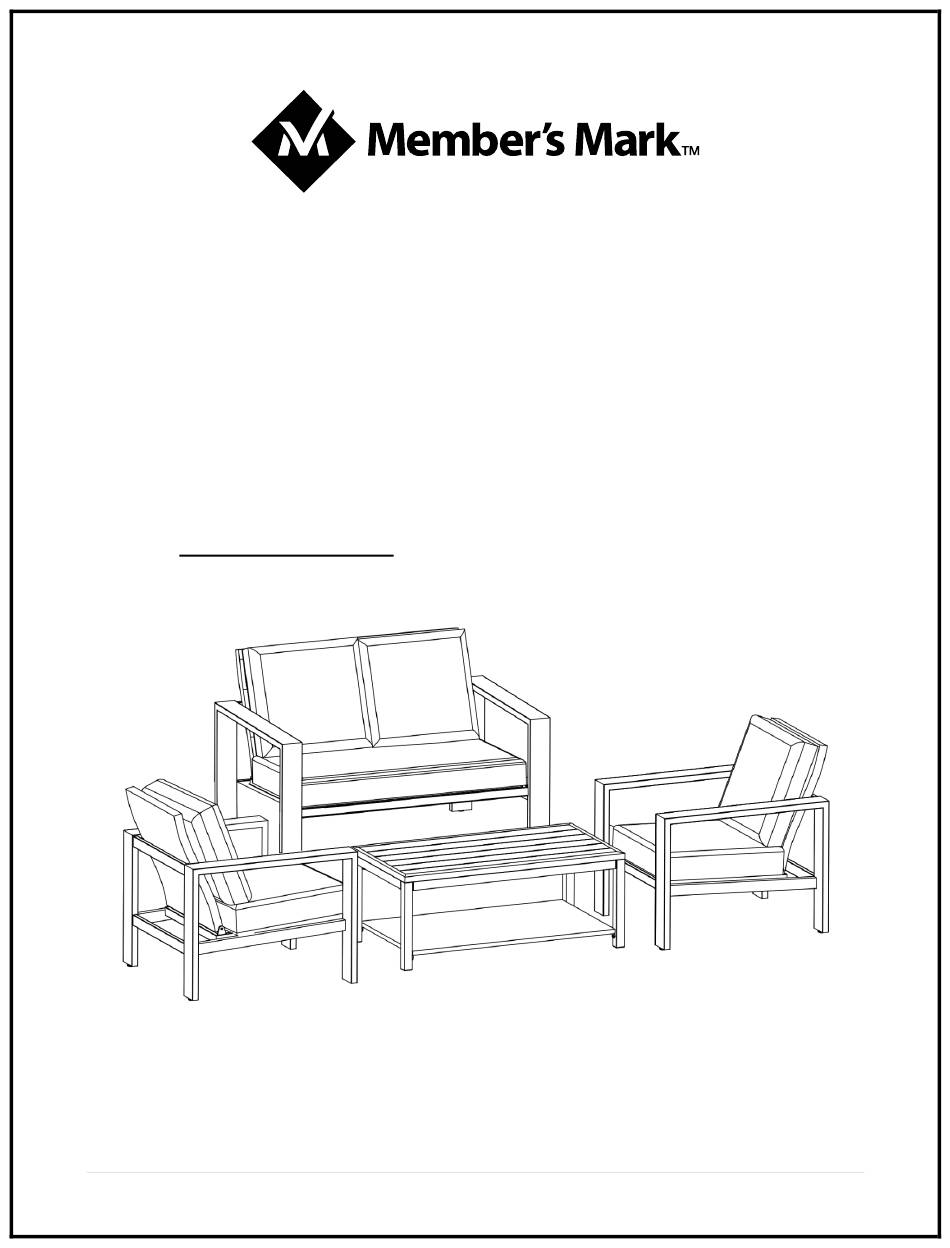

Assembly Instructions & User's Manual
For
Member's Mark Cahaba 4pc Small Space
Seating Set
Item Number:
Model Number: FRM10461ST
Customer Assistance
: 1-888-690-9800
(spare/replacement parts)
or Email: cs@sunvillahome.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Cahaba FRM10461ST
Summary of Contents for Member's Mark Cahaba FRM10461ST
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Cahaba 4pc Small Space Seating Set Item Number: Model Number: FRM10461ST Customer Assistance : 1-888-690-9800 (spare/replacement parts) or Email: cs@sunvillahome.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ............................3 Care & Use ..............................3 Package Contents ............................ 4 Product Information ..........................5 Components .............................. 5 Hardware ..............................6 Tools ................................6 Step 1 – Step 11 ............................6 Troubleshooting ............................ -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Table Top Chair & Loveseat Back Cushion Table Leg 1 Loveseat Frame Table Leg 2 Furniture Cover For Table Connector Furniture Cover For Chair Chair Frame Furniture Cover For Loveseat Chair & Loveseat Seat Cushion Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Product Information
Product Information Dimensions: Table: 24”x43.89”x18.11” (61cm x 111.5cm x 46cm) Chair: 30.90”x34.25”x34.44” (78.5cm x 87cm x 87.5cm) Loveseat: 53.90”x34.25”x34.44” (137cm x 87cm x 87.5cm) Weight Capacity: Chair: Supports up to 250 lbs. (113.4kg.) Loveseat: 250lbs (113.4kg.) per each seat Components Table Top Table Leg 1 Table Leg 2... -
Page 6: Hardware
Hardware M6x25 Bolt M8x35 Bolt Qty: 4 Qty: 4 Tools Wrench (Included) Step 1 – Step 11 Step 1 Step 2 Step 3 Step 4 If necessary, you can adjust the feet to level the table. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... - Page 7 Step 5 Lift up the chair back to the upright position. To secure chair frame, snap bolt onto latch to lock in place. Step 6 Step 7 Place cushion shown as below before use. If necessary, you can adjust the feet to level the chair. Step 8 Lift up the loveseat back to the upright position.
- Page 8 Step 9 Step 10 Place cushion shown as below before use. If necessary, you can adjust the feet to level the loveseat. Step 11 When furniture is not in use, put covers on them to prevent dust. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
-
Page 9: Troubleshooting
Troubleshooting Problem Possible Cause Prevention / Solution Table is unstable Hardware may loosen overtime. Periodically check that all connections are tight. Storage Instructions 1. Carefully place all components into shipping box and/or provided container tape it shut. 2. When not in use, please store your item in a cool, dry place away from sunlight. 3. -
Page 10: Warranty Information
Warranty Information This product component has a 3 years guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number 1-888-690-9800 or email us at cs@sunvillahome.com NOTE: Please consider recycling all applicable packaging material.
