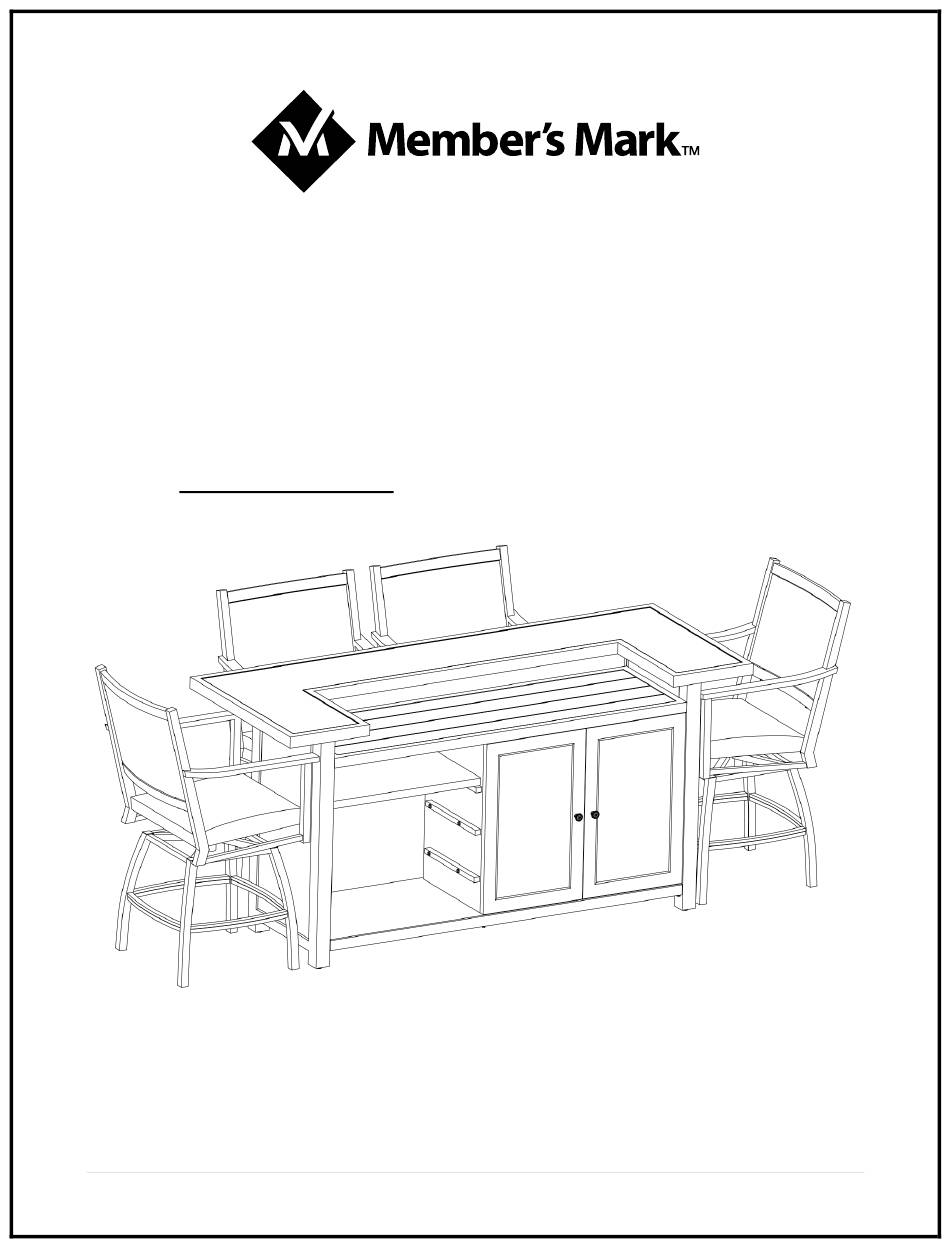

Assembly Instructions & User's Manual
for
Member's Mark Powell 5pc Bar Dining Set
Item Number:
Model Number: FRA10396HST
Customer Assistance
: 1-888-690-9800
(spare/replacement parts)
or Email: cs@sunvillahome.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark Powell FRA10396HST
Summary of Contents for Member's Mark Powell FRA10396HST
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Powell 5pc Bar Dining Set Item Number: Model Number: FRA10396HST Customer Assistance : 1-888-690-9800 (spare/replacement parts) or Email: cs@sunvillahome.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ............................3 Care & Use ..............................3 Package Contents ............................ 4 Product Information ..........................5 Components .............................. 5 Hardware ..............................6 Tools ................................6 Step 1 – Step 9 ............................6 Troubleshooting ............................. -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Chair Frame Table Base Chair Base Removable Shelf Table Top Furniture Cover Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Product Information
Product Information Dimensions: Table: 30.7”x79.1”x38.9” (78cm x 201cm x 99cm) Chair: 24.4”x27.9”x45.2” (62cm x 71cm x 115cm) Weight Capacity: Chair: Supports up to 250 lbs. (113.4kg.) Components Chair Frame Chair Base Table Top Qty 4 Qty 4 Qty 1 Table Base Removable Shelf Qty 1 Qty 1... -
Page 6: Hardware
Hardware φ13xφ8.0x2.0 Spring Washer M8x45 Bolt Washer Plate Qty: 16 (4 per chair) Qty: 16 (4 per chair) (4 per chair) Qty: 16 Door Knob M8x20/Φ24x2.0 Bolt Qty: 2 Qty: 4 Qty: 16 (4 per chair) φ8.8xφ4.0x1.0 φ6.5xφ4.0x1.0 Spring Washer M4x35 Bolt Qty: 2 Qty: 2... - Page 7 Step 2 Step 3 If necessary, you can adjust the feet to level the chair. Step 4 Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 8 Step 5 Step 6 Step 7 Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 9 Step 8 If necessary, you can adjust the feet to level the table. Step 9 When furniture is not in use, put covers on them to prevent dust. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
-
Page 10: Troubleshooting
Troubleshooting Problem Possible Cause Prevention / Solution Table is unstable Hardware may loosen overtime. Periodically check that all connections are tight. Storage Instructions Carefully place all components into shipping box and/or provided container tape it shut. When not in use, please store your item in a cool, dry place away from sunlight. Exposing your item to excessive heat or humidity may damage your item.
