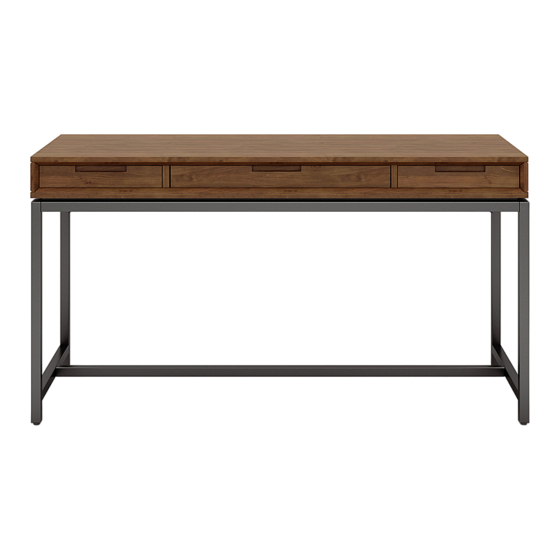

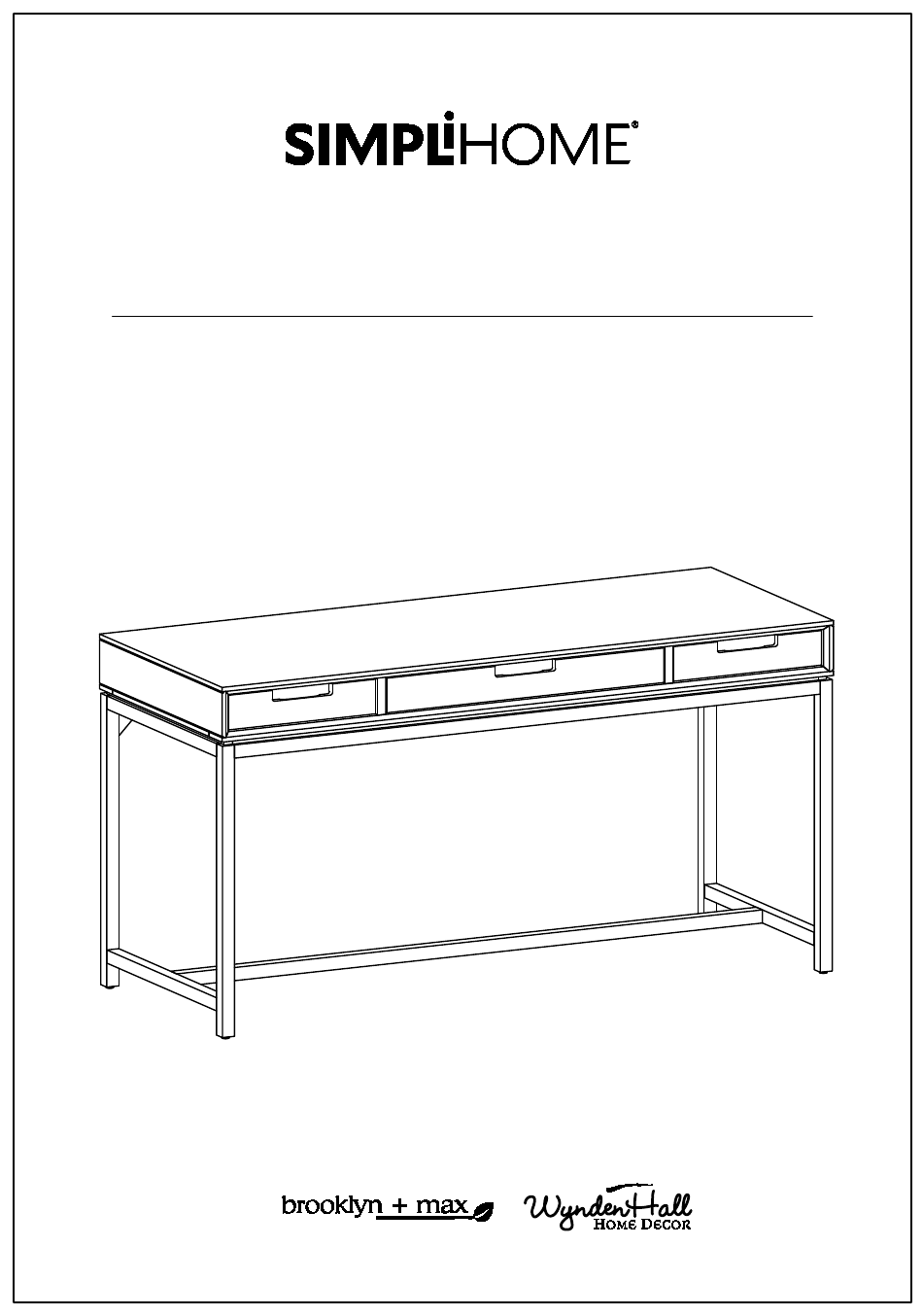

- Page 1 Banting / Devlin / Argyle Mid Century Desk Model # AXCBAN-09-MSB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCBAN-09-MSB Part Description QTY 1 LEG BACK CONNECTOR LEFT LEG RIGHT LEG QTY 1 QTY 1 QTY 1 LEG FRONT CONNECTOR LEG LOWER CONNECTOR LEG SUPPORTER QTY 1 QTY 1 QTY 2...
-
Page 8: Lock Washer
Pre-Assembly Information Model # AXCBAN-09-MSB Hardware Description ALLEN KEY BOLT LOCK WASHER M6 x 15 mm Ø10 / Ø6.5 x 1.5 mm QTY 20 QTY 20 WASHER PHILLIPS SCREW ROUND HEAD M4 X 15mm Ø16 / Ø6.5 x 1.5 mm QTY 4 QTY 24 Required -... - Page 9 Components - Key Diagram Model # AXCBAN-09-MSB...
- Page 10 Assembly Model # AXCBAN-09-MSB Step 1 1. Align Parts C , D and E to Right Leg BR . 2. Use one Bolt 1 , one Lock Washer 2 and one Washer 3 to secure each part C , D , E with BR . 3.
- Page 11 Assembly Model # AXCBAN-09-MSB Step 2 1. Repeat Step 1 for Left Leg BL .
- Page 12 Assembly Model # AXCBAN-09-MSB Step 3 1. Use Allen Key 5 to tighten Bolts. Step 4 1. Align Leg Supporters F to Legs BL , BR . 2. Use four Bolts 1 , four Lock Washers 2 and four Washers 3 to secure each part F with BL , BR .
- Page 13 Assembly Model # AXCBAN-09-MSB Step 5 1. Attach the assembled metal frame to Top A . 2. Use six Bolts 1 , six Lock Washers 2 and six Washers 3 to secure metal frame and Top A . 3. Use Allen Key 5 to tighten Bolts.
- Page 14 Assembly Model # AXCBAN-09-MSB Step 6 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 15 Assembly Model # AXCBAN-09-MSB Step 7 YOU MUST...
