Banting / Devlin / Argyle

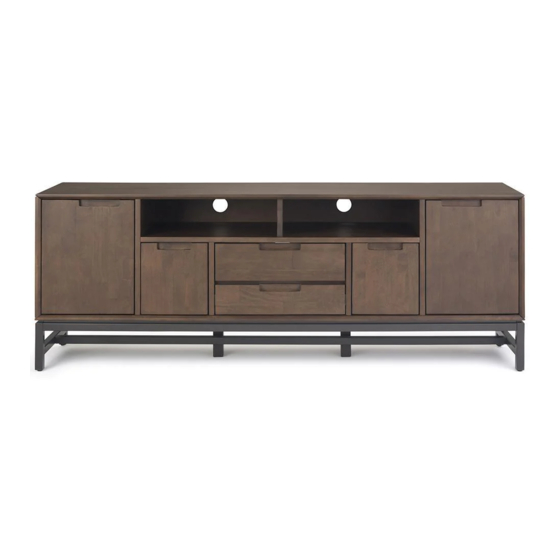

Mid Century 72 inch Wide TV Stand
Model # AXCBAN-08
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Banting AXCBAN-08 and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME Banting AXCBAN-08

Summary of Contents for SIMPLIHOME Banting AXCBAN-08

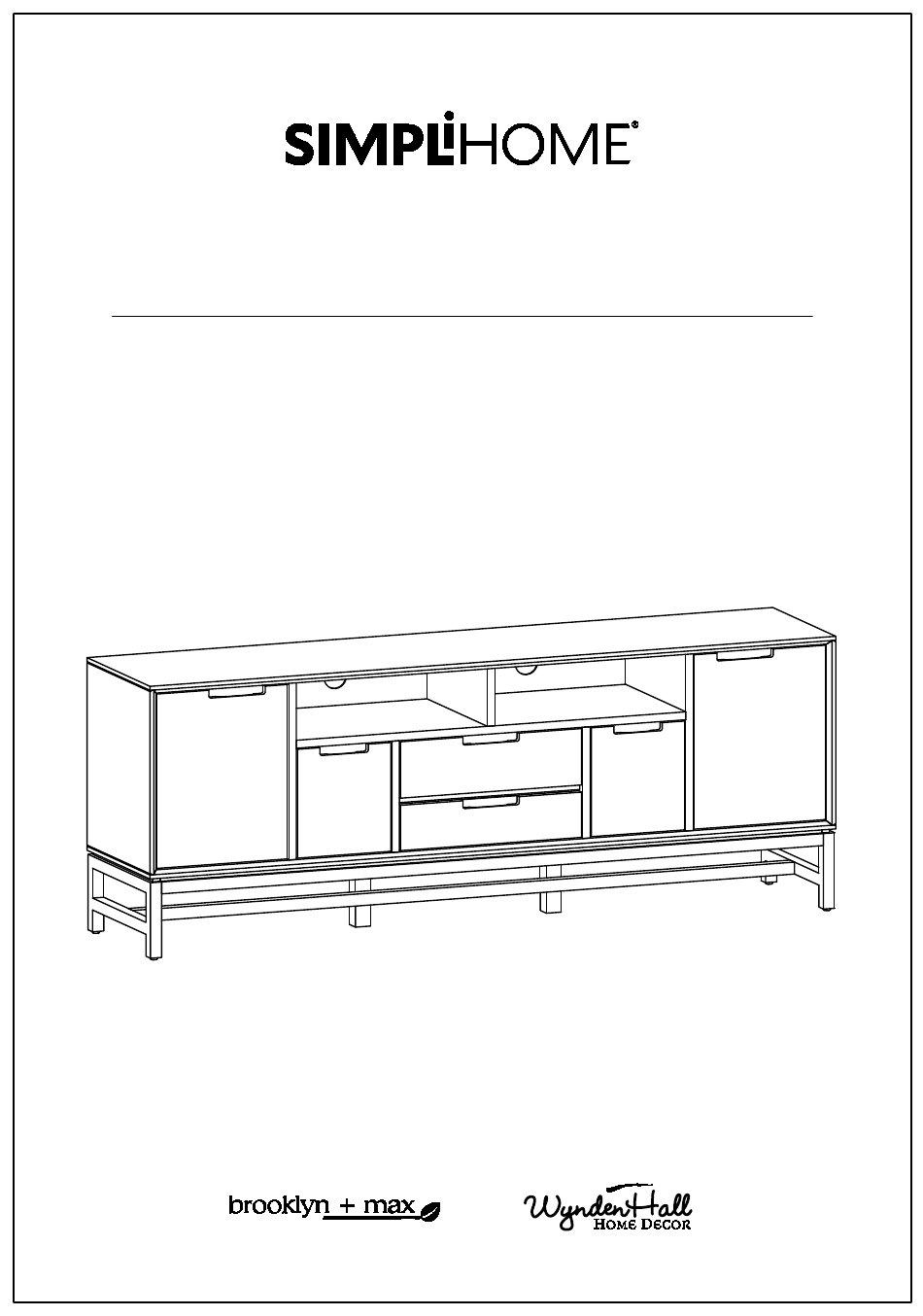

  • Page 1 Banting / Devlin / Argyle Mid Century 72 inch Wide TV Stand Model # AXCBAN-08...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 7: Maximum Load 25 Lbs

    WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
  • Page 8 Pre-Assembly Information Model # AXCBAN-08 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT MIDDLE DIVIDER TOP SHELF TOP DIVIDER QTY 1 QTY 1 QTY 1 RIGHT MIDDLE DIVIDER FLIP DOWN DOOR MIDDLE SHELF QTY 1 QTY 1 QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCBAN-08 Part Description LEFT DIVIDER RIGHT DIVIDER SHELF QTY 1 QTY 1 QTY 2 DRAWER FRONT BOTTOM SHELF BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 2 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 1 QTY 1 QTY 1...

  • Page 10: Drawer Bottom

    Pre-Assembly Information Model # AXCBAN-08 Part Description LEFT LARGE DOOR DRAWER BOTTOM RIGHT LARGE DOOR QTY 1 QTY 1 QTY 1 LEFT SMALL DOOR RIGHT SMALL DOOR LEFT BACK PANEL QTY 1 QTY 1 QTY 1 Warning Label BOTTOM BACK PANEL RIGHT BACK PANEL TOP BACK PANEL QTY 1...
  • Page 11 Pre-Assembly Information Model # AXCBAN-08 Hardware Description WOOD DOWEL CAM LOCK PIN CAM LOCK Ø8 X 30mm ALLEN KEY QTY 36 QTY 1 QTY 13 SETS ALLEN KEY SCREW ALLEN KEY BOLT ALLEN KEY BOLT M6 X 30mm M6 x 30 mm M6 x 15 mm QTY 37 QTY 12...
  • Page 12 Pre-Assembly Information Model # AXCBAN-08 Hardware Description PHILLIPS SCREW ADJUSTABLE HINGE HINGE M3.5 X 15mm QTY 8 SETS QTY 48 QTY 2 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1 M4 X 25mm - QTY 1 PHILLIPS SCREW PHILLIPS SCREW M3.5 X 12mm...
  • Page 13 Components - Key Diagram Model # AXCBAN-08...
  • Page 14 Assembly Model # AXCBAN-08 Step 1 1. Attach four Cam Lock Pins 3 into pre-drilled holes on back of Drawer Front L . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
  • Page 15 Assembly Model # AXCBAN-08 Step 3 Step 4 1. Align Drawer Back N with Drawer Bottom O and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 4 through drilled holes on each Drawer Side ML , MR . 3.
  • Page 16 Assembly Model # AXCBAN-08 Step 5 1. Insert four Dowels 1 into guide holes on Middle Shelf F . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach Hinge 15 to Middle Shelf F by using Phillips Screws 16 to attach Middle Shelf F through guide holes.
  • Page 17 Assembly Model # AXCBAN-08 Step 7 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Middle Shelf F to Dividers EL , ER . 2. Insert six Cam Locks 3 into guide holes on Middle Shelf F . 3.
  • Page 18 Assembly Model # AXCBAN-08 Step 8 1. Insert four Dowels 1 into guide holes on Top Shelf C , Top Divider D . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 9 1.
  • Page 19 Assembly Model # AXCBAN-08 Step 10 1. Align Wood Dowels with guide holes on Top Shelf C attach Middle Dividers EL , ER to Top Shelf C . 2. Use three Allen Key Screws 4 to attach each Middle Divider EL , ER through guide holes from Middle Dividers EL , ER to pre-drilled holes of Top Shelf C .
  • Page 20 Assembly Model # AXCBAN-08 Step 11 1. Insert four Dowels 1 into guide holes on each Sides BL , BR and Dividers HL , HR . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 21 Assembly Model # AXCBAN-08 Step 13 1. Align Wood Dowels with guide holes on Dividers HL , HR and attach Dividers HL , HR to Top Shelf C . 2. Use six Allen Key Screws 4 to attach each Divider HL , HR through guide holes from Top Shelf C to pre-drilled holes of Dividers HL , HR .
  • Page 22 Assembly Model # AXCBAN-08 Step 14 1. Align Wood Dowels with guide holes on Bottom Shelf J and attach parts HL , HR , EL , ER to Bottom Shelf J . 2. Use three Allen Key Screws 4 to attach each part HL , HR , EL , ER through guide holes from Bottom Shelf J to pre-drilled holes of parts HL , HR , EL , ER .
  • Page 23 Assembly Model # AXCBAN-08 Step 15 1. Align Wood Dowels with guide holes on Bottom Shelf J and attach Sides BL , BR to Bottom Shelf J . 2. Use three Allen Key Bolts 5 to attach Sides BL , BR through guide holes from Bottom Shelf J to Sides BL , BR .
  • Page 24 Assembly Model # AXCBAN-08 Step 16 1. Align Wood Dowels with guide holes on Top A ; align Cam Lock Pins with guide holes on Top Divider D and attach Top A . 2. Insert three Cam Locks 3 into guide holes on Top Divider D .
  • Page 25 Assembly Model # AXCBAN-08 Step 17 1. Align Parts T , U to Leg S . 2. Use one Bolt 6 , one Lock Washer 7 and one Washer 8 to secure each part T , U with S . 3.
  • Page 26 Assembly Model # AXCBAN-08 Step 18 1. Repeat Step 10 for second Leg S . 2. Use Allen Key 2 to tighten Bolts.
  • Page 27 Assembly Model # AXCBAN-08 Step 19 1. Align iron dowels with guide holes on wooden frame and attach the assembled metal frame to bottom wooden frame . 2. Use four Bolts 6 , four Lock Washers 7 and four Washers 8 to secure metal frame and wooden frame .
  • Page 28 Assembly Model # AXCBAN-08 Step 20 Step 21 1. Align two Bottom Support Legs K with pre-drilled holes on back of Bottom Shelf J . Using Phillips Screwdriver to tighten four Phillips Screws 17 .
  • Page 29 Assembly Model # AXCBAN-08 Step 22 Warning Label Note: 1. Attach the Back Panels RL , RR , R1 , R2 to back frame using Phillips Screws Round Head 9 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 30 Assembly Model # AXCBAN-08 Step 23 1. Attach Adjustable Hinges 13 to Doors PL , PR , QL , QR . using Phillips Screws 14 into pre-drilled holes on Doors PL , PR , QL , QR .
  • Page 31 Assembly Model # AXCBAN-08 Step 24 1. Attach Adjustable Hinges 13 on Doors PL , PR to Sides BL , BR using Phillips Screws 14 into pre-drilled holes on Sides BL , BR . 2. Attach Adjustable Hinges 13 on Doors QL , QR to Dividers HL , HR using Phillips Screws 14 into pre-drilled holes on Dividers HL , HR .

  • Page 32: Important Note

    Assembly Model # AXCBAN-08 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 33 Assembly Model # AXCBAN-08 Step 25 1. Attach Hinges 15 on Middle Shelf F to Flip Down Door G using Phillips Screws 16 into pre-drilled holes . 2. Use Phillips screwdriver to snugly tighten screws. 2. Attach Magnets 11 using Phillips Screws 12 into pre-drilled holes on Dividers EL , ER . 3.
  • Page 34 Assembly Model # AXCBAN-08 Step 26 2. Attach Magnets 11 using Phillips Screws 12 into pre-drilled holes on Dividers HL , HR , EL , ER . 3. Use Phillips screwdriver to snugly tighten screw.
  • Page 35 Assembly Model # AXCBAN-08 Step 27 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Shelf I in desired location . 2. Two Shelf Supports 10 may be used on back top of each Shelf I as a tipping restraint.
  • Page 36 Assembly Model # AXCBAN-08 Step 28 1. Insert assembled drawer into glides on assembled TV. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
  • Page 37 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 29 NOTE: The screwdriver is not included in the hardware pack.
  • Page 38 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
