9.

CONFIGURATION SOFTWARES

9.1

NXPERIENCE

The NXperience software is the main tool for configuring, download and analyzing data for LogBox BLE. It allows you to explore all the features
and resources of the register by communicating through its USB interface. It is also a complete data analysis tool logged by LogBox BLE.
The NXperience allows the graphical analysis of multiple data, reporting, and exporting data to multiple formats and is a complete configuration
tool for the new NOVUS device line. This manual describes the generic software features, specific and pertinent to LogBox BLE. Both the manual
and the software can be downloaded free of charge at www.novusautomation.com, in the download area.
LogBox BLE specific configuration features are described in the CONFIGURING WITH NXPERIENCE / NXPERIENCE MOBILE section.
9.2

NXPERIENCE MOBILE

The NXperience Mobile application is the ideal tool for the daily use of LogBox BLE. Running on Android or iOS smartphones, it is always on
hand to monitor, download data, or configure the register. Through the Android or iOS sharing feature, you can export your registers data by email
or store it in Google Drive, Dropbox, and any other cloud storage tool.
NXperience Mobile can be downloaded for free from Google Play Store or App Store.
NXperience Mobile specific features are described in the NXPERIENCE MOBILE SPECIFIC FEATURES section.
9.3

CONFIGURING WITH NXPERIENCE / NXPERIENCE MOBILE

LogBox BLE can be configured via both NXperience (Windows) and NXperience Mobile (Android or iOS). Below is a description of each possible
configuration parameters, grouped by sections.

9.3.1 GENERAL PARAMETERS

NXperience
INFORMATION
• Device Tag: Allows you to configure a name of up to 20 characters for the device. This name will be used to identify the device in a data
download.
• Serial Number: Informs the device unique identification number.
• Firmware Version: Informs the firmware version that is recorded on the device.
• MAC Bluetooth: Informs the MAC address for the Bluetooth interface. The MAC can be used to identify the device when it is located by the
smartphone, if the SSID has not yet been configured.

BLUETOOTH

• Enable Bluetooth: Allows you to enable/disable the Bluetooth interface.
• SSID Bluetooth: Allows you to configure name with up to 8 characters for the Bluetooth interface. The SSID can be used to identify the device
when it is located by the smartphone. It is recommended that each LogBox BLE be configured with a different SSID.
• Wake Up Mode: Allows you to configure how the Bluetooth interface should become available for connection to smartphones.
o Periodic: In this configuration, the Bluetooth interface is always available so that a smartphone can be connected.
 Periodicity: Allows you to configure, in milliseconds, how often the device will make the Bluetooth interface available for connection. The
minimum frequency is 500 milliseconds and the maximum are 4 seconds.
NOVUS AUTOMATION
Android

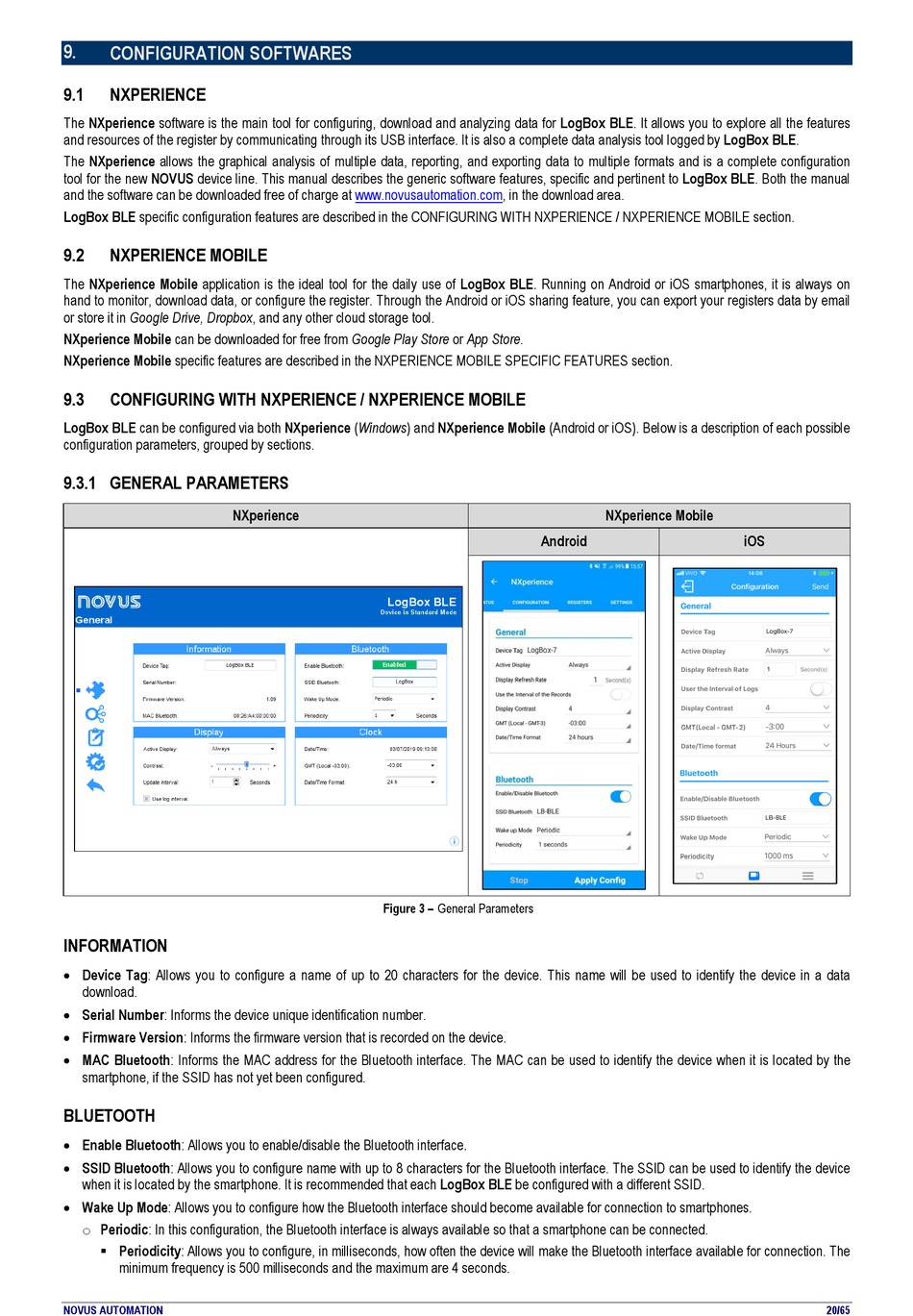

Figure 3 – General Parameters
NXperience Mobile
iOS
20/65
