CAUTION: It is important to read the installation instructions before connecting the equipment to the
mains power supply.
Download Product Manual: Product manuals and documentation are available online at
https://www.barco.com/support. The QR code at the bottom of this page leads directly to the F400
product page on the Barco website. Registration may be required; follow the instructions given on
the website.

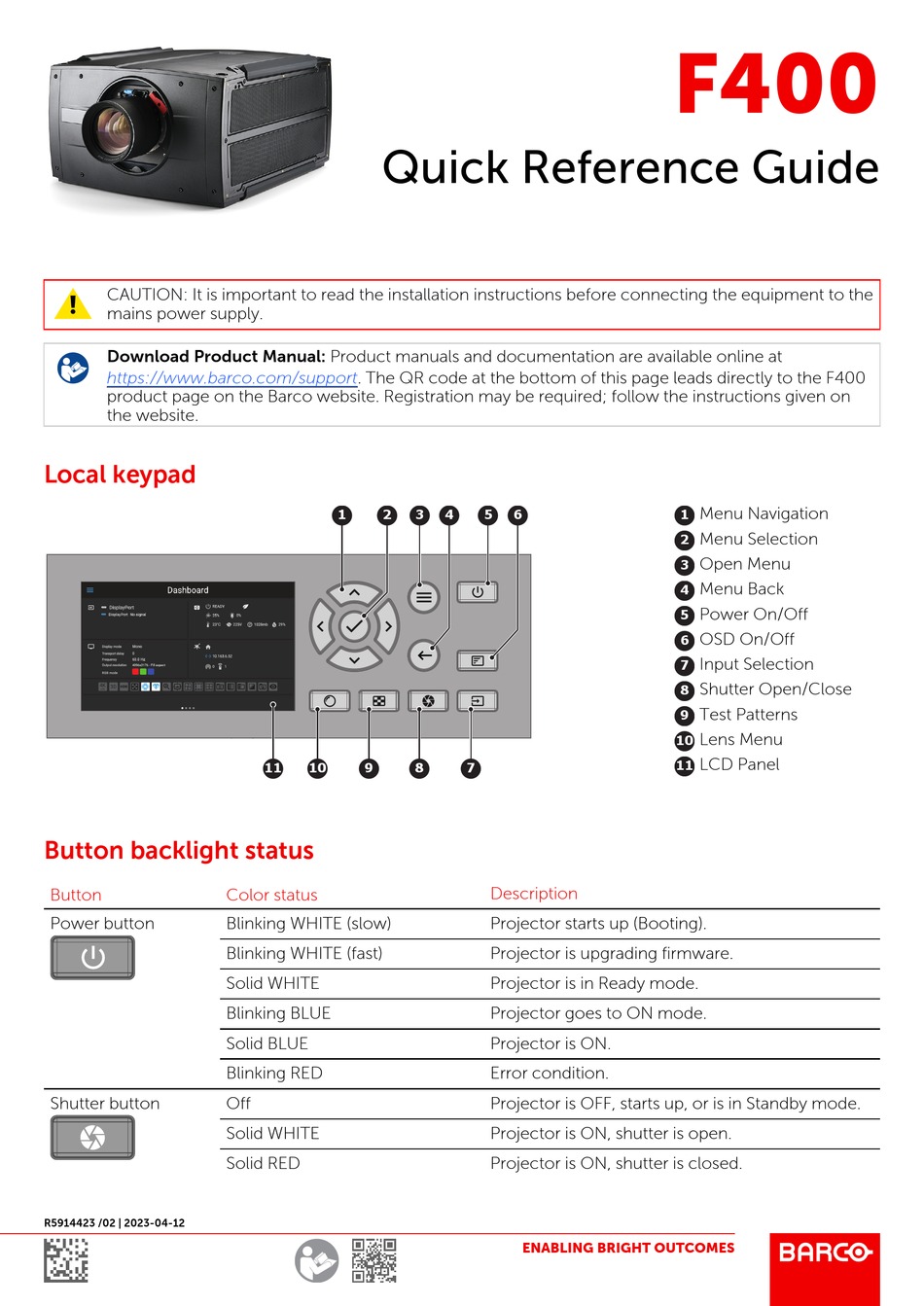

Local keypad

Button backlight status

Button
Power button
Shutter button
R5914423 /02 | 2023-04-12
Quick Reference Guide
1
2
11
10
9
Color status
Blinking WHITE (slow)
Blinking WHITE (fast)
Solid WHITE
Blinking BLUE
Solid BLUE
Blinking RED
Off
Solid WHITE
Solid RED
3
4
5
6
8
7
Description
Projector starts up (Booting).
Projector is upgrading firmware.
Projector is in Ready mode.
Projector goes to ON mode.
Projector is ON.
Error condition.
Projector is OFF, starts up, or is in Standby mode.
Projector is ON, shutter is open.
Projector is ON, shutter is closed.
ENABLING BRIGHT OUTCOMES

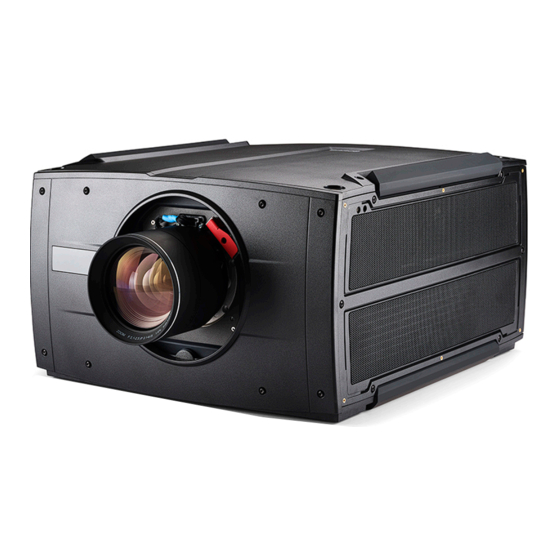

F400
1
Menu Navigation
2
Menu Selection
3
Open Menu
4
Menu Back
5
Power On/Off
6
OSD On/Off
7
Input Selection
8
Shutter Open/Close
9
Test Patterns
10
Lens Menu
11
LCD Panel
