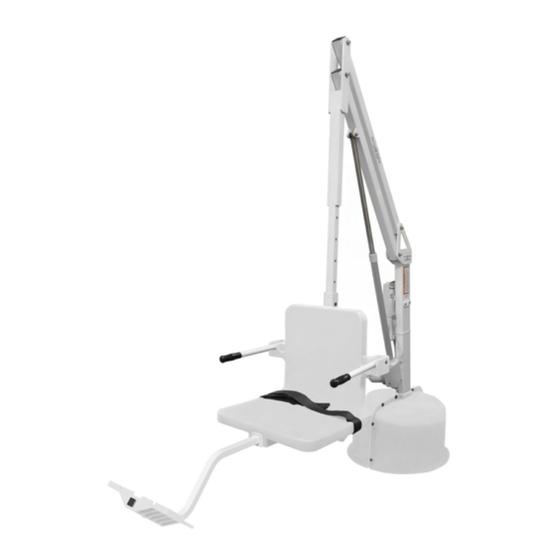

Revolution Deep

Draft Lift Manual

9889 Garrymore Ln

Missoula, MT 59808

888-687-3552 | +1-406-549-0769

www.aquacreek.com

PART #: F-702RLNA-DD-03

US PATENT NUMBER: [D507,769 S]

400 LB. [181 kg] MAXIMUM WEIGHT CAPACITY

FOR INDOOR OR OUTDOOR USE

MANDATORY

LEAVE THIS MANUAL WITH LIFT OWNER

ADA COMPLIANT

READ CAREFULLY

Check entire box and all packing materials for parts. Before beginning assembly, read the

instructions and identify parts using the fi gures and parts listed in this document.

It is critical that all parts be carefully inspected prior to installation. If any damage occurred in

transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.

Proper installation cannot be overstressed, as an improper installation voids Aqua Creek's

warranty and may affect the safety of the user.

Revised 6/19/19

Need help?

Do you have a question about the Revolution Deep Draft Lift and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua Creek Products Revolution Deep Draft Lift

Page 1 It is critical that all parts be carefully inspected prior to installation. If any damage occurred in transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may affect the safety of the user. Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 2 Supervise children at all times. No jumping or diving from the lift. Seat may be hot, use caution when entering. Keep covered when not in use. Inspect and clean before use. INDOOR BATTERY CHARGER: AMPERAGE = 0.65 FREQUENCY = 60 24 VOLT BATTERY AMPERAGE = 8 IP RATING = IPX5 Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 3 1. The Revolution Deep Draft Main Assembly 2. Deep Draft Control Arm 3. Deep Draft Lifting Arm 4. Deep Draft Seat Arm 5. Footrest 6. Actuator 7. Vito Handset 8. 24V Battery Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 4 • Deck slope no greater than 1:48 • The seat must submerge at least 18 inches into the water. The lift should be installed at a location with 42 inches - 48 inches of depth (deck to pool ﬂ oor) • Anchor setbacks are based on straight pool/spa walls. Curved pool/spa walls will effect the anchor setback. [187.9cm] 74" [122cm] 48" REQUIRED CLEAR DECK [91.4cm] SPACE 36" [30.5cm] 12" [73.7cm] 29" [40.6cm] 16" WATER POOL WALL FIGURE 1 Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 5 TO EXISTING SLAB 10" (4" MIN. EMBED) ITEM NO. OPTION F-730RSA-S2 GURNEY 21” 32” F-706RLSS SLING SEAT 21” 24” F-734RSA SPINE BOARD 21” 34” F-705-S2 WHEELCHAIR ADAPTER 21” 34” Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 6 7. Re-install the lift into the anchor and using the 1/2 inch bolt and washer, carefully thread into the installed anchor until snug. TO PREVENT BREAKING THE FIXING BRACKET, DO NOT OVERTIGHTEN! 1/2" X 2" HEX BOLT 1/2" FLAT MAIN ASSEMBLY WASHER POST ANCHOR DECK STEP 1 Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 7 SHOULDER BOLT 3/8" FLAT SHOULDER BOLT WASHER 3/8" NYLOCK NUT CONTROL 5/16" NYLOCK NUT 5/16" FLAT WASHER 3/8" NYLOCK 3/8" X 2" SHOULDER BOLT LIFTING ACTUATOR STEP 3 STEP 2 Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 8 In its highest position the seat will clear a 24 inch [609mm] high wall (with the pull-out legrest). STEP 5 3/8" X 2" SHOULDER BOLT 5/16" FLAT WASHER (3) 5/16" NYLOCK NUT (2) 5/16" X 4 1/2" HEX BOLT Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 9 CONTROL STEP 6 BATTERY SEAT ASSEMBLY PLASTIC SLEEVE CONTROL 1/4" FLAT WASHER 1/4" LOCK WASHER FOOTREST 1/4" X 1/2" BUTTON TUBE HEAD BOLT (ADJUSTABLE) STEP 7 Not Seated Seated Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 10 Note: the lift will not retract if the battery is not fully charged or if the control box is not working. The emergency button only overrides the remote handset. Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 12 3M Scotch Brite™ pad. Use white epoxy paint to touch up the finish. Apply wax to protect when dry. For service and/or replacement parts, contact Aqua Creek Products Toll free: (888) 687-3552 Copyright © 2019 Aqua Creek Products All Rights Reserved...
Page 13 24 VOLT LINAK BATTERY NN 1/4 NUT, 316 SS, NYLOCK, 1/4-20 F-UBC BATTERY/CONTROL BOX COVER BOLT, 18-8 SS, 1/2 X 2 3/4 BS 1/2 X 2 3/4 18-8 SHOULDER, 3/8-16 THREAD Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 6/19/19...
Page 14 SHALL AQUA CREEK’S LIABILITY EXCEED THE ENTIRE AMOUNT PAID TO AQUA CREEK BY THE ORIGINAL PURCHASER FOR THE FAILED OR DEFECTIVE PRODUCT. IN NO EVENT SHALL AQUA CREEK PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES OR LOST PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE.

This manual is also suitable for:

F-702rlna-dd-03
