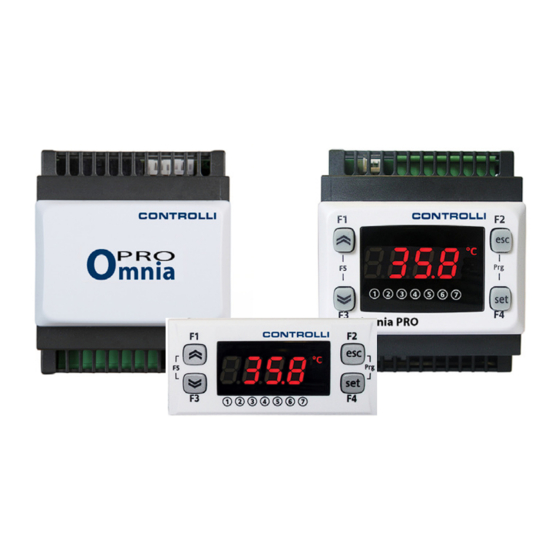

Controlli W554C Quick Start Manual

Multi-function DDC controller
Model
Application-specific controller without display,
W554C
Application-specific controller with display,
W554C-D
Application-specific controller with display,
W554C-DS
Application-specific controller without display,
W554C-S
GENERAL DESCRIPTION
DDC controller for thermoventilation, tank and service water
control or swimming-pool generic loop.
The remote STA6XL sensors can be used in environment.
The controller can be connected by RS485 serial port and Mod-
Bus protocol (S version only).
CARATTERISTICHE TECNICHE
Dimensions 4DIN
Max consumption 6VA / 4W
Power supply 2-24 Vac/24Vdc ± 10 % 50/60 Hz
RS485 S models only
Housing
resin plastic body PC+ABS UL94 V-0, polycarbonate
glass, thermoplastic resin buttons
Room temperature
operating -10T55°C.
storage -20T85°C
Room humidity
operating/storage 0...90% R.H.
Use Functioning device (non-safety) to in-
tegrate
Action type 1.B - 1.Y
Insulation material PTI PTI 250V (device built with III class
material)
Overvoltage category II class
Rated impulse voltage 2500V
Fire resistance degree D
Software class A
ACCESSORIES
W560-EXP
W560-RT
1st Issue
ISO 9000
Description
without RS-485 serial unit
without RS-485 serial unit
with RS-485 serial unit
with RS-485 serial unit
I/O Expansion module
Remote Display
06/11
CONTROLLI
16010 SANT'OLCESE Genova - Italy
Tel.: +39 01073061
E-mail: info@controlli.eu

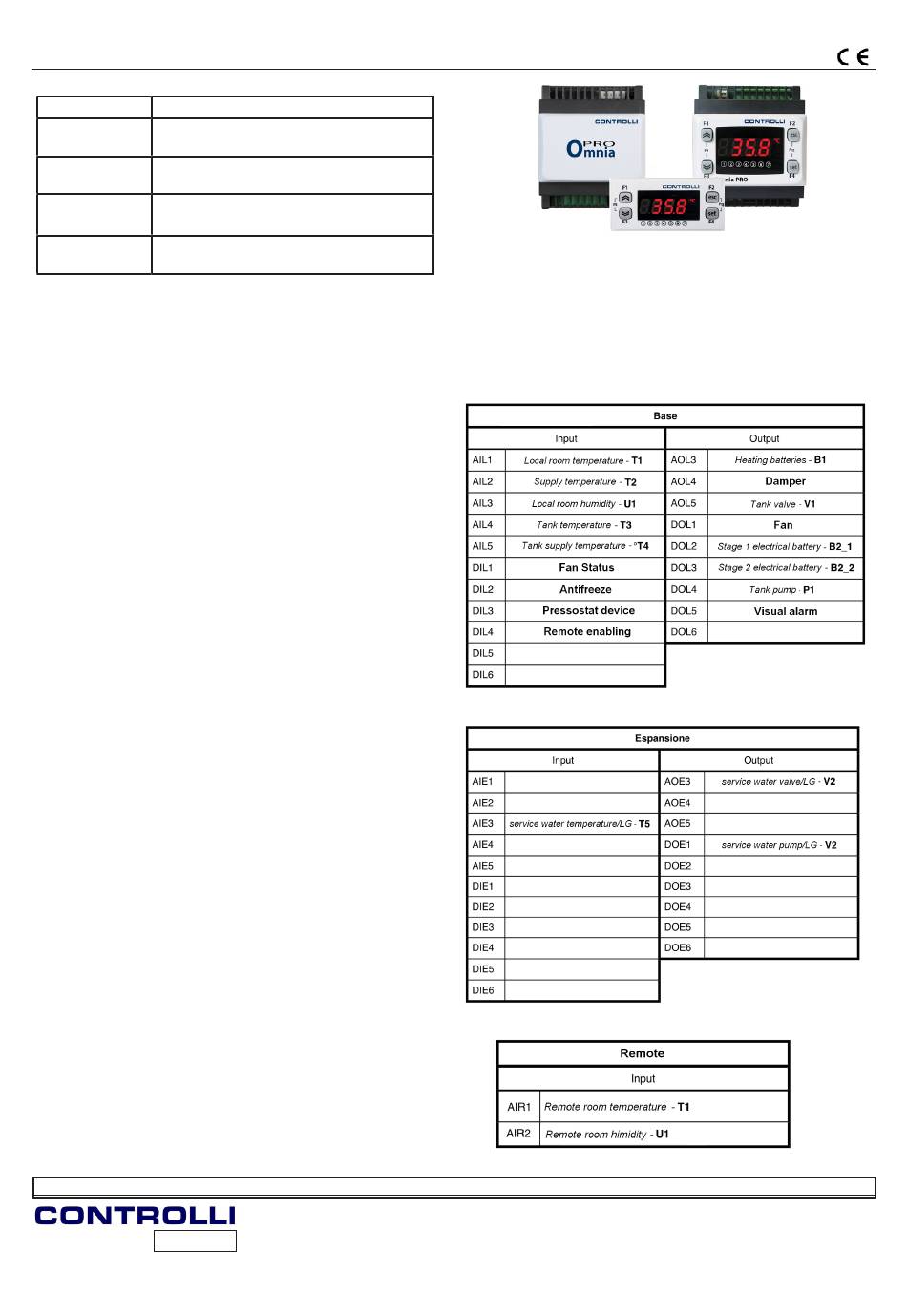

INPUTS/OUTPUTS
Inputs marked with * are related to configurable options and
they should be connected only if these features are enabled
and configured (see manual).
The inputs marked with ° are completely optional.
W554C-XX
W560-EXP
STA61L
1
Fax: +39 0107306870/871
Web: www.controlli.eu
W554C
DBL366E
