Item #1006 446 189
Model #YG814-PN
USE AND CARE GUIDE

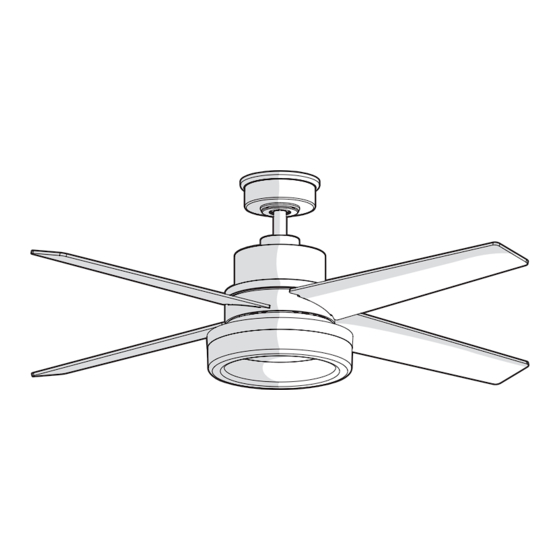

CITYVIEW 54 IN. CEILING FAN
Place Product Graphic Here
Maximum size: 7.5 in. x 4.5 in. (W x )
* Note: Delete this place holder before continuing.
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CITYVIEW YG814-PN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection CITYVIEW YG814-PN

  • Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........Operation .
  • Page 3: Safety Information

    Safety Information residential installation. This equipment generates, uses and can To reduce the risk of electric shock, ensure electricity has been radiate radio frequency energy and, if not installed and used in turned off at the circuit breaker or fuse box before beginning. accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4: Warranty

    Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw with lock washer 1.5V AAA battery Extension cord HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance.
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade support plate Canopy Light kit mounting plate Canopy bottom cover (preassembled) 20W LED Light kit Hanger ball/downrod assembly Receiver Coupling cover Remote control Fan motor assembly...
  • Page 7: Dual Mounting Instructions

    Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft.
  • Page 8: Installation

    Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°...
  • Page 9: Assembly

    Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor Remove the canopy ring (B) from the canopy (C). Remove the cotter pin (FF) and clevis pin (GG), and loosen the two collar setscrews (HH) from the motor collar. Remove the two non-slotted canopy mounting screws with Take out the setscrew (II) located in the hanger ball (JJ), lock washers (EE) from the canopy (C), and loosen the...
  • Page 10: Close-To-Ceiling Mounting

    Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor Remove the canopy ring (B) from the canopy (C). Remove the cotter pin (FF), clevis pin (GG) and two collar setscrews (HH) from the motor collar. Remove the mounting bracket (A) from the canopy (C) by loosening the four canopy mounting screws with lock Remove three of the six collar mounting screws with lock washers (EE) on the top of the canopy (C).
  • Page 11: Hanging The Fan

    Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
  • Page 12 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control NOTE: The frequencies on your receiver and remote control have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and remote control are set to the same frequency.
  • Page 13 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: Check to see that all connections are tight, Black White conductor including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. WARNING: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
  • Page 14 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Make sure the tab on the mounting bracket (A) WARNING: Locking slots of the canopy (C) are provided properly sits in the groove in the hanger ball (E) before only as an aid to mounting.
  • Page 15: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Attaching the blades WARNING: To reduce the risk of personal injury, do not bend the blades (H) while installing, balancing the blades (H), or cleaning the fan. WARNING: Do not insert foreign objects between rotating fan blades (H).
  • Page 16: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the light kit to the light plate to the mounting ring kit mounting plate Remove one of the three light kit mounting plate screws CAUTION: Before starting installation, disconnect the (PP) from the mounting ring (QQ) and loosen the other two power by turning off the circuit breaker or removing the fuse screws (PP).
  • Page 17: Operation

    Operation REMOTE CONTROL OPERATING INSTRUCTIONS - Press and release the button to turn the fan on or off. - Press and release 1 time - turns the fan on high speed. - Press and release 2 times - turns the fan on medium speed. - Press and release 3 times - turns the fan on low speed.
  • Page 18: Reverse Switch Operating Instructions

    Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation. Reverse switch NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.
  • Page 19: Troubleshooting

    Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 13. Problem Solution Check the main and branch circuit fuses or breakers. Check the line wire connections to the fan and switch wire connections in the switch housing.
  • Page 20: Service Parts

    Service Parts Description Part Description Part Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Blade attachment screw with lock washer Canopy 1.5V AAA battery Canopy bottom cover (preassembled) Extension cord Hanger ball/downrod assembly Coupling cover Fan motor assembly Blade Blade support plate Light kit mounting plate 20W LED Light kit...
  • Page 21 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
