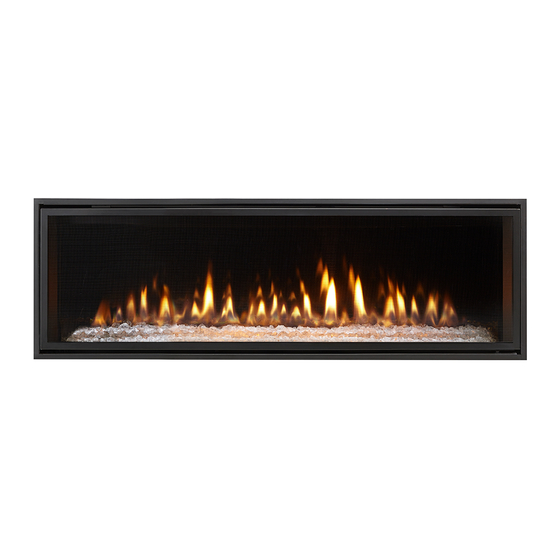

Heat&Glo MEZZO36 Owner's Manual

Heat&Glo MEZZO36 Owner's Manual

Care and operation

Advertisement

Quick Links

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.

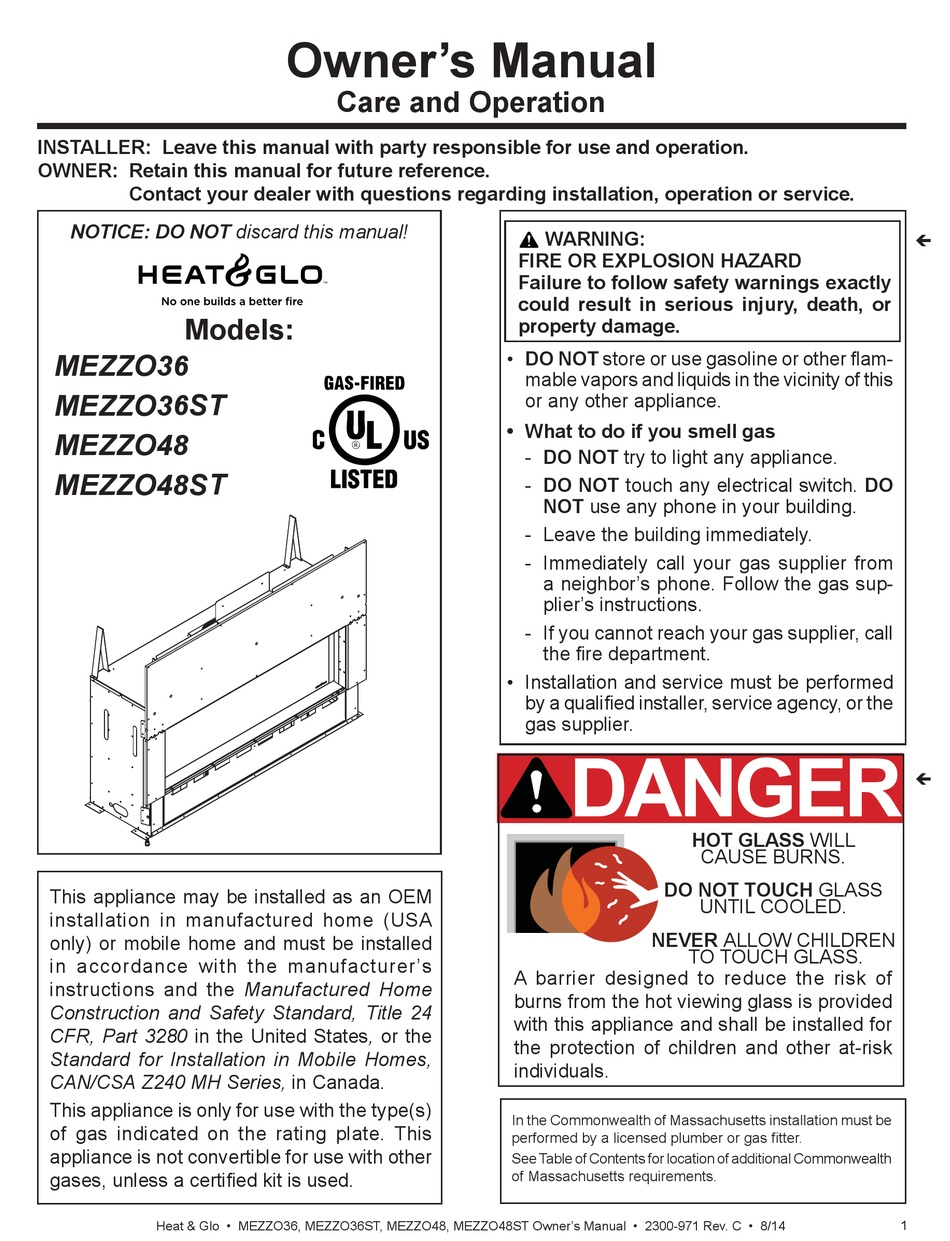

Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner's Manual • 2300-971 Rev. C • 8/14
Owner's Manual

Care and Operation

WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEZZO36 and is the answer not in the manual?

Questions and answers

Summary of Contents for Heat&Glo MEZZO36

  • Page 1: Care And Operation

    See Table of Contents for location of additional Commonwealth of Massachusetts requirements. gases, unless a certifi ed kit is used. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 2: Welcome

    MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 3: Table Of Contents

    C. Contact Information ......28  = Contains updated information. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 4: Limited Lifetime Warranty

    Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645F 02-18-13 Page 1 of 2 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 5 SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645F 02-18-13 Page 2 of 2 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 6: Product Specifi C Information

    This appliance is equipped with 5 mm ceramic glass. Re- place glass only with 5 mm ceramic glass. Please contact your dealer for replacement glass. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 7: Important Safety And Operating Information

    • Install a switch lock or a wall/remote control with child are contacting the top of the fi rebox. Call a qualifi ed service protection lockout feature. technician to service the appliance. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 8: General Operating Parts

    24 in. 18 in. 169°F 12 in. 6 in. MEASUREMENTS FROM TOP EDGE OF THE OPENING APPLIANCE FRONT Figure 3.3. Wall Surface Temperatures Above Appliance Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 9 Increase “A” dimension. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.4. Good Faith TV Guidelines Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 10: Before Lighting Appliance

    WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fi replace with fi xed glass assembly removed. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 11: Lighting Instructions (Ipi)

    Propane Installation code, CSA B149.1. tions accompanying appliance. For additional information on operating your 593-913i Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 12: Appliance Break-In

    NOTICE! Open windows for air circulation during fi re- place break-in. • Some people may be sensitive to smoke and odors. • Smoke detectors may activate. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 13: Operation During A Power Outage

    110-120 VAC power. 3.5 Control Cavity Location BATTERY TRAY 3.6 Battery Tray Location - Top View Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 14: Detailed Component Operating Instructions - Intellifire™ Plus

    IntelliFire™ Plus remote control. Follow in- structions included with the installed control. MODULE SELECTOR SWITCH FLAME HI/LOW STATUS NG/LP GAS-TYPE SWITCH INDICATOR LED SELECTOR SWITCH Figure 3.7 Control Module Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 15: Maintenance And Service

    3. Assure proper left and right placement of glass and kept clean. engage all four spring latches. CAUTION! Risk of Burns! The fi replace should be turned off and cooled before servicing. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 16: Remote Control

    • Inspect draft shield to verify it is not damaged or missing. • Check that louvers are not blocked. • Vacuum and dust surfaces. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 17: Maintenance Tasks: Qualifi Ed Service Technician

    • Remove all foreign objects. • Verify unobstructed air circulation. Figure 4.2 IPI Pilot Flame Patterns Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 18: Frequently Asked Questions And Troubleshooting

    Contact your dealer for additional information regarding operation and troubleshooting. Visit www.heatnglo.com to locate a dealer. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 19: Troubleshooting

    Verify that 1.5 to 1.8 VDC is supplied to pilot solenoid from module. If below 1.5 volts, replace module. If 1.5 volts or greater, replace valve. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 20 fl ame sensing rod. Verify continuity with a multi-meter with ohms set at lowest range. Replace pilot if any damage is detected. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 21: Reference Materials

    After a qualifi ed service technician has installed the Heat-Zone Kit, follow the instruction supplied with the kit ® for operation. See your dealer if you have questions. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 22: Service Parts

    LED Light Assembly 2312-014 13.1 LED 12V Power Supply 2273-308 13.2 Cord Assembly 2101-084 13.3 AUX RC300 2166-335 Additional service part numbers on following page. 8/14 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 23 LED Light Assembly 2312-014 13.1 LED 12V Power Supply 2273-308 13.2 Cord Assembly 2101-084 13.3 AUX RC300 2166-335 Additional service part numbers on following page. 8/14 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 24 LED Light Assembly 2300-014 13.1 LED 12V Power Supply 2273-308 13.2 Cord Assembly 2101-084 13.3 AUX RC300 2166-335 Additional service part numbers on following page. 8/14 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 25 LED Light Assembly 2300-014 13.1 LED 12V Power Supply 2273-308 13.2 Cord Assembly 2101-084 13.3 AUX RC300 2166-335 Additional service part numbers on following page. 8/14 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 26 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 1A fuse, 3/4” long Additional service part numbers on following page. Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 27 Conversion Kit NG MEZZO36 LPK-4836 Conversion Kit LP MEZZO48 LPK-6048 Pilot Orifi ce, NG 593-528 Pilot Orifi ce, LP 593-527 Regulator, NG NGK-DXV-50 Regulator, LP LPK-DXV-50 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
  • Page 28: Contact Information

    5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending. 2000-945B Printed in U.S.A. - Copyright 2014 Heat & Glo • MEZZO36, MEZZO36ST, MEZZO48, MEZZO48ST Owner’s Manual • 2300-971 Rev. C • 8/14...
