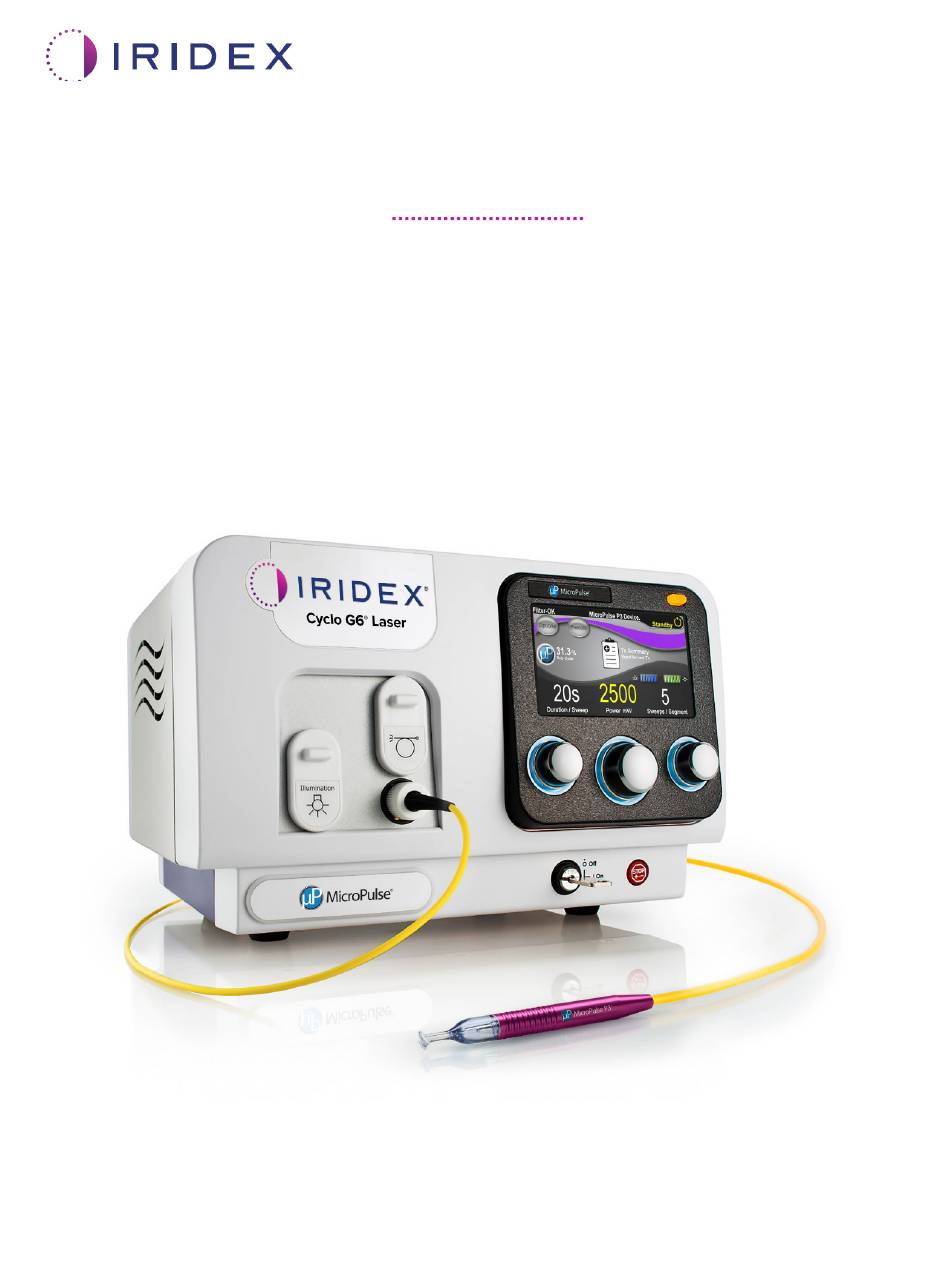

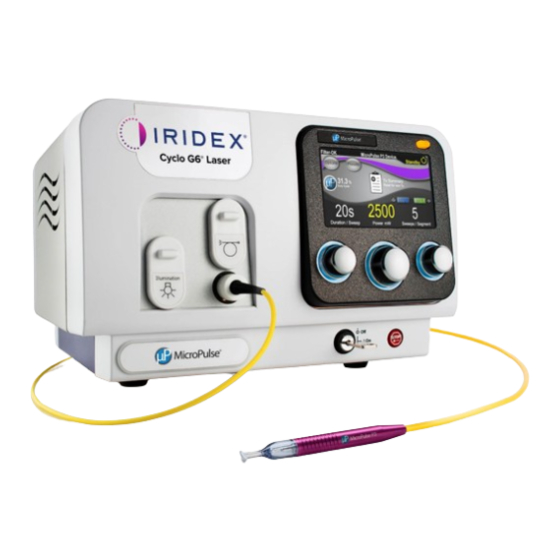

- Page 1 Cyclo G6 ® Laser with Sweep Management Software for MicroPulse ® Transscleral Laser Therapy Provides information on procedure-specific screens, audible tones, and summary of patient treatment parameters User Guide: Cyclo G6 Laser with Sweep Management Software, PN 88199 Rev A...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ......................1 1.1 Purpose of the User Guide ......................1 1.2 Intended Use and Indications for Use ..................1 1.3 Contents of the Sweep Management Software Upgrade ............1 2. Overview of Procedure-Specific Screens ..............2 2.1 Set-up Screens .......................... -
Page 3: Introduction
Cyclo G6 Laser System Operator Manual and MicroPulse P3 Delivery Device Instructions for Use (IFU). NOTE: This User Guide is intended to be used in conjunction with the Cyclo G6 Laser System Operator Manual and the MicroPulse P3 Delivery Device IFU. -
Page 4: Overview Of Procedure-Specific Screens
Please refer to the Cyclo G6 Laser System Operator Manual and the MicroPulse P3 Delivery Device IFU for information on the general operation and maintenance of the Cyclo G6 laser console and MicroPulse P3 Probe, including a description of the screens that are common to both the software upgrade and the standard software. -
Page 5: Micropulse-Related Programmable Screens
2.1.2 MicroPulse-Related Programmable Screens The MicroPulse Duty Cycle Settings and the MicroPulse Preset Screen in the software upgrade differ from the standard software provided with the Cyclo G6 laser, as shown below. 2.1.2.1 Duty Cycle Settings Standard Software Software Upgrade 5%, 10%, 15% 5%, 15%, 31.3%... -
Page 6: Treat Screen
2.2 Treat Screen The Treat Screen is displayed when the user presses the Standby/Treat button to enter Treat Mode. There are no programmable fields on the Treat Screen. The Treat Screen allows the user to track the progress of a treatment segment (i.e., quadrant or hemisphere). - Page 7 Treatment Summary Screen. * The MicroPulse duty cycle defaults at 31.3% when a MicroPulse P3 Probe is connected to the Cyclo G6 laser. User Guide: Sweep Management Software Upgrade for MicroPulse TLT, PN 88199-EN Rev B...
- Page 8 The Treat Screen displays the following fields: Treat Screen • Power Its value is automatically transferred from the “Power” field on the Standby Screen. • Sweep Duration Remaining (Stopwatch) o Its value is automatically transferred from the “Duration/Sweep” field on the Standby Screen.
-
Page 9: Audible Tones
The Treatment Summary Screen displays a summary Treatment Summary Screen of the MicroPulse TLT treatment delivered, including: • Total Segments • Total Duration in seconds • Total Number of Sweeps • Duration per Sweep • Treatment Power • Number of Sweeps per Segment The Total Segments, Total Duration, and Total Number of Sweeps are cumulative until the Reset and Close button is selected. -
Page 10: Operation
4.1 Setting Parameters 4.1.1 Load Default Parameter Options After setting up the Cyclo G6 laser, turning on the laser, and connecting the MicroPulse P3 Probe, a Load Defaults pop-up window appears with the options to load or to cancel default treatment values. -
Page 11: Press The "Tx Summary" Icon To Reset Treatment Summary Values To Zero
4.1.2 Press the “Tx Summary” icon to reset treatment summary values to zero Select the “Tx Summary” icon in the Standby Screen to access the Treatment Summary Screen. In the Treatment Summary Screen, select the “Reset and Close” button. It will reset the total segment, total sweeps, and total duration values to zero. - Page 12 Duration/Sweep field Values range from 5 seconds to 40 seconds in 5-second increments. Use the left control knob to enter the duration (velocity) per sweep in the “Duration/Sweep” field. The value will be transferred to the “Sweep Duration Remaining” field (stopwatch countdown timer) in the Treat screen. Power field Values range from 50 mW to 3,000 mW in 10-mW increments.
-
Page 13: Delivering Treatment
4.2 Delivering Treatment Note: Before delivering treatment, please refer to the Cyclo G6 Laser System Operator Manual and the MicroPulse P3 Delivery Device IFU for delivery instructions, including safety, warnings, and cautions. 1. Press the Treat/Standby button to go to the Treat Screen. - Page 14 Treat: The laser is firing (the footswitch has been pressed). 2. Press the footswitch to activate the laser according to the instructions in the Cyclo G6 Laser System Operator Manual. If you need to interrupt the treatment, release the footswitch.
-
Page 15: Advance To Next Segment
4.2.1 Advance to Next Segment When a user completes treatment of a segment (i.e., quadrant or hemisphere), the stopwatch changes into a "Next Segment" button. To treat the next segment, press the Next Segment button to reset the "Sweep Duration Remaining,"... -
Page 16: Viewing And Documenting Patient Treatment Information
4.3 Viewing and Documenting Patient Treatment Information 1. At the end of the MicroPulse TLT treatment a. Press the "Tx Summary" icon on the Standby Screen to access the Treatment Summary Screen. Manually document the treatment information in the patient’s record, or take a photo of the Treatment Summary Screen to place in the patient’s record. -
Page 17: Troubleshooting
User is aware of eye Laser probe is Press OK. safety requirement. connected. NOTE: Reference your Cyclo G6 Laser System Operator Manual for guidance on all other troubleshooting and system error messages. 6. Contact Information Iridex Corporation 1212 Terra Bella Avenue... - Page 18 Iridex, the Iridex logo, MicroPulse, Cyclo G6, and MicroPulse P3 are registered trademarks of Iridex. © 2022 Iridex Corporation. All rights reserved. PN 88199-EN Rev B 02.2022 User Guide: Sweep Management Software Upgrade for MicroPulse TLT, PN 88199-EN Rev B...
