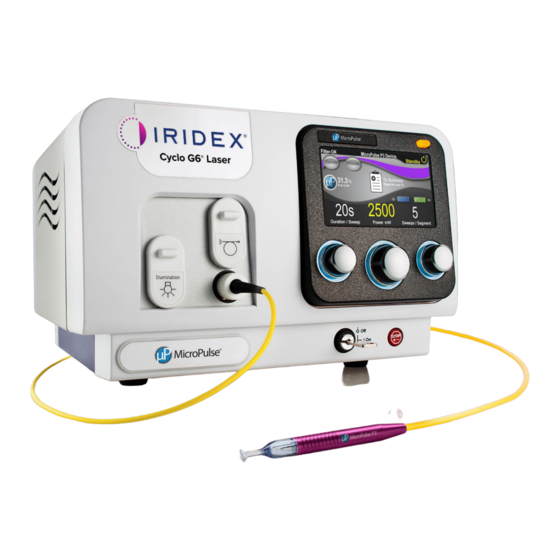

Iridex Cyclo G6 Laser Quick Manual

1
B
C
A
2
Select "CANCEL" to retain parameters used in prior
treatment. A pop-up screen will appear (Step 3).
3
Quick-Guide: Using the Cyclo G6® Laser with Sweep
Management Software and the MicroPulse P3® Delivery Device*
Turn key to "ON".
Wait for the initialization
to complete. Connect
MicroPulse P3 Probe.
Select "OK" to set new
parameters. A pop-up
screen will appear (Step 3).
Press "OK".
To set new parameters,
go to Step 4.
To retain your parameters,
go to Step 5.
Setting Treatment Parameters
4
Set parameters using the Preset Menu or by manual entry.
Preset Option
A
B
* Before delivering treatment, please refer to the "User Guide: Cyclo G6
Software Upgrade for MicroPulse TLT," the "Cyclo G6 Laser System
Operator Manual," and the "MicroPulse P3 Delivery Device Instructions for
Use" for delivery instructions, including safety, warnings, and cautions.
Manual Option
SEE MORE STEPS
ON BACK PAGE
PAGE 1 OF 2
