Technical Support and E-Warranty Certificate www.vevor.com/support

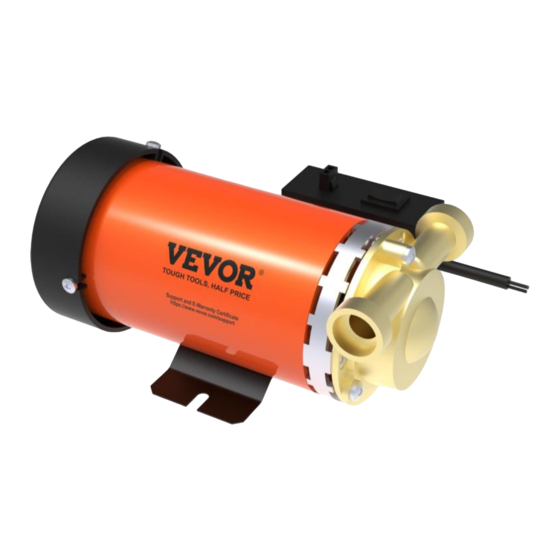

AUTOMATIC BOOSTER PUMP
INSTRUCTION MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR JC15G-15
Summary of Contents for VEVOR JC15G-15
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support AUTOMATIC BOOSTER PUMP INSTRUCTION MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if...
-
Page 4: Installation Sketch Map
Please read this guide carefully before you use this type of pump. INSTALLATION SKETCH MAP It is forbidden to install the motor upside down or tilt down to prevent water leakage from entering the motor and causing a short circuit and burning the motor. USE OCCASION ·Please don't install the pumps at the outlet of the water heater ·Please don't install the taps at the inlet of the water pumps... -
Page 5: Working Condition
WORKING CONDITION 1. Medium transportation temperature: 2℃~+95℃ 2. Max circumstance temperature: +40℃ 3. Medium condition: clean, no solid substance, no mineral & oil substance, no stickiness. 4. Chem. condition: near neutral, non-cauterization, non-explosion similar water (glycol max-content: 30%). 5. If you want to use other kinds of liquids, please consult the factory. 6. -
Page 6: Main Features
▼When the water pump is installed together with the well and river, it is easy to absorb sand, and the end of the piping needs to be installed with a filtration device. Filters are available at the pump sales office. 3. -
Page 7: Special Warning
SPECIAL WARNING Before use, the pump must be reliable earth touch. Don´t change the three-core wiring plug to avoid power leakage. To make sure everything is safe, please u must install some security measures, such as the power leakage broker or electric shock blocker and so on. 1. - Page 8 PRECAUTION 1. When connecting to the power supply, let the pump work for several seconds to inspect whether the start-up is normal or not. But don’t let the pump work with no water for a long time to affect the ceramic bearing span, special the self-auto water pump.
-
Page 9: Performance Parameter
PERFORMANCE PARAMETER Voltage/ Max. Flow Max. Head Model Power (W) Speed (r/min) (V/ Hz) (L/min) JC15G - 15 110/60 3500 INSTALLATION DIMENSION... - Page 10 USUAL FAULT & MEASURE FAULT REASON PROCESSING METHOD The pump does 1.Air leakage at the inlet pipe interface 1.Fasten the pipeline-interface not discharge 2.Damaged seals 2.Replace the seal water 3.Bottom valve and impeller are blocked or 3.Remove sundries or replace the bottom damaged valve and impeller 4.Insufficient water supply...
-
Page 11: Product Accessories
4. DN20 to DN15 water flow switch *1; 5. Filter screen. Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to the USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America Made In China... - Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
