AIO-CM4-156
AIO-CM4-156 (CS19108RA4156A-N111) is an all-in-one desktop
computer based on Raspberry Pi CM4 – easy to use, perfect for
developers and makers who are accustomed to the Raspberry Pi
and are looking for a computer they can use on a daily basis.
It is fully compatible with the Raspberry Pi 4 Linux
distribution and offers the full Raspberry Pi GPIO connector
for further expansion.
User Manual
Release 1.0
Advertisement
Table of Contents
Related Manuals for Chipsee AIO-CM4-156
Summary of Contents for Chipsee AIO-CM4-156
- Page 1 AIO-CM4-156 User Manual Release 1.0 AIO-CM4-156 (CS19108RA4156A-N111) is an all-in-one desktop computer based on Raspberry Pi CM4 – easy to use, perfect for developers and makers who are accustomed to the Raspberry Pi and are looking for a computer they can use on a daily basis.
-
Page 3: Hardware Features
Hardware Features Key Features: CPU Module Raspberry Pi CM4 Lite, Quad Cortex-A72 at 1.5GHz TF card slot for boot. Internal M.2 NVMe connector Storage for SSD card Default 2GB, can also be 1/4/8GB based on CM4 Lite onboard 15.6 inch IPS Display LCD, 1920*1080 Pixel Resolutions, Brightness: 250nit Optional Ten-Point Capacitive Touch with 1.1mm... - Page 4 2 x USB 3.0 Host connector, 1 Type-C USB Slave connector 1 Channel Giga LAN HDMI HDMI 2.0 connectors, slave HDMI port for CM4 2W internal Stereo Speaker, 3.5mm Audio Out Audio Connector Buzzer Internal Buzzer High accuracy internal RTC. The time can be kept for one week after power off.

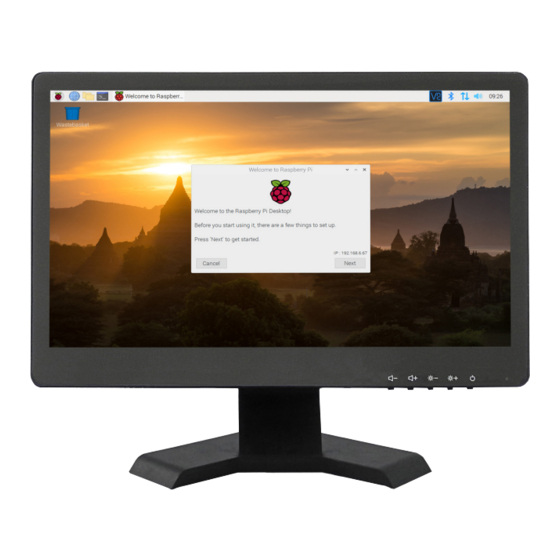

- Page 5 CS19108RA4156A- N111 Figure 1: Front View (Debian)
-
Page 6: Power Input Connector
Figure 2: Back View Figure 3: Side View with available connectors Power Input Connector The product CS19108RA4156A uses a power input DC of 12V. The... - Page 7 total power consumption is typically about 8.4W. The power supply connector must be 2.1mm I.D x 5.5mm O.D x 9.5mm. Figure 4 shows the dimensions of a suitable DC power adapter connector. Figure 4: Power Adapter Connector USB HOST and Type C This product has two channels of USB3.0 host and 1 channel Type-C connector as shown in Figure 3.
-
Page 8: Audio Out Connector
This product features a Giga LAN connector (refer to Figure TF Card There is also a TF card slot onboard, as shown in Figure 3, that can only be used with CM4 Lite modules. Audio Out Connector As well as one audio out connector (refer to Figure 3). Camera The product CS19108RA4156A supports the camera on the front panel, but it is not mounted by default. - Page 9 Figure 5: 40-pin Expansion Connector Raspberry Pi Hat adapter...
-
Page 10: Status Led
The product also has an available I/O connector that is 100% compatible with any Raspberry Pi cape, or extensions, making the AIO-CM4-156 a perfect fit with your existing tools. The product also comes with an adapter, with a standard Raspberry Pi HAT pinout, to add more flexibility to your project. - Page 11 There are 5 buttons on the front panel, as shown in Figure 7, that work as Power, Brightness+, Brightness-, Audio output Volume+, Volume-. The product CS19108RA4156A supports 2 boot modes, auto boot, and manual boot. The default boot mode is auto boot mode. The boot mode can be changed by using Software or by pushing Volume+ and Volume- buttons at the same time before power on, and releasing it 3 seconds after power on to toggle, as Table...
- Page 12 Table 2: Button Functions Functions before the Functions after the Buttons system boot system boot Push after power on Push after the system and release after 3 booted and release Power seconds will boot the after 3 seconds will system. close the system.
- Page 13 Figures 7~9 show. The product CS19108RA4156A-N111 can be mounted by the VESA mounting method using 75mm*75mm holes on the backside. Figure 8: Front Panel Dimension...
- Page 14 Figure 9: Backside Dimension Figure 10: Side Dimension Mounting 1. Stand Mounting is default, as Figure 11 shows:...
- Page 15 Figure 11: Stand Mounting 2. VESA Mounting is shown in Figure 12.
- Page 16 Figure 12: VESA Mounting Chipsee Products Naming Rules CS19108RA4156A-N111 Chipsee Product Abbreviations Horizontal Resolution Means 800 Pixel Means 1024 Pixel Means 1280 Pixel Means 1440 Pixel Means 1920 Pixel...
- Page 17 Vertical Resolution Means 480 Pixel Means 600 Pixel Means 768 Pixel Means 800 Pixel Means 900 Pixel Means 1024 Pixel Means 1080 Pixel Based on Raspberry Pi CM4 LCD Dimension Means 5.0 Inch Means 7.0 Inch Means 8.0 Inch Means 9.7 Inch Means 10.1 Inch Means 10.4 Inch Means 12.0 Inch...
-
Page 18: How To Get Support
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution. If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.
