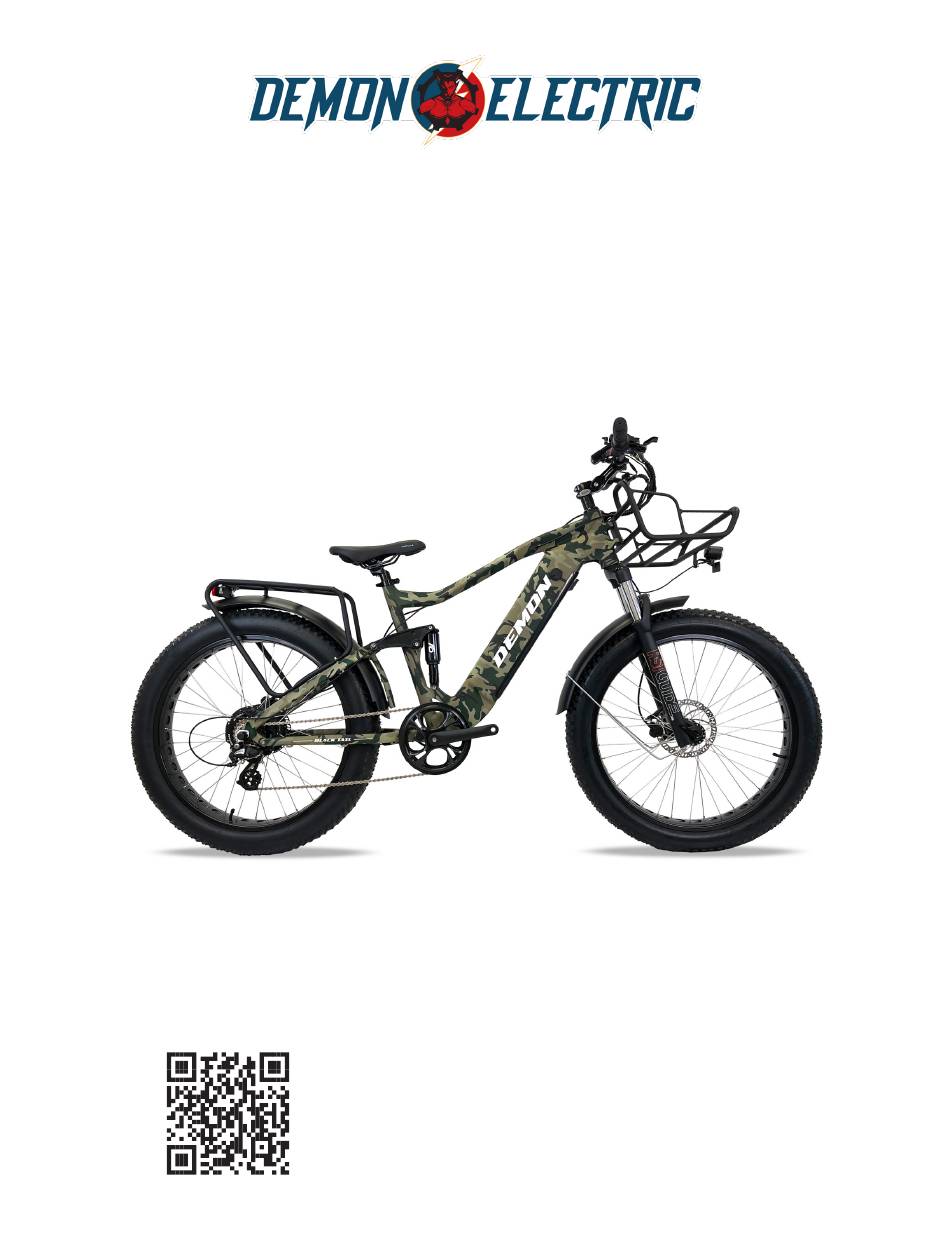

- Page 1 BLACKTAIL Installation Manual Scan to watch assembly video...
-
Page 2: Table Of Contents
OWNER’S MANUAL First of all, we would like to thank you for choosing the BLACKTAIL electric bike. We warmly welcome you to our Demon Electric family. We wish you enjoy the numerous kilometers and happy moments with your new bike. - Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
- Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Blacktail Manual |...
-
Page 5: Assembly Instructions
Charger vi) Assembly Tools 15 mm 6 mm 10 mm 5 mm 4 mm 8 mm 3 mm 13 mm Wrench Screw Allen Key Driver vii) Key for Battery viii) Front Basket ix) Kickstand x) Seat Blacktail Manual |... -
Page 6: Install Kickstand
INSTALL KICKSTAND Install kickstand with the 5mm Allen key. Ensure kickstand is behind the bracket on the left side of the bike during installation. 5 mm Place kickstand behind metal flap. Turn bolts clock-wise to tighten. Blacktail Manual |... -
Page 7: Install Handle Bars
Make sure the handlebar is centered. 4 mm Fine tune the position to align with your arm when seated, stem rise angle can be adjusted by loosen the big side screw with the 6mm Allen key. 6 mm Blacktail Manual |... - Page 8 Fasten the wheel hub using the quick release handle. Smaller side of spring to be facing opposite the wheel. Ensure brake disk and brake caliper are aligned. Blacktail Manual |...
- Page 9 INSTALL FENDER & FENDER SUPPORT Mount the top bracket and two supporting rods of the front fender to the fork with provided bolts using 4mm Allen key and 10mm wrench. Ensure the bolt is on the outside 10 mm 4 mm Blacktail Manual |...
-
Page 10: Install Headlight
Mount the front basket to the flange on the front of the bike with provided bolts using the 5mm allen key. INSTALL HEADLIGHT Install the headlight to the front basket with provided bolt using the 5mm Allen key. Blacktail Manual |... -
Page 11: Install Pedals
The left pedal is attached by turning it counter clockwise and the right pedal is tightened by turning it clock- wise. Make sure the pedals are tightly attached to the crank arms to prevent stripping. (See picture below) Blacktail Manual |... -
Page 12: Install Seat
Be sure the minimum insertion marks do not go past the top of the seat clamp and are not visible. CONNECT CONNECTORS Connect the connectors near handle bar, make sure arrows are pointing towards each other when connecting. Locate the battery key near handle bar and cut the key from zip tie. Blacktail Manual |... -
Page 13: Removing Battery
REMOVING BATTERY To remove the battery, insert and turn the provided key (located on the handebar) to unlock, and pull the lever out. Twist lever and pull battery out to remove. Blacktail Manual |... -
Page 14: Battery Charging
Your BLACKTAIL battery arrives with 70% charge. It is recommended that you fully charge the battery before your first use. The BLACKTAIL battery may be charged while on the bike or removed and charged at a location away from the BLACKTAIL. To charge the battery please follow the steps below: •... -
Page 15: Display
• DST indicator (needs to be supported by battery communication) • Self-Testing • Speed limit value indicator • Error code indicator. • Light sensor (Optional) • Software upgraded: Software can be upgraded through UART. • USB charging port: 5V/500mA Blacktail Manual |... - Page 16 *If the display has been set password power on, you need to input the right password before start. Assist level operating Short press UP/DOWN button can change the assist level. Top assist level is 9, 0 for neutral. Level quantities can be adjusted according to the customer requirements. Blacktail Manual |...
- Page 17 Press and hold UP button for 1 second can turn on/off the headlight, and the screen will switch to the corresponding mode. *The motor does not work when the battery voltage is low, display still can keep the headlight on for a while when E-bike is in riding. Daytime Mode Night Mode Blacktail Manual |...
- Page 18 * Display will automatically quit menu when there is no operation for 30 seconds. * For safety reasons, display can’t get into MENU when riding. * Display will quit MENU when start riding. The e order of parameters is as follow. Blacktail Manual |...
- Page 19 Language: Default EN, Unadjustable System: Press Up / Down button to switch between Metric / Imperial. Blacktail Manual |...
- Page 20 Auto off: Press UP/DOWN button to change the auto power off time, from 1 to 9, the number represent time (minutes) to shut down, default value is 5 minutes. Scenes: Press UP/DOWN button to change the scenes, Digital / Analog(default). Blacktail Manual |...
- Page 21 Battery Ind: Press UP/DOWN button to change the battery indicator, Voltage / Percentage / OFF. *Accurate percentage needs communication with battery. Pow Ind: Press UP/DOWN button to change the Power indicator, Power / Current. * This data represents power output of the battery (not motor). Blacktail Manual |...
- Page 22 Start input ON, you must input right password before power on, password is accorded to your setting. You need to input the right password before start with 30 seconds, display will power off automatically if the password was wrong. Blacktail Manual |...
-
Page 23: Error Code Define
Information: Show information of the E-bike. ERROR CODE DEFINE 850C can show warning message, icon shows on the screen, and show error code at the bottom of the screen, error code from 01~25, definition see the table below. Blacktail Manual |... -
Page 24: Warnings And Safety
Website: www.demonelectric.ca Address: 25 A East Pearce St Unit 2, Richmond Hill, ON L4B 2M9 Toll Free: 1-855-373-4685 Telephone: 905 881 9510 Blacktail Manual |...
