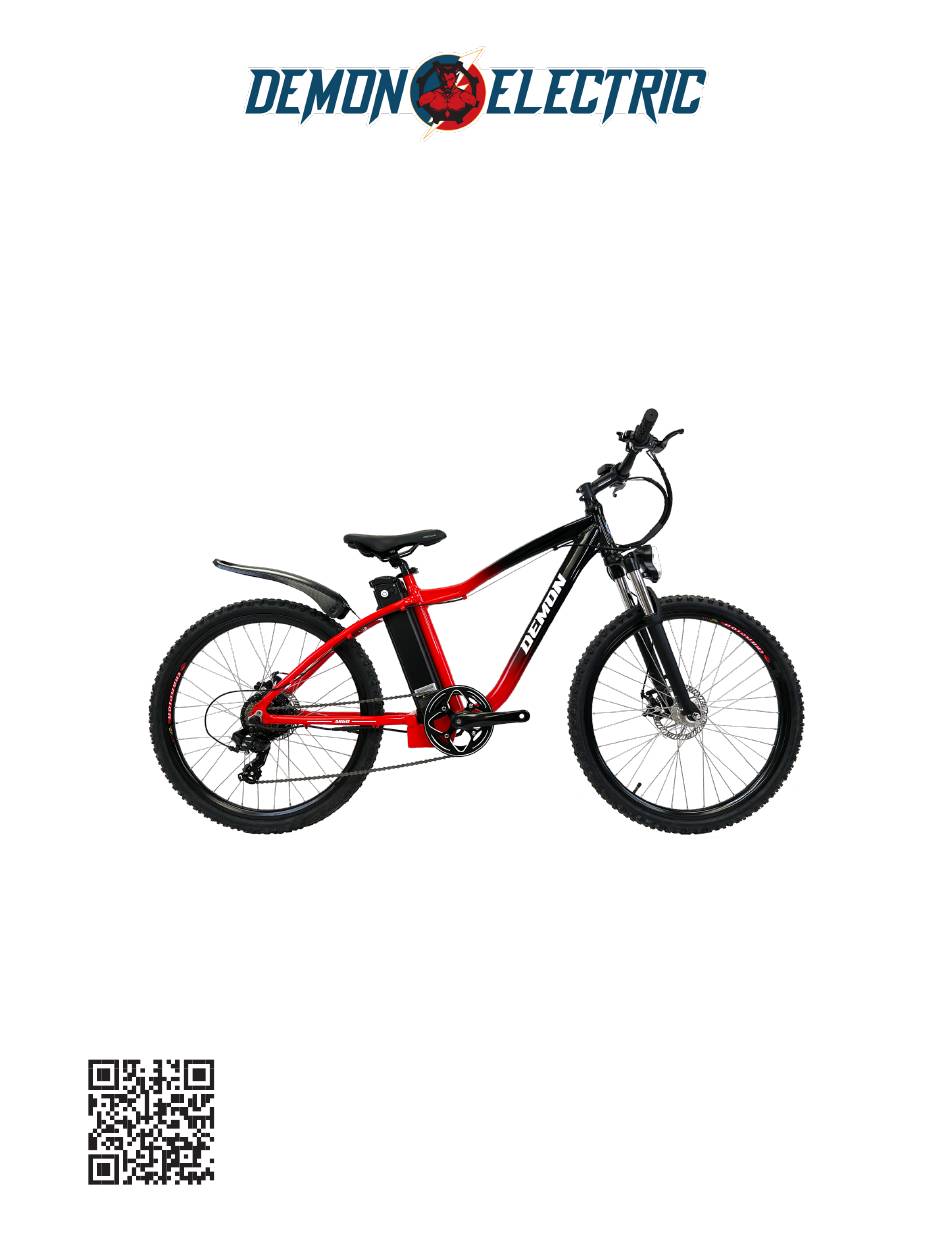

- Page 1 Installation Manual Scan to watch assembly video...
-
Page 2: Table Of Contents
OWNER’S MANUAL First of all, we would like to thank you for choosing the ARGO electric bike. We warmly welcome you to our Demon Electric family. We wish you enjoy the numerous kilometers and happy moments with your new bike. - Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
- Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Argo Manual |...
-
Page 5: Assembly Instructions
Front Wheel iii) Pedals iv) Charger v) Assembly Tools 8 mm 13 mm 10 mm 6 mm 5 mm 3 mm 4 mm 8 mm 15 mm Screw Wrench Allen Key Driver vi) Kickstand vii) Seat Argo Manual |... -
Page 6: Install Kickstand
Place the kickstand underneath the hole between the battery and the rear wheel. Insert the bolt through the hole from above and tighten the bolt onto the kickstand with the 8mm Allen key. Turn allen key clock-wise to tighten. 8 mm Argo Manual |... -
Page 7: Install Pedals
The left pedal is attached by turning it counter clockwise and the right pedal is tightened by turning it clock- wise. Make sure the pedals are tightly attached to the crank arms to prevent stripping. (See picture below) Argo Manual |... -
Page 8: Install Handlebars
INSTALL HANDLE BARS Tighten the 4 pinch screws with the 4mm Allen key. Loctite is recommend on the screw. Align the brake controls so they are facing slightly downward. Make sure the handlebar is centered. 4 mm Argo Manual |... -
Page 9: Install Headlight
INSTALL HEADLIGHT Install the headlight and fender to the front fork with the given bolt and nut, tighten with the 5mm Allen key. 5 mm Argo Manual |... -
Page 10: Install Front Wheel
Install the front wheel between the front fork, make sure to align the brake disk with the brake caliper, Avoid squeezing brakes and ensure the brake disc is not rubbing against the wheel. Fasten the wheel hub using the provided washer and fasteners. Use the 15 mm wrench to tighten the fasteners into place. 15 mm Argo Manual |... -
Page 11: Install Rear Fender
REAR FENDER INSTALLATION Mount the rear fender onto the frame near the rear wheel using the provided hardware. Tighten the hardware into place using the 5 mm allen key and 10 mm wrench. 10 mm 5 mm Argo Manual |... -
Page 12: Battery Removal And Installation
“ON”: The bike is powered on, and the battery locks on the frame. The key cannot be removed at this time. “OFF”: The bike is powered off, but the battery is locked on the frame. The key can be removed at this time. Argo Manual |... -
Page 13: Install Seat
SERIAL NUMBER Locate the bike’s serial number on the underside of the controller box. Please note the bike’s serial number and battery serial number on the user manual’s last page in case of stolen or missing. Argo Manual |... -
Page 14: Charging Battery
(There is one red light + two green lights when fully charged). 4. Battery storage outside of the ebike If the battery is not used for an extended period, charge it fully and recharge it every two months.Store it in a cool, dry place. Argo Manual |... -
Page 15: Operating Instructions
A. Throttle: please twist the throttle. It is on the right side of the handlebar. B. Pedal Assist: please lift the rear wheel and turn the pedal by hand. The motor will work one time once you turn the crank 3/4-cycle. Argo Manual |... -
Page 16: Display Instrument Settings
Mode: Press the “mode” button to select the pedal assistant power with pedals and throttle (Levels 1-5). Power: Power is indicating the battery power. It should be four red LED when fully charged. Light: Turn on the front headlight, press the “ON/OFF” button, the head light will be turned ON or OFF. Argo Manual |... -
Page 17: Troubleshooting
Please picture the testing results and send them to us. It will help us for solving your problem asap. Argo Manual |... - Page 18 The brake wires need to be replaced. If it still doesn’t work, it means the controller needs to be replaced. Please video your problem, and send the video to us. If it still doesn’t work after replacing the brake wire or controller, please video how you do the troubleshooting, and send the video to us. Argo Manual |...
-
Page 19: Warnings And Safety
Website: www.demonelectric.ca Address: 25 A East Pearce St Unit 2, Richmond Hill, ON L4B 2M9 Toll Free: 1-855-373-4685 Telephone: 905 881 9510 Argo Manual |...
