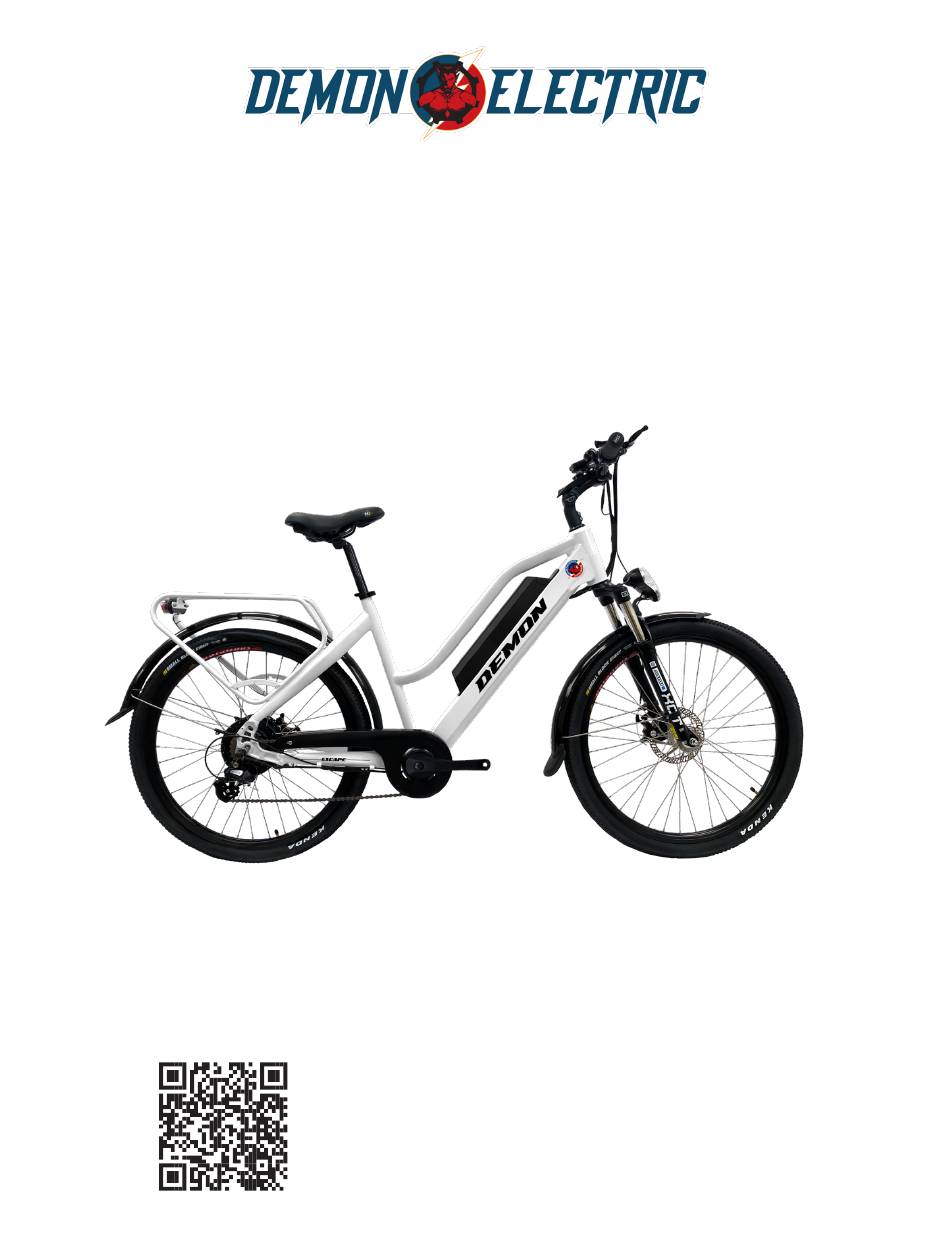

  • Page 1 ESCAPE Installation Manual Scan to watch assembly video...
  • Page 2: Table Of Contents

    OWNER’S MANUAL First of all, we would like to thank you for choosing the ESCAPE electric bike. We warmly welcome you to our Demon Electric family. We wish you enjoy the numerous kilometers and happy moments with your new bike.
  • Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
  • Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Escape Manual |...
  • Page 5: Assembly Instructions

    Front Fender iv) Pedals v) Charger vi) Assembly Tools 15 mm 6 mm 10 mm 5 mm 4 mm 8 mm 3 mm 13 mm Wrench Screw Allen Key Driver vii) Key for Battery viii) Kickstand ix) Seat Escape Manual |...
  • Page 6: Install Kickstand

    INSTALL KICKSTAND Install kickstand with the 5mm Allen key. Ensure kickstand is behind the bracket on the left side of the bike during installation. 5 mm Bracket on left side of the bike. Turn bolts clock-wise to tighten. Escape Manual |...
  • Page 7: Install Headlight And Fender

    Install the headlight and fender to the front fork with the given long bolt and nut, tighten with the 5mm Allen key and 10mm wrench. 10 mm 5 mm Long bolt Install fender support to the bracket on the fork using the 4 mm allen key and 8 mm wrench. 8 mm 4 mm fender support Escape Manual |...
  • Page 8: Install Front Wheel

    Fasten the wheel hub using the accompanying screws and washers. Remove screws before installing wheel to front fork. Re-connect screws in the same order once wheel is properly fitted into place. Tighten screws with 15mm wrench. 15 mm Escape Manual |...
  • Page 9: Install Handle Bars

    Ensure there is no up and down play between the suspension fork and the frame tube. 5 mm Rotate the handlebar at a comfortable angle, then tighten the long bolt on the stem with the 5mm allen key to secure the handlebar. 6 mm Escape Manual |...
  • Page 10: Install Pedals

    The left pedal is attached by turning it counter clockwise and the right pedal is tightened by turning it clock- wise. Make sure the pedals are tightly attached to the crank arms to prevent stripping. (See picture below) Escape Manual |...
  • Page 11: Install Seat

    Be sure the minimum insertion marks do not go past the top of the seat clamp and are not visible. CONNECT CONNECTORS Connect the connectors near handle bar, make sure arrows are pointing towards each other when connecting. Locate the battery key near handle bar and cut the key from zip tie. Escape Manual |...
  • Page 12: Removing Battery

    REMOVING BATTERY To remove the battery, insert and turn the provided key (located on the handebar) to unlock, and pull the lever out. Pull battery up to The serial number is remove. located behind the battery. Escape Manual |...
  • Page 13: Battery Charging

    Your ESCAPE battery arrives with 70% charge. It is recommended that you fully charge the battery before your first use. The ESCAPE battery may be charged while on the bike or removed and charged at a location away from the ESCAPE. To charge the battery please follow the steps below: •...
  • Page 14: Display

    • DST indicator (needs to be supported by battery communication) • Self-Testing • Speed limit value indicator • Error code indicator. • Light sensor (Optional) • Software upgraded: Software can be upgraded through UART. • USB charging port: 5V/500mA Escape Manual |...
  • Page 15: Tft Screen Instructions

    TFT SCREEN INSTRUCTIONS Your ESCAPE is equipped with an LCD meter that monitors pedal assist, speed, odometer, trip distance, riding time, and battery energy level. To turn the meter on, make sure the battery is fully inserted into the ESCAPE battery holder.
  • Page 16 Press and hold UP button for 1 second can turn on/off the headlight, and the screen will switch to the corresponding mode. *The motor does not work when the battery voltage is low, display still can keep the headlight on for a while when E-bike is in riding. Daytime Mode Night Mode Escape Manual |...
  • Page 17 * Display will automatically quit menu when there is no operation for 30 seconds. * For safety reasons, display can’t get into MENU when riding. * Display will quit MENU when start riding. The e order of parameters is as follow. Escape Manual |...
  • Page 18 Language: Default EN, Unadjustable System: Press Up / Down button to switch between Metric / Imperial. Escape Manual |...
  • Page 19 Auto off: Press UP/DOWN button to change the auto power off time, from 1 to 9, the number represent time (minutes) to shut down, default value is 5 minutes. Scenes: Press UP/DOWN button to change the scenes, Digital / Analog(default). Escape Manual |...
  • Page 20 Battery Ind: Press UP/DOWN button to change the battery indicator, Voltage / Percentage / OFF. *Accurate percentage needs communication with battery. Pow Ind: Press UP/DOWN button to change the Power indicator, Power / Current. * This data represents power output of the battery (not motor). Escape Manual |...
  • Page 21 Start input ON, you must input right password before power on, password is accorded to your setting. You need to input the right password before start with 30 seconds, display will power off automatically if the password was wrong. Escape Manual |...
  • Page 22: Error Code Define

    Information: Show information of the E-bike. ERROR CODE DEFINE 850C can show warning message, icon shows on the screen, and show error code at the bottom of the screen, error code from 01~25, definition see the table below. Escape Manual |...
  • Page 23: Warnings And Safety
