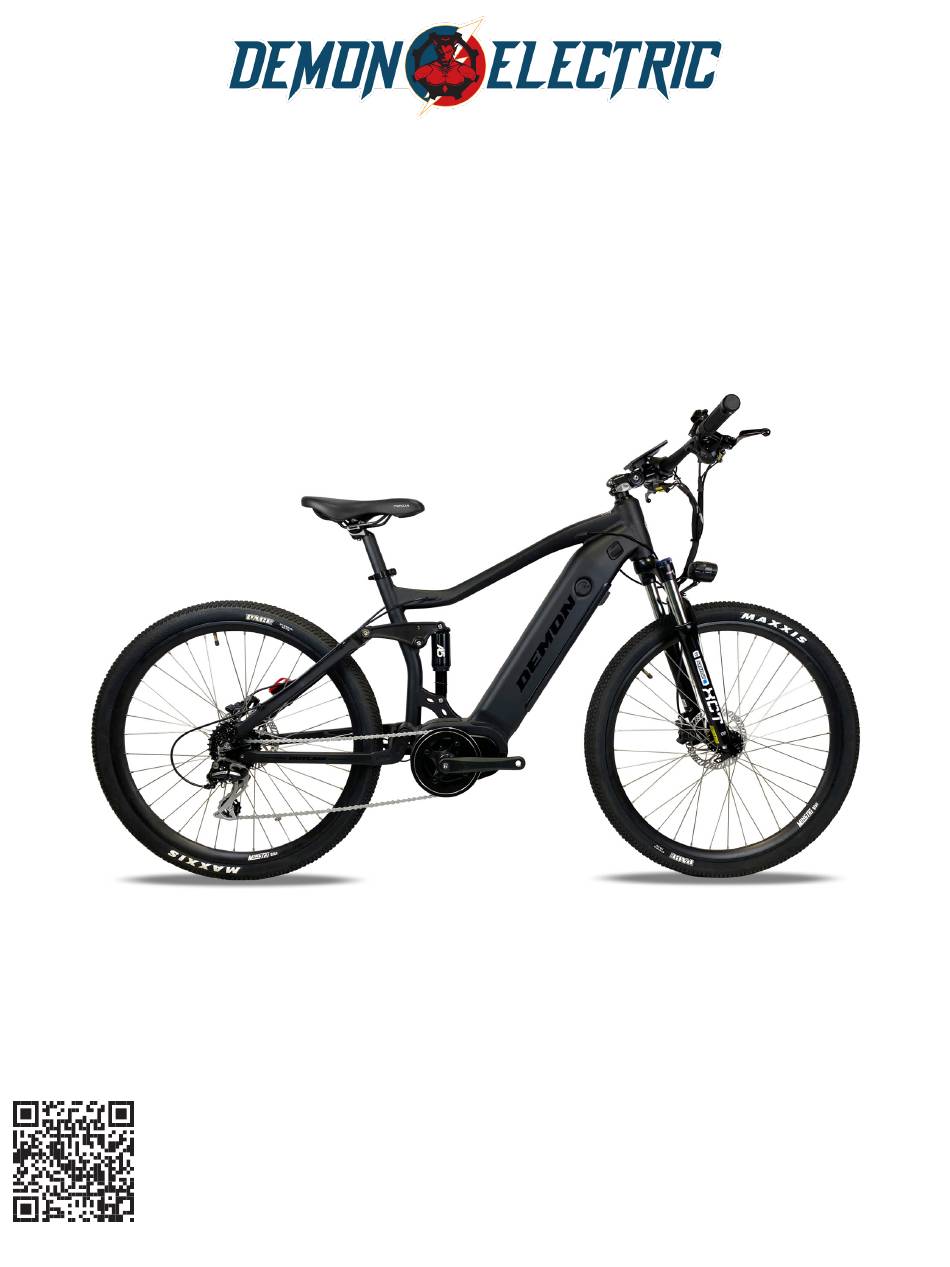

- Page 1 Installation Manual...
-
Page 2: Table Of Contents
OWNER’S MANUAL First of all, we would like to thank you for choosing the OUTLAW electric bike. We warmly welcome you to our Demon Electric family. We wish you enjoy the numerous kilometers and happy moments with your new bike. - Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
- Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Outlaw Manual |...
-
Page 5: Assembly Instructions
Charger vi) Assembly Tools 15 mm 6 mm 10 mm 5 mm 4 mm 8 mm 3 mm 13 mm Wrench Screw Allen Key Driver vii) Key for Battery viii) Tail Light ix) Kickstand x) Seat Outlaw Manual |... -
Page 6: Install Kickstand
INSTALL KICKSTAND Install kickstand with the 5mm Allen key. Ensure kickstand is behind the bracket on the left side of the bike during installation. 5 mm Place kickstand behind metal flap. Turn bolts clock-wise to tighten. Outlaw Manual |... -
Page 7: Install Handle Bars
Make sure the handlebar is centered. 4 mm Fine tune the position to align with your arm when seated, stem rise angle can be adjusted by loosen the big side screw with the 6mm Allen key. 6 mm Outlaw Manual |... -
Page 8: Install Headlight
INSTALL HEADLIGHT Install the headlight to the front fork with the given long bolt and nut, tighten with the 5mm Allen key and 10mm wrench. 5 mm 10 mm Outlaw Manual |... -
Page 9: Install Front Wheel
Fasten the wheel hub using the quick release handle. Smaller side of spring Ensure brake disk and to be facing the wheel. brake caliper are aligned. Closed quick release Open quick release handle. handle. Outlaw Manual |... -
Page 10: Install Pedals
The left pedal is attached by turning it counter clockwise and the right pedal is tightened by turning it clock- wise. Make sure the pedals are tightly attached to the crank arms to prevent stripping. (See picture below) Outlaw Manual |... -
Page 11: Install Seat
Be sure the minimum insertion marks do not go past the top of the seat clamp and are not visible. CONNECT CONNECTORS Connect the connectors near handle bar, make sure arrows are pointing towards each other when connecting. Locate the battery key near handle bar and cut the key from zip tie. Outlaw Manual |... -
Page 12: Install Tail Light
To remove the battery, insert and turn the provided key (located on the handebar) to unlock, and pull the lever out. The serial number is Twist lever and pull located at the bottom battery out to remove. of the bike. Outlaw Manual |... -
Page 13: Battery Charging
Your OUTLAW battery arrives with 70% charge. It is recommended that you fully charge the battery before your first use. The OUTLAW battery may be charged while on the bike or removed and charged at a location away from the OUTLAW. To charge the battery please follow the steps below: •... -
Page 14: Display
Touch and hold (2S) to start the mode “walk assistance”, display symbol. Mode data display: Display current data corresponding to the mode. Riding mode display: Display current riding mode, “SPORT” or “ECO”, can touch and hold (2S) switch the mode. Outlaw Manual |... -
Page 15: Tft Screen Instructions
In the manual gearshift mode, briefly press (<0.5S) to switch the level to change assistance power, the lowest level is level 0, the highest level is level 5. When the display is on, the default mode is level 1, “0” means no power assistance. Outlaw Manual |... - Page 16 Press and hold UP button for 1 second can turn on/off the headlight, and the screen will switch to the corresponding mode. *The motor does not work when the battery voltage is low, display still can keep the headlight on for a while when E-bike is in riding. Daytime Mode Night Mode Outlaw Manual |...
- Page 17 * Display will automatically quit menu when there is no operation for 30 seconds. * For safety reasons, display can’t get into MENU when riding. * Display will quit MENU when start riding. The e order of parameters is as follow. Outlaw Manual |...
- Page 18 Language: Default EN, Unadjustable System: Press Up / Down button to switch between Metric / Imperial. Outlaw Manual |...
- Page 19 Auto off: Press UP/DOWN button to change the auto power off time, from 1 to 9, the number represent time (minutes) to shut down, default value is 5 minutes. Scenes: Press UP/DOWN button to change the scenes, Digital / Analog(default). Outlaw Manual |...
- Page 20 Battery Ind: Press UP/DOWN button to change the battery indicator, Voltage / Percentage / OFF. *Accurate percentage needs communication with battery. Pow Ind: Press UP/DOWN button to change the Power indicator, Power / Current. * This data represents power output of the battery (not motor). Outlaw Manual |...
- Page 21 Start input ON, you must input right password before power on, password is accorded to your setting. You need to input the right password before start with 30 seconds, display will power off automatically if the password was wrong. Outlaw Manual |...
-
Page 22: Error Code Define
Information: Show information of the E-bike. ERROR CODE DEFINE 850C can show warning message, icon shows on the screen, and show error code at the bottom of the screen, error code from 01~25, definition see the table below. Outlaw Manual |... -
Page 23: Warnings And Safety
Website: www.demonelectric.ca Address: 25 A East Pearce St Unit 2, Richmond Hill, ON L4B 2M9 Toll Free: 1-855-373-4685 Telephone: 905 881 9510 Outlaw Manual |...
