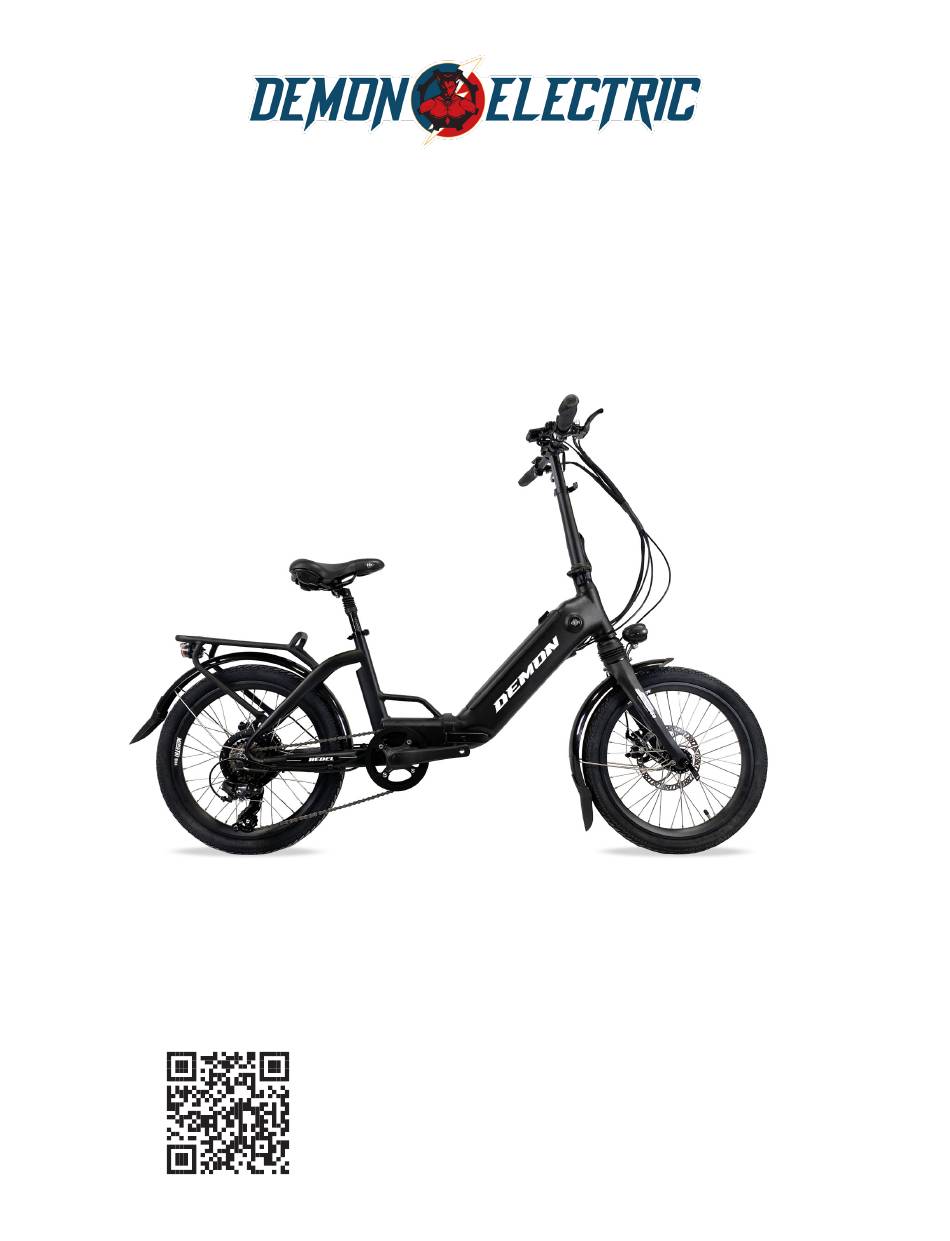

- Page 1 Rebel Installation Manual Scan to watch assembly video...
-
Page 2: Table Of Contents
OWNER’S MANUAL First of all, we would like to thank you for choosing the REBEL electric bike. We warmly welcome you to our Demon Electric family. We wish you enjoy the numerous kilometers and happy moments with your new bike. - Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
- Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Rebel Manual |...
-
Page 5: Assembly Instructions
Pedals v) Charger vi) Assembly Tools 6 mm 15 mm 10 mm 5 mm 4 mm 3 mm 8 mm 2 mm 13 mm Wrench Screw Allen Key Driver vii) Key for Battery viii) Kickstand ix) Seat Rebel Manual |... -
Page 6: Install Kickstand
Install the headlight to the front of the fork, and install the fender to the back of the fork with the provided bolt and washer, tighten with the 5mm Allen key. 6 mm 5 mm 4 mm 3 mm 2 mm Rebel Manual |... -
Page 7: Install Front Wheel
Fasten the wheel hub using the quick release handle. Ensure brake disk and Quick release handle on the brake caliper are aligned. caliper side of the wheel. Rebel Manual |... -
Page 8: Install Handlebar
INSTALL HANDLEBAR Attach clasp to the bottom of the handlebar. Align holes on the clasp and steering bar. Insert screw into the hole on the clasp, and tighten with the 2mm Allen key. Rebel Manual |... -
Page 9: Install Pedals
The left pedal is attached by turning it counter clockwise and the right pedal is tightened by turning it clock- wise. Make sure the pedals are tightly attached to the crank arms to prevent stripping. (See picture below) Rebel Manual |... -
Page 10: Install Seat
Be sure the minimum insertion marks do not go past the top of the seat clamp and are not visible. CONNECT CONNECTORS Connect the connectors near handle bar, make sure arrows are pointing towards each other when connecting. Locate the battery key near handle bar and cut the key from zip tie. Rebel Manual |... -
Page 11: Removing Battery
REMOVING BATTERY To remove the battery, insert and turn the provided key (located on the handebar) to unlock, turn the lever and pull battery up. Rebel Manual |... -
Page 12: Folding Instructions
As you pull the lever, the handlebar will fall. The handlebar should hang to the right side of the back to be able to fold in half. Pull button upward, and pull lever out. Rebel Manual |... - Page 13 Fold the bike in half towards the left side of the bike. Ensure handlebar is on the right side of the bike, and the left pedal is not in the way when folding both sides of the bike together. Rebel Manual |...
-
Page 14: Battery Charging
Your REBEL battery arrives with 70% charge. It is recommended that you fully charge the battery before your first use. The REBEL battery may be charged while on the bike or removed and charged at a location away from the REBEL. To charge the battery please follow the steps below: •... -
Page 15: Display
• DST indicator (needs to be supported by battery communication) • Self-Testing • Speed limit value indicator • Error code indicator. • Light sensor (Optional) • Software upgraded: Software can be upgraded through UART. • USB charging port: 5V/500mA Rebel Manual |... -
Page 16: Tft Screen Instructions
TFT SCREEN INSTRUCTIONS Your REBEL is equipped with an LCD meter that monitors pedal assist, speed, odometer, trip distance, riding time, and battery energy level. To turn the meter on, make sure the battery is fully inserted into the REBEL battery holder. - Page 17 Press and hold UP button for 1 second can turn on/off the headlight, and the screen will switch to the corresponding mode. *The motor does not work when the battery voltage is low, display still can keep the headlight on for a while when E-bike is in riding. Daytime Mode Night Mode Rebel Manual |...
- Page 18 * Display will automatically quit menu when there is no operation for 30 seconds. * For safety reasons, display can’t get into MENU when riding. * Display will quit MENU when start riding. The e order of parameters is as follow. Rebel Manual |...
- Page 19 Language: Default EN, Unadjustable System: Press Up / Down button to switch between Metric / Imperial. Rebel Manual |...
- Page 20 Auto off: Press UP/DOWN button to change the auto power off time, from 1 to 9, the number represent time (minutes) to shut down, default value is 5 minutes. Scenes: Press UP/DOWN button to change the scenes, Digital / Analog(default). Rebel Manual |...
- Page 21 Battery Ind: Press UP/DOWN button to change the battery indicator, Voltage / Percentage / OFF. *Accurate percentage needs communication with battery. Pow Ind: Press UP/DOWN button to change the Power indicator, Power / Current. * This data represents power output of the battery (not motor). Rebel Manual |...
- Page 22 Start input ON, you must input right password before power on, password is accorded to your setting. You need to input the right password before start with 30 seconds, display will power off automatically if the password was wrong. Rebel Manual |...
-
Page 23: Error Code Define
Information: Show information of the E-bike. ERROR CODE DEFINE 850C can show warning message, icon shows on the screen, and show error code at the bottom of the screen, error code from 01~25, definition see the table below. Rebel Manual |... -
Page 24: Warnings And Safety
Website: www.demonelectric.ca Address: 25 A East Pearce St Unit 2, Richmond Hill, ON L4B 2M9 Toll Free: 1-855-373-4685 Telephone: 905 881 9510 Rebel Manual |...
