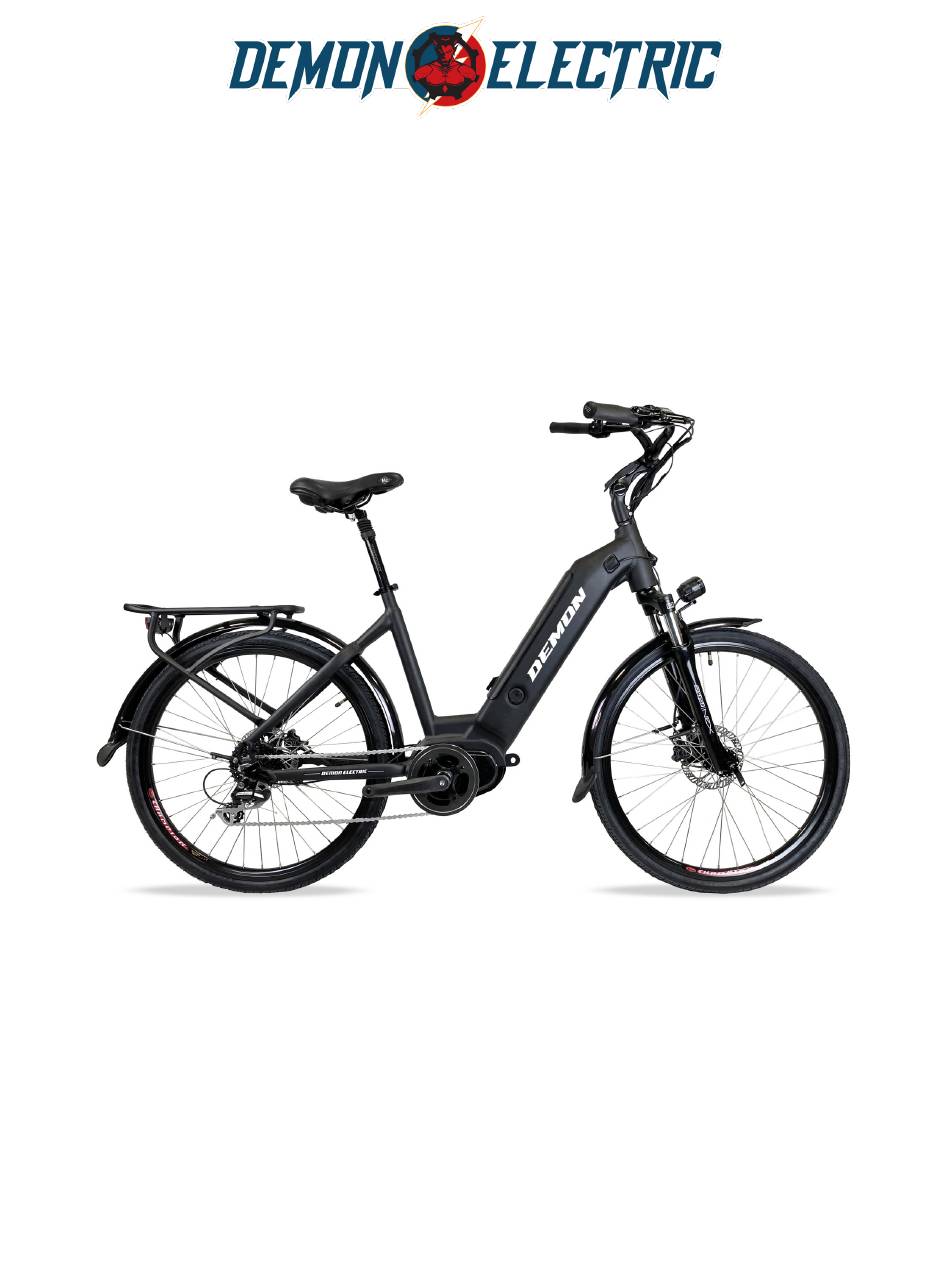

- Page 1 TRONIO Installation Manual...
-
Page 2: Table Of Contents
OWNER’S MANUAL First of all, we would like to thank you for choosing the TRONIO electric bike. We warmly welcome you to our Demon Electric family. We wish you enjoy the numerous kilometers and happy moments with your new bike. - Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
- Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Tronio Manual |...
-
Page 5: Assembly Instructions
Charger vi) Assembly Tools 15 mm 6 mm 10 mm 5 mm 4 mm 8 mm 3 mm 13 mm Wrench Screw Allen Key Driver vii) Key for Battery viii) Tail Light ix) Kickstand x) Seat Tronio Manual |... -
Page 6: Install Kickstand
INSTALL KICKSTAND Install kickstand with the 5mm Allen key. Ensure kickstand is behind the bracket on the left side of the bike during installation. 5 mm Bracket on left side of the bike. Turn bolts clock-wise to tighten. Tronio Manual |... -
Page 7: Install Headlight And Fender
Install the headlight and fender to the front fork with the given long bolt and nut, tighten with the 5mm Allen key and 10mm wrench. 10 mm 5 mm Long bolt Install fender support to the fork using the 4 mm allen key. 4 mm fender support Tronio Manual |... -
Page 8: Install Front Wheel
Fasten the wheel hub using the quick release handle. Ensure brake disk and brake caliper are aligned. Open quick release Closed quick release handle. handle. Tronio Manual |... -
Page 9: Install Handle Bars
Make sure the handlebar is centered. 4 mm Fine tune the position to align with your arm when seated, stem rise angle can be adjusted by loosen the big side screw with 6mm Allen key. 6 mm Tronio Manual |... -
Page 10: Install Pedals
The left pedal is attached by turning it counter clockwise and the right pedal is tightened by turning it clock- wise. Make sure the pedals are tightly attached to the crank arms to prevent stripping. (See picture below) Tronio Manual |... -
Page 11: Install Seat
Be sure the minimum insertion marks do not go past the top of the seat clamp and are not visible. CONNECT CONNECTORS Connect the connectors near handle bar, make sure arrows are pointing towards each other when connecting. Locate the battery key near handle bar and cut the key from zip tie. Tronio Manual |... -
Page 12: Removing Battery
To remove the battery, insert and turn the provided key (located on the handebar), and turn lever located on the battery. Turn lever and key Pull up to remove battery. The serial number is located at the bottom of the frame. Tronio Manual |... -
Page 13: Battery Charging
BATTERY CHARGING Included with your new TRONIO is a lithium ion battery, along with a charger, which plugs into a standard household electric receptacle. A lithium ion battery requires specially designed chargers. You should never charge your battery with a substitute charger that is not designed for this use. -
Page 14: Display
Touch and hold (2S) to start the mode “walk assistance”, display symbol. Mode data display: Display current data corresponding to the mode. Riding mode display: Display current riding mode, “SPORT” or “ECO”, can touch and hold (2S) switch the mode. Tronio Manual |... - Page 15 In the manual gearshift mode, briefly press (<0.5S) to switch the level to change assistance power, the lowest level is level 0, the highest level is level 5. When the display is on, the default mode is level 1, “0” means no power assistance. Tronio Manual |...
- Page 16 (can be set in the “Brightness”). (If the display is turned on in a dark environment, the display backlight/ headlight will be turned on automatically. If the display backlight/headlight are turned off manually, they also need to be turned on manually afterwards) Tronio Manual |...
- Page 17 Walk assistance mode Press and hold (>2S) to enter walk assistance mode, the symbol is displayed, when release key , will exit the walk assistance mode. METER PROGRAMMING AND USE Tronio Manual |...
- Page 18 After select the brightness percentage, briefly press (<0.5S) again to save the set and exit back to “Brightness”. Briefly press for two times (interval time is less than 0.5S) to exit back to main interface or select “BACK” >“EXIT” to back the main interface. Tronio Manual |...
- Page 19 “Power View”. Briefly press two times (interval time is less than 0.5S) to exit back to the main interface or select “BACK” >“EXIT” to exit back the main interface. Tronio Manual |...
- Page 20 ……/“32”/“33”/“34”. After confirmation, briefly press (<0.5S) to save the set and exit back to “Wheel”. Briefly press two times (interval time is less than 0.5S) to exit back to main interface or select “BACK” > “EXIT” to exit back to main menu. Tronio Manual |...
- Page 21 . When display the “OK”, it means it is successful to restore the factory setting. Briefly press for two times(interval time is less than 0.5S) to exit back to main interface or select “BACK” > “EXIT” to exit the main interface. Tronio Manual |...
- Page 22 After changing the password, it will exit automatically back to the original interface within two seconds. Briefly press two times (interval time is less than 0.5S) to exit back to the main in- terface or select “BACK” >“EXIT” to exit back to main interface. Tronio Manual |...
- Page 23 Two seconds later, it exits back automatically to the original interface. Briefly press two times (interval time is less than 0.5S) to exit back to the main interface or select “BACK” > “EXIT” to exit the main interface. Tronio Manual |...
-
Page 24: Error Code Define
“Set Clock”. Briefly press two times (interval time is less than 0.5S) to exit back to the main interface or select “BACK” > “EXIT” to exit back to the main interface. Error code definition Tronio Manual |... -
Page 25: Warnings And Safety
Website: www.demonelectric.ca Address: 25 A East Pearce St Unit 2, Richmond Hill, ON L4B 2M9 Toll Free: 1-855-373-4685 Telephone: 905 881 9510 Tronio Manual |...
