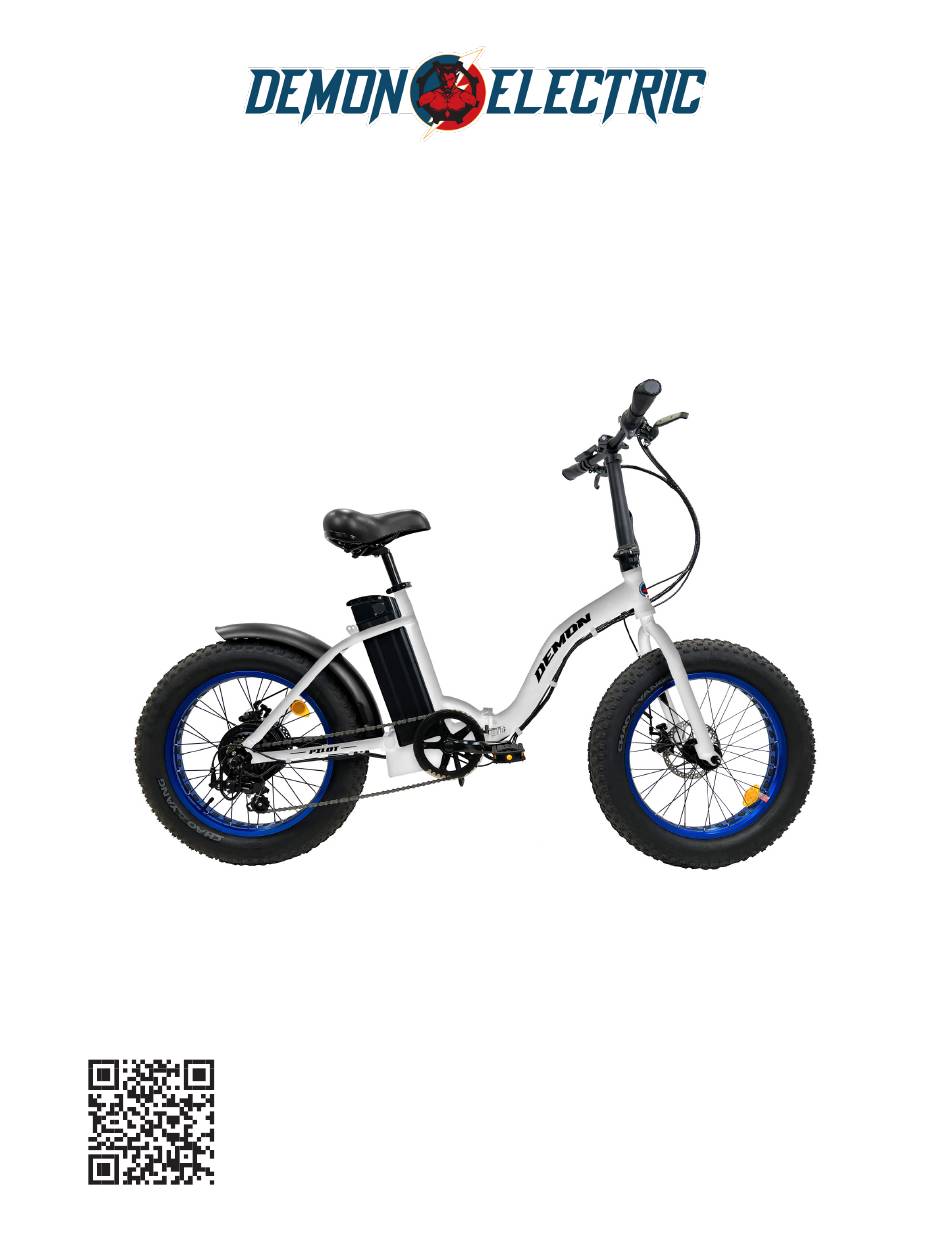

- Page 1 Pilot Installation Manual Scan to watch assembly video...
-
Page 2: Table Of Contents
OWNER’S MANUAL First of all, we would like to thank you for choosing the Pilot electric bike. We warmly welcome you to our Demon Electric family. We wish you enjoy the numerous kilometers and happy moments with your new bike. - Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
- Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Pilot Manual |...
-
Page 5: Assembly Instructions
Remove brake pad holders when installing, avoid squeezing the brakes when removing the pad holder. Ensure the following pieces are included in the package. If there are any missing parts, please contact Demon for help replacing missing pieces. Pilot Manual |... -
Page 6: Install Front Fork
Insert the front fork into the frame, pay attention to the wiring harness. As shown in the picture, they need to be placed to prevent the wire harness from being entangled. Place the small ring first, the big ring second (Figure 2-4), and press them to the Bottom. Pilot Manual |... -
Page 7: Install Stem
Method: There is a small spherical handle on the side of the handle, pull it to the top, and then pull the handle outward. Fold the stem, and place the plastic cover into it. Tighten the screws, and restore the stem to its original state. Pilot Manual |... -
Page 8: Install Front Wheel
The disc brake rotor should locate in the center of the brake pad. Insert the quick release axle (Note: The small spring heads face the center and one on each side of the wheel). Use the Allen Wrench to tighten the nut of the quick release. Pilot Manual |... -
Page 9: Install Handlebar
WARNING: It may cause the stem tube to rupture and cause a serious accident if the min insertion line is out of the tube. The customer is responsible for accidents caused by improper installation. Pilot Manual |... -
Page 10: Install Seat Post
If necessary, the clamp can be further tightened with a 5 mm Allen wrench while in the clamped position. Warning: The cam lever may be bent if over tighten tension nut when the cam lever un-clamped. It is not covered by warranty. Pilot Manual |... -
Page 11: Install Pedal
It is NOT covered by warranty. 3. Install the right-hand pedal This one threads in clockwise, like a normal screw. Follow the same principals, as discussed in step 2 for the left pedal. Pilot Manual |... -
Page 12: Install Front Fender And Reflector
Allen wrench to push it in by tightening the bolt. Place the washer after the bolt comes through the mounting bracket of the fender. Adjust the position of the fender, and tighten the bolt and nut. Pilot Manual |... -
Page 13: Install Battery
“UNLOCK”: You need to push the key in to turn to this position. The bike is powered off, and the battery is not locked on the bike. Fuse: There are two Fuses on the battery. Charging Fuse: 10A, Min. 60Vdc; Discharging Fuse: 30A, Min. 60Vdc. (UL certified Fuse ). Pilot Manual |... -
Page 14: Folding The Bike
Locate the quick-release lever on the frame, open the lever, then pull it out. Hold the handle, and lift the pin- up, then the frame can be folded. Then fold the stem and pedals (Push the pedals in, and then flip them up). The bike is folded. Pilot Manual |... -
Page 15: Operating Instructions
B. Pedal Assist: please lift the rear wheel and turn the pedal by hand. The motor will work one time once you turn the crank 3/4-cycle. C. Walk assist: Please press and hold the “6km” button on the handlebar. The bike will go into a walk-assist mode. Pilot Manual |... -
Page 16: Display Instrument Settings
Mode: Press the “mode” button to select the pedal assistant power with pedals and throttle (Low- Med-High). Power: Power is indicating the battery power. It should be four red LED when fully charged. Pilot Manual |... -
Page 17: Troubleshooting
Please picture the testing results and send them to us. It will help us for solving your problem asap. Pilot Manual |... - Page 18 The brake wires need to be replaced. If it still doesn’t work, it means the controller needs to be replaced. Please video your problem, and send the video to us. If it still doesn’t work after replacing the brake wire or controller, please video how you do the troubleshooting, and send the video to us. Pilot Manual |...
-
Page 19: Warnings And Safety
Website: www.demonelectric.ca Address: 25 A East Pearce St Unit 2, Richmond Hill, ON L4B 2M9 Toll Free: 1-855-373-4685 Telephone: 905 881 9510 Pilot Manual |...
