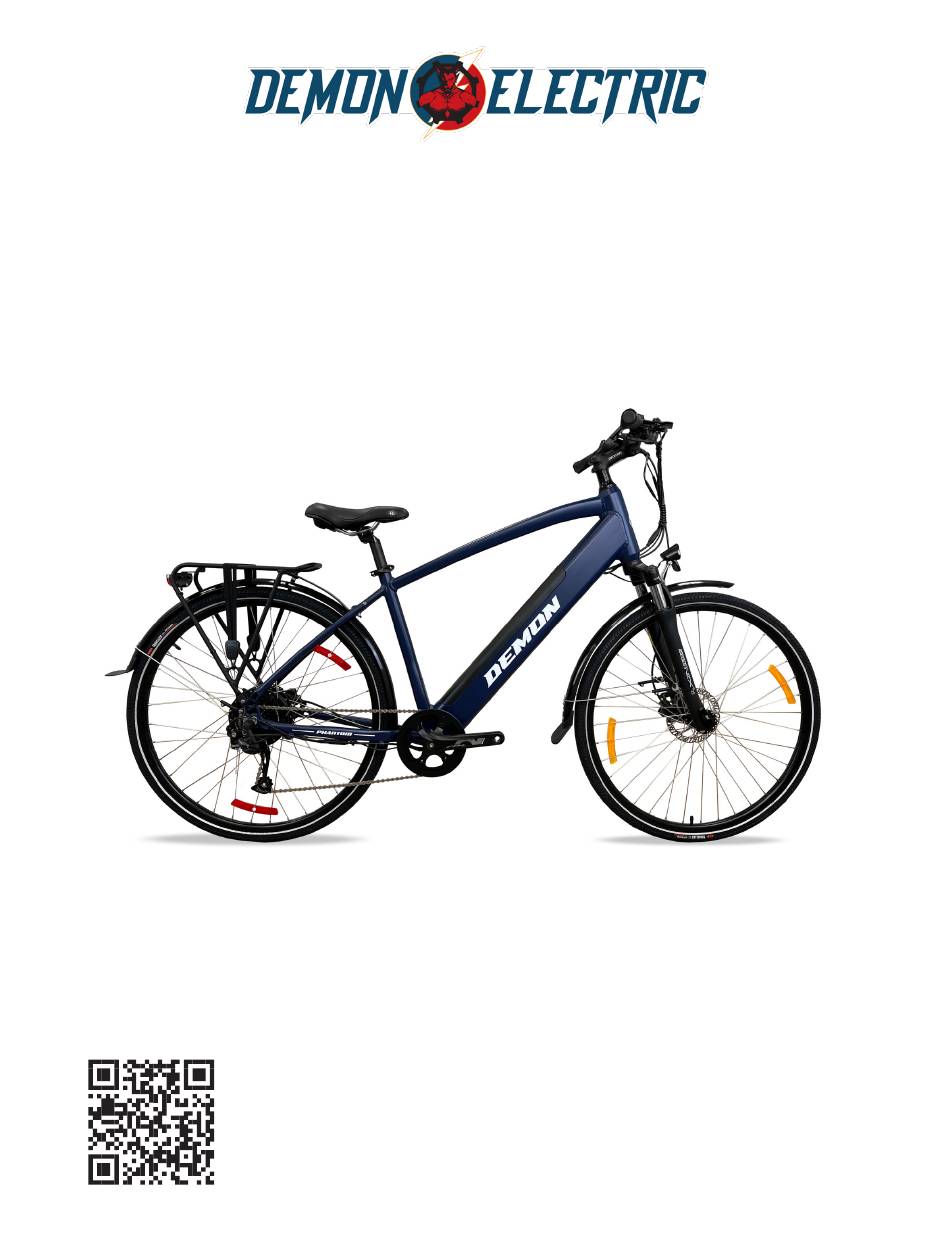

- Page 1 PHANTOM Installation Manual Scan to watch assembly video...
-
Page 2: Table Of Contents
Table of contents ASSEMBLY INSTRUCTIONS ..................3 KICKSTAND INSTALLATION ..................4 PEDAL INSTALLATION ......................5 HANDLEBAR INSTALLATION ..................6 CONNECT CONNECTORS .....................7 FRONT LIGHT AND FENDER INSTALLATION .............7 INSTALL FRONT WHEEL ....................8 REMOVING/INSERTING BATTERY ................9 CHARGING E-BIKE ......................10 SERIAL NUMBER LOCATION ..................10 DISPLAY ..........................11 SETTING INTERFACE......................12 DEFINITION OF BUTTONS....................12 OPERATION..........................12... - Page 3 BELOW ARE THE GUIDELINES FOR THE INITIAL BATTERY CHARGING PROCESS: • Before using the e-bike for the first time, we strongly recommend that you conduct a preliminary battery check-up and perform a full charge for optimal performance. • To charge the battery, before riding connect the e-bike to the charger and allow the battery to reach full capacity.
- Page 4 Email us at pdisales@pdintl.ca PLEASE NOTE: THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE. DO NOT DISASSEMBLE, MODIFY OR REPLACE ELECTRICAL PARTS. Phantom Manual |...
-
Page 5: Assembly Instructions
Front Wheel & Axle iii) Front Fender iv) Pedals v) Charger vi) Assembly Tools vii) Kickstand viii) Seat 13 mm 10 mm 5 mm 3 mm 4 mm 8 mm 15 mm Screw Wrench Allen Key Driver Phantom Manual |... -
Page 6: Kickstand Installation
INSTALL KICKSTAND Install kickstand with the 5mm Allen key. Ensure kickstand is behind the bracket on the left side of the bike during installation. 5 mm Bracket on left side of the bike. Turn bolts counterclockwise. Phantom Manual |... -
Page 7: Pedal Installation
The left pedal is attached by turning it counter clockwise and the right pedal is tightened by turning it clock- wise. Make sure the pedals are tightly attached to the crank arms to prevent stripping. (See picture below) Phantom Manual |... -
Page 8: Handlebar Installation
Make sure the handlebar is centered. 4 mm CONNECT CONNECTORS Connect the connectors near handle bar, make sure arrows are pointing towards each other when connecting. Locate the battery key near handle bar and cut the key from zip tie. Phantom Manual |... -
Page 9: Front Light And Fender Installation
Install the headlight and fender to the front fork with the provided long bolt and nut, tighten with the provided screwdriver and 10mm wrench. Install fender support to the bracket on the fork using the 4 mm allen key. 4 mm Phantom Manual |... -
Page 10: Install Front Wheel
Fasten the wheel hub using the quick release handle. Smaller side of spring Ensure brake disk and to be facing the wheel. brake caliper are aligned. Closed quick release Open quick release handle. handle. Phantom Manual |... -
Page 11: Removing/Inserting Battery
When iserting the battery back into the frame, place the back end of the battery first, then carefully place the front end of the battery into the frame. Push down on the front of the battery, the battery is locked into place once you hear a click. Phantom Manual |... -
Page 12: Charging E-Bike
Locate the charging port near the left side pedal of the bike, open the cover to access the charging port. The LED on the charger will turn from red to green once charging is complete. LOCATING THE SERIAL NUMBER The serial number is located at the bottom of the frame, between the pedals. Serial number. Phantom Manual |... -
Page 13: Display
Riding time: riding time display, display format: hours: minutes; Trip mileage and unit: subtotal mileage display; Remaining mileage: display the estimated remaining riding mileage of the battery in the current power gear (only estimated value, and supported by communication battery BMS) Phantom Manual |... -
Page 14: Setting Interface
Long press the (2 seconds) in the power-on state, and the display will turn off. If the rider does not operate the meter for 5 minutes (speed is 0), the meter will automatically turn off. Phantom Manual |... -
Page 15: Power-On Password
1st gear and the highest gear is 5th gear. When the display is turned on, the default gear is 1st gear, and when 0 is displayed, it is neutral without power-assisted. The Assist mode select interface is as follows: 0 (gray) 1 (green) 2 (yellow) 3 (orange) 4 (pink) 5 (red) Phantom Manual |... -
Page 16: Assist Mode Select
“ ”. Release the , exit the Walk assist mode, and return to the normal display interface. The interface of Walk assist mode switching is as follows (only in the implementation state): Walk assist mode Normal mode Phantom Manual |... -
Page 17: Headlight Switch
1-5 cells. When the charge is less than 5%, 0 grid is displayed, and the battery icon is yellow and flashes. Prompt to charge immediately. The battery charge is shown in the following figure: Level 0 Level 1 Level 2 Level 3 Level 4 Phantom Manual |... -
Page 18: Power Display
Enter the unit setting interface, and press the key briefly to select KM/H or MPH; When selected, press the M key briefly to save the parameters and exit the company setting interface to return to the user setting interface. Interface is as follows: Phantom Manual |... -
Page 19: Backlight Setting
Brightness: backlight adjustment items 1, 2, 3, 4 and 5: backlight brightness is adjusted in five levels, with the lowest level 1 and the highest level 5; Press short key to select 1~5 brightness, and M key to confirm the selection and exit the backlight setting interface. The interface is as follows: Phantom Manual |... -
Page 20: Clock Setting
M to verify the original password after the four-digit password is entered, and if the original pass- word is wrong, directly exit the SET interface. Phantom Manual |... - Page 21 After the new password is successfully entered, you are prompted to enter it again. After the new password is confirmed correctly twice, the display will automatically open the power-on password. At this time, it is necessary to enter the new password before the display can enter the normal working interface. Phantom Manual |...
-
Page 22: Automatic Shutdown Time Setting
Wheel diameter and speed limit information The following figure (Default) Wheel diameter and speed limit can only be set by the upper computer, which can only be viewed by the user and cannot be set. Phantom Manual |... -
Page 23: Battery Information
HW version: Hardware version number *Motor INFO (supported by communication protocol) *BMS INFO (supported by communication protocol) *Controller INFO (supported by communication protocol) Press the key to select Exit, and press the M key to exit the user setting interface. Phantom Manual |... -
Page 24: Factory Setting
If you don’t press any button within 10 seconds, you will automatically return to the riding interface, and the data will not be cleared. The following is the data clearing interface: Phantom Manual |... -
Page 25: Fault Interface Definition
The display can prompt and warn the whole vehicle fault, and when the fault is detected, the display interface displays the fault code (the specific fault code needs to be defined by the controller). The fault interface (reference) is as follows: Note: After troubleshooting, the display will automatically enter the normal riding interface. Phantom Manual |... -
Page 26: Lithium-Ion Battery Maintenance/Storage Guide
•In case of eye contact with fluid, do not rub eyes. Immediately flush eyes thoroughly with water for at least 15 minutes, lifting upper and lower lids, until no evidence of the fluid remains. Seek medical attention. Phantom Manual |... - Page 27 •Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. •Place only discharged batteries in a battery collection container. Use electrical tape or other approved covering over the battery connection points to prevent short circuits. Phantom Manual |...
-
Page 28: Warranty Policy
LIMITED WARRANTY TERMS Last updated Nov, 2021 All Demon electric bikes, and their discrete covered components are protected against all manufacturing defects in material and workmanship for one year after the purchase of ebike by the customer. The limited warranty is only applicable to original purchaser and its not transferable. You will be responsible for shipping cost associated with returning the discrete components. - Page 29 You will be responsible for shipping costs associated with returning a Covered Component, unless DEB agrees in writing to pay for such shipping costs. Replacement Covered Components under this Limited Warranty shall only be shipped to the address of the original purchaser. Phantom Manual |...
- Page 30 INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE FOR THE DURATION OF THIS EXPRESS LIMITED WARRANTY. SOME PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. Phantom Manual |...
-
Page 31: Warnings And Safety
Website: www.demonelectric.ca Address: 25 A East Pearce St Unit 2, Richmond Hill, ON L4B 2M9 Toll Free: 1-855-373-4685 Telephone: 905 881 9510 Phantom Manual |...
