Summary of Contents for KOBE ISX2430SQB-2

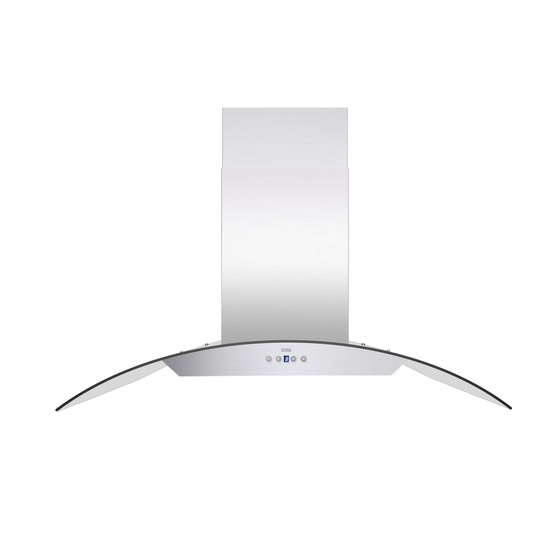

- Page 1 KOBE Range Hoods Brillia Series Model No.: ISX2430SQB-2 (30”) ISX2436SQB-2 (36”) ISX2442SQB-2 (42”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Important Read This First
3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2. - Page 3 CONTENTS ..................1 ....................3 .......................... 4 ....................8 ........................10 ........................11 .....................12 ..........................13 ........................15 TROUBLE SHOOTING ......................16 ..........................17 .....................19 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N A C C O R D A N C E W I T H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S...
-
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
- Page 6 {J} Adjustable Duct Cover {K} Aluminum Pipe Hexagonal Screws QTY: 4PCS Round Screw Washer QTY: 16PCS Conical Screw Washer QTY: 2PCS 4mm x 8mm Screws QTY: 18PCS FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
-
Page 7: Safety Warning
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 30”... - Page 8 Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside (Figure 1). • A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 Figure 6 Telescopic Stack Installation 6. Adjust the telescopic stack with sixteen screws and washer (pre-installed). Refer to Figure 5. 7. Align the telescopic stack to the mounting screws on the ceiling and lock the telescopic stack in place. Fasten the mounting screws as shown in Figure 6. 8.
- Page 10 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH APPLICABLE NATIONAL LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Page 11 OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control To adjust the speed level, press button to decrease the speed and to increase the speed.
- Page 12 Light Control Press button to turn LED lights ON and OFF. The LED lights have 4 brightness levels, ranging from 1 to 4 (1 being the lowest and 4 being the brightest). Press and hold down button to increase the brightness by 1 level every 3 seconds.
-
Page 13: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 14: Specifications
SPECIFICATIONS MODEL / SIZE ISX2430SQB-2 (30”) ISX2436SQB-2 (36”) ISX2442SQB-2 (42”) COLOR 20-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 180W / 1.5A NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage EXHAUST Top – 6" Round CONTROLS Electronic Control (4 Buttons) with LED Display –... - Page 15 MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters.
-
Page 16: Parts List
PARTS LIST MODEL NO.: ISX2430SQB-2 (30”) ISX2436SQB-2 (36”) ISX2442SQB-2 (42”) DESCRIPTION MODEL PART NO. Inner Duct Cover ISX24-0001 Outer Duct Cover ISX24-0002 Capacitor ISX24-0003 Exhaust Plate ISX24-0004 Processor Board ISX24-0005 ISX2430SQB-2 ISX24-3006 Glass Canopy ISX2436SQB-2 ISX24-3606 ISX2442SQB-2 ISX24-4206 Control Unit... - Page 17 MODEL NO.: ISX2430SQB-2 (30”) ISX2436SQB-2 (36”) ISX2442SQB-2 (42”)
-
Page 18: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: ISX2430SQB-2 (30”) ISX2436SQB-2 (36”) ISX2442SQB-2 (42”) -
Page 19: Troubleshooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter both motors to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 20: Warranty Certificate
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 21 TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE CENTER: From the 48 contiguous states:...
-
Page 22: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For service in Canada and to report a problem, please... - Page 23 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
