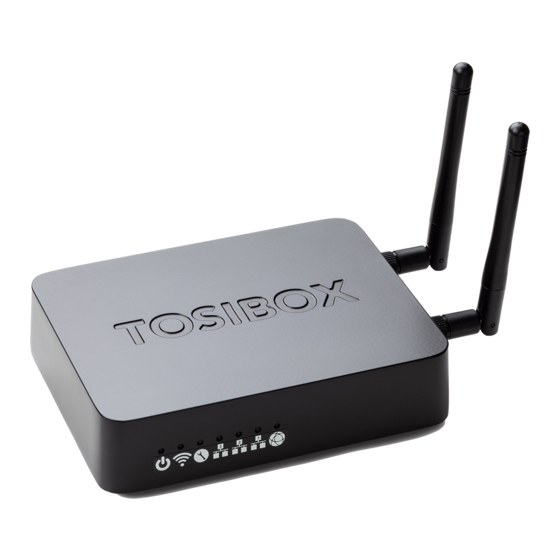

Tosibox Lock 150 Quick Start Manual
Hide thumbs
Also See for Lock 150:
- User manual (70 pages) ,
- Quick start manual (2 pages) ,
- User manual (70 pages)
Advertisement
All manuals and user guides at all-guides.com
1
Matching the Lock with the Key
TOSIBOX
Lock
®
TOSIBOX
®
Key
Deploying into Broadband Networks
2a
TOSIBOX
®
SoftKey
PC
®
TOSIBOX
Mobile
Client
Internet /xDSL router
Lock 150
Quick Start Guide
Copyright © Tosibox Oy, 2019
AC Adapter
VPN tunnel through Internet
TOSIBOX
®
Key
WAN
1.
Connect the AC adapter to the Lock and wait for 2
minutes.
2.
Insert the Key into the USB port of the Lock. When
the LED on the Key stops blinking, (after approx.
10 seconds) the matching is complete and you can
remove the Key from the USB port.
2a
3.
Go to
if deploying into broadband networks
(ethernet) or
2b
if deploying into mobile
networks.
W
TOSIBOX
A
Lock
N
Firewall
1.
Connect an Internet-connected ethernet cable to
the Lock's WAN port.
2.
Plug the devices into the Lock's LAN ports (LAN
1-3 or connect wirelessly via WLAN). If the devices
have static IP addresses, please see
Lock
in the TOSIBOX
HMI
PLC
L
®
A
N
Camera
PC
Deploying the
user manual.
®
Advertisement
Table of Contents
Related Manuals for Tosibox Lock 150
Summary of Contents for Tosibox Lock 150
- Page 1 All manuals and user guides at all-guides.com Lock 150 Quick Start Guide Copyright © Tosibox Oy, 2019 Matching the Lock with the Key Connect the AC adapter to the Lock and wait for 2 minutes. TOSIBOX Lock ® Insert the Key into the USB port of the Lock. When the LED on the Key stops blinking, (after approx.
- Page 2 The Lock is not connected to the Internet. Declaration of Conformity Hereby, Tosibox Oy declares that the radio equipment type Lock 150 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at https://www.tosibox.com/lock-150-eu-doc/ Patented, incl.
