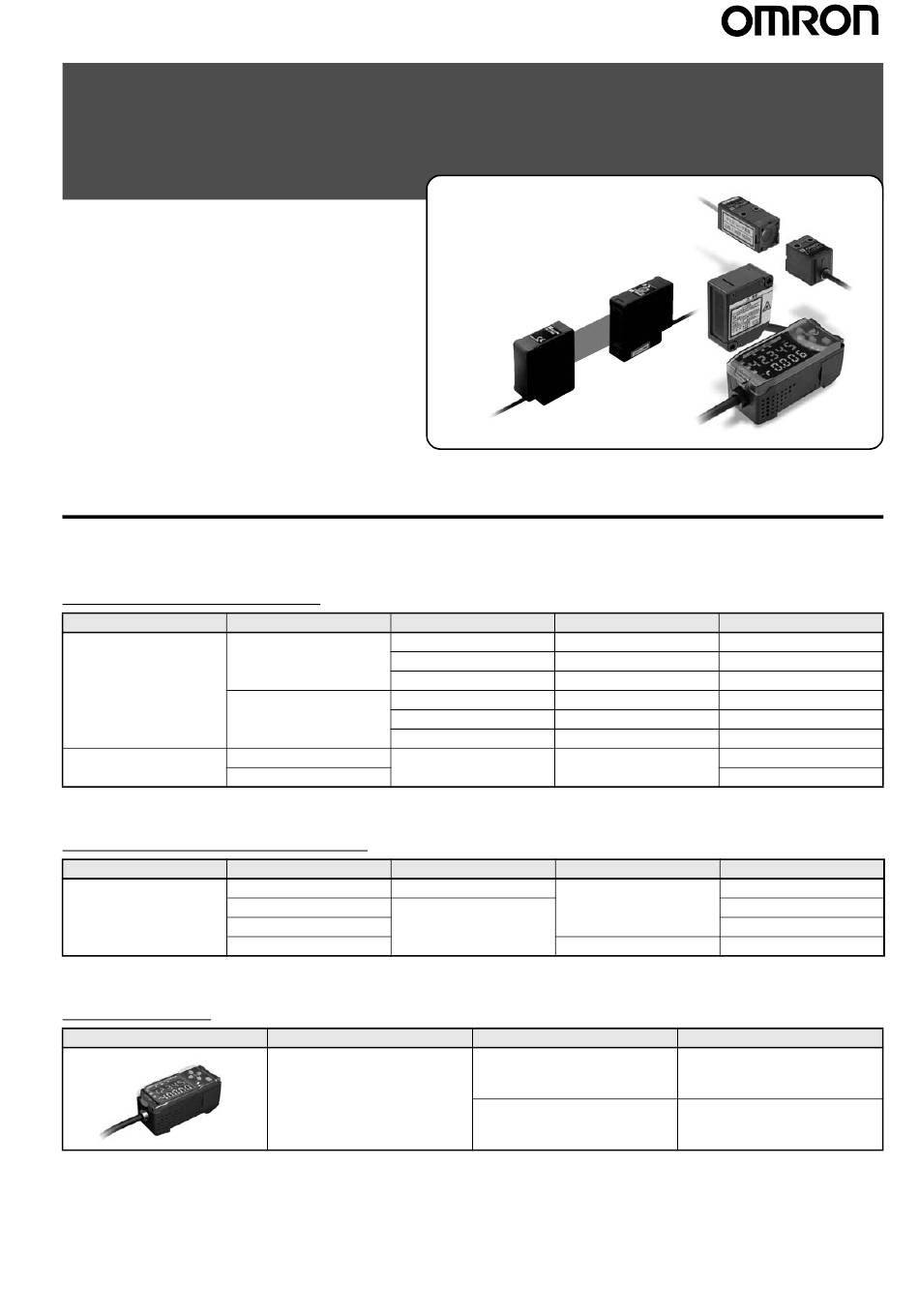

Smart Sensors

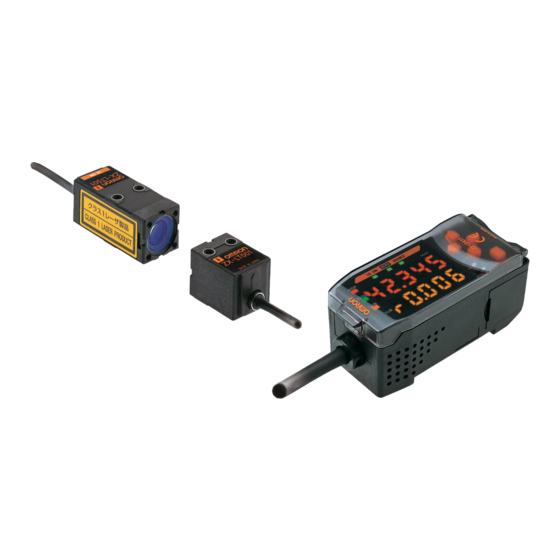

ZX Series (ZX-L)
Ordering Information
■ Sensors
Sensor Heads (Reflective)
Optical system
Diffuse reflective
Spot beam
Line beam
Regular reflective
Spot beam
Line beam
*1. For an average count of 4,096.
Sensor Heads (Through-beam)
Optical system
Through-beam
1-mm dia.
5 mm
10 mm
30 mm
*1. For an average count of 64.
Amplifier Units
Appearance
Note:
Compatible connection with the Sensor Head.
Beam shape
Sensing distance
40 ± 10 mm
100 ± 40 mm
300 ± 200 mm
40 ± 10 mm
100 ± 40 mm
300 ± 200 mm
30 ± 2 mm
Measuring width
Sensing distance
0 to 2000 mm
0 to 500 mm
Power supply
DC
Resolution*1
2 µ m
16 µ m
300 µ m
2 µ m
16 µ m
300 µ m
0.25 µ m
Resolution*1
4 µ m
12 µ m
Output type
NPN
PNP
ZX Series (ZX-L)
Model
ZX-LD40
ZX-LD100
ZX-LD300
ZX-LD40L
ZX-LD100L
ZX-LD300L
ZX-LD30V
ZX-LD30VL
Model
ZX-LT001
ZX-LT005
ZX-LT010
ZX-LT030
Model
ZX-LDA11
ZX-LDA41
Smart Sensors
.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omron ZX-L
Summary of Contents for Omron ZX-L
- Page 1 Smart Sensors ZX Series (ZX-L) Ordering Information ■ Sensors Sensor Heads (Reflective) Optical system Beam shape Sensing distance Resolution*1 Model 40 ± 10 mm 2 µ m Diffuse reflective Spot beam ZX-LD40 100 ± 40 mm 16 µ m ZX-LD100 300 ±...
-
Page 2: Specifications
*3. Linearity: The linearity is given as the error in an ideal straight line displacement output when measuring the standard reference object. The linearity and measurement values vary with the object being measured. *4. Temperature characteristic: The temperature characteristic is measured at the measurement point with the Sensor and reference object (OMRON’s standard reference object) secured with an aluminum jig. - Page 3 *3. For an average count of 64. The value is 5 µ m for an average count of 32. *4. For an average count of 64. The value is 15 µ m for an average count of 32. ZX Series (ZX-L) Smart Sensors...
- Page 4 10 to 150 Hz, 0.7-mm double amplitude 80 min each in X, Y, and Z directions Shock resistance (destructive) 300 m/s 3 times each in six directions (up/down, left/right, forward/backward) Materials Display: Acrylic, Case: ABS resin Weight (packed state) Approx. 50 g ZX Series (ZX-L) Smart Sensors...
- Page 5 −3 − inclination − inclination −20 −4 −4 −10 −8 −6 −4 −2 −10 −8 −6 −4 −2 −10 −8 −6 −4 −2 Angle of inclination (°) Angle of inclination (°) Angle of inclination (°) ZX Series (ZX-L) Smart Sensors...
- Page 6 Black paper + inclination − inclination −1 −1 −2 −2 −3 −3 + inclination − inclination −4 −4 −10 −8 −6 −4 −2 −10 −8 −6 −4 −2 Angle of inclination (°) Angle of inclination (°) ZX Series (ZX-L) Smart Sensors...
- Page 7 Black paper Black paper paper 10° inclination 0° inclination −1 −1 −1 −2 −2 −2 −3 −3 −3 −10° inclination −4 −4 −4 48 50 48 50 48 50 Distance (mm) Distance (mm) Distance (mm) ZX Series (ZX-L) Smart Sensors...
- Page 8 28.0 28.4 28.8 29.2 29.6 30.0 30.4 30.8 31.2 31.6 32.0 28.0 28.4 28.8 29.2 29.6 30.0 30.4 30.8 31.2 31.6 32.0 28.0 28.4 28.8 29.2 29.6 30.0 30.4 30.8 31.2 31.6 32.0 Distance (mm) Distance (mm) Distance (mm) ZX Series (ZX-L) Smart Sensors...
- Page 9 2,000 µ m 410 µ m 100 µ m 430 µ m ZX-LD300L 100 mm 300 mm 500 mm 2,000 µ m 2,000 µ m 2,500 µ m 750 µ m 300 µ m 650 µ m ZX Series (ZX-L) Smart Sensors...
- Page 10 WD = 250 mm WD=450 mm WD = 450 mm Sensing distance: 500 mm Sensing distance: 500 mm −1 −2 Emitter Receiver Receiver Emitter side side side side −3 −4 Light interruption (mm) Light interruption (mm) ZX Series (ZX-L) Smart Sensors...
- Page 11 0 100 500 600 0 100 500 600 Distance (mm) Distance (mm) −2 −4 −6 ZX-LD30V/LD30VL Voltage Output Current Output Measurement range Measurement range (4 mm) (4 mm) Distance (mm) −2 Distance (mm) −4 −6 ZX Series (ZX-L) Smart Sensors...
-
Page 12: I/O Circuit Diagrams
(linear output ground) together with the linear output (black line) for linear output. Each of these grounds must be used for the designed purpose. When not using the linear output, con- nect the linear ground (shield) to the 0-V ground. ZX Series (ZX-L) Smart Sensors... -
Page 13: Part Names
ZX-CAL2 ZX-LT005 ZX-LT010 ZX-LT030 Display area Emitter Laser ON indicator (green) Light emitter Lit when light is emitted. Emitter side sensor head Emitter connector Connector Receiver side Receiver side sensor (Optical filter) head connector Receiver ZX Series (ZX-L) Smart Sensors... - Page 14 2. Use a soft cloth (for lenses) with a small amount of alcohol to remove the remaining dust. Do not use a scrubbing action when cleaning because scratches on the filter could result in Sensor inaccuracy. ZX Series (ZX-L) Smart Sensors...
-
Page 15: Laser Safety
3. To avoid exposure to hazardous laser radiation, do not displace nor remove the protective housing during operation, maintenance, and any other servicing. 4. The user should return the product to OMRON for all repair and servicing. 5. As for other countries, observe the regulations and standards specified by each country. - Page 16 The maximum accessible emission level permitted within a particular class. For your reference, see ANSI Z136.1-1993, Section 2. Symbol and border: black Background: yellow Figure A Warning label - Hazard symbol Legend and border: black Background: yellow Figure B Explanatory label ZX Series (ZX-L) Smart Sensors...
- Page 17 8. Requires means to measure level of laser radiation intended to irradiate the body. 9. CAUTION if 2.5 mW cm or less, DANGER if greater than –2 2.5 mW cm 10.Delay required between indication & emission. ZX Series (ZX-L) Smart Sensors...
- Page 18 Labels (4.3.14 and 4.7) Area Posting (4.3.15) • Administrative & Procedural Controls Standard Operating Procedures (4.4.1) • Output Emission Limitations (4.4.2) LSO Determination Education and Training (4.4.3) • • Authorized Personnel (4.4.4) Alignment Procedures (4.4.5) ZX Series (ZX-L) Smart Sensors...
- Page 19 Conditions for safe viewing of diffuse reflections for Class 3B visible lasers are: minimum viewing distance of 13 cm between screen and cornea and a maximum viewing time of 10 s. Other viewing conditions require a comparison of the diffuse reflection exposure with the MPE. ZX Series (ZX-L) Smart Sensors...
- Page 20 Class II Caution logo type Certification and Caution identification label logo type Aperture label Certification and Identification Label Note: Use of controls, adjustments, or procedures other than those specified herein may result in hazardous radiation exposure. ZX Series (ZX-L) Smart Sensors...
- Page 21 42.7 Connector Mounting Holes 32.7 Two, M4 holes 4.75 4.75 47± 35° Light axis 12.5 Two, 4.5-dia. 15 dia. mounting holes Emitter Receiver axis axis Reference plain Measurement center Lens (10 dia.) Lens (16 dia.) ZX Series (ZX-L) Smart Sensors...
- Page 22 + pan head screw 4.75 4.75 12.5 12.5 Connector Connector Lens (8 x 36) Slit (1 x 30) Two, M3, Two, M3, depth: 5 35.9 depth: 5 Two, M4 Two, M4 11.5 dia. 14.7 dia. ZX Series (ZX-L) Smart Sensors...
- Page 23 Vinyl-insulated round cable, 5.2 dia. (conductor Vinyl-insulated round cable, 5.23 dia. Standard: 100 mm cross-section: 0.09 mm , 10-conductor insulator diameter: 0.7 mm), Standard: 2 m 11.7 11.7 Current/voltage output selector switch (set to voltage output when shipped) Voltage output ZX Series (ZX-L) Smart Sensors...
- Page 24 ■ Accessories (Order Separately) Calculating Unit Operation Connectors 24.9 indicators ZX-CAL2 19.5 15.1 54.9 44.05 14.4 36.7 Side-view Attachments ZX-XF12 Light axis center Two, 2.2 dia. 10.6 ZX-XF22 Light axis center Two, 2.2 dia. Seal ZX Series (ZX-L) Smart Sensors...
- Page 25 ZX-XC4A (4 m) 15.5 dia. 15 dia. ZX-XC8A (8 m) ZX-XC9A (9 m) Vinyl-insulated round cable, 5.2 dia., 10 conductors 12 pins (male) 12 pins (female) ∗ ZX-XC1A: 1,000 ZX-XC4A: 4,000 ZX-XC8A: 8,000 ZX-XC9A: 9,000 ZX Series (ZX-L) Smart Sensors...
- Page 26 Operation Manual (Z157) carefully for information that the user must understand and accept before purchase, including information on warranty, limitations of liability, and precautions. Cat. No. E325-E1-04 In the interest of product improvement, specifications are subject to change without notice. OMRON Corporation Industrial Automation Company Sensing Devices Division H.Q. Application Sensors Division...
