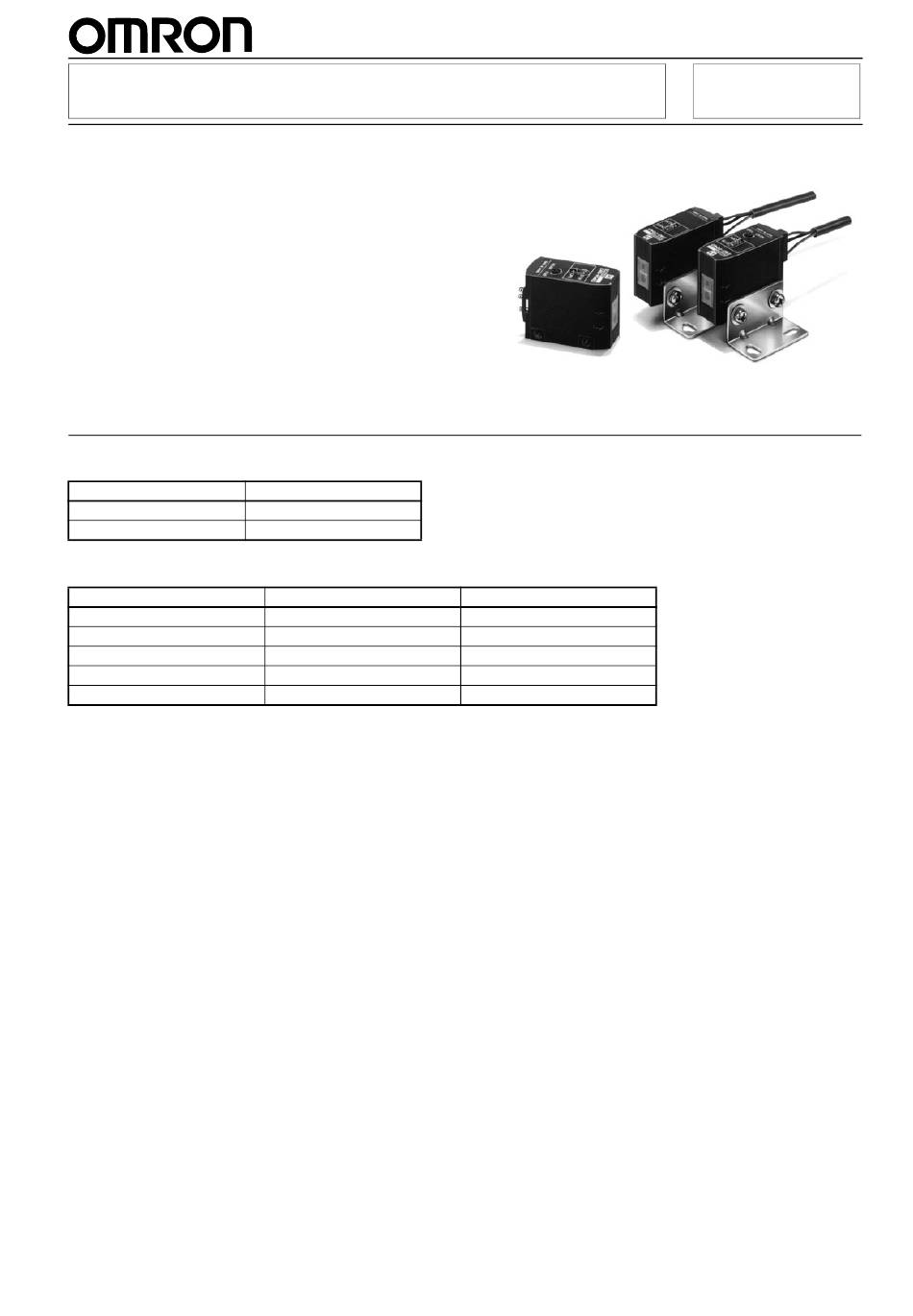

Micro Displacement Sensor
Compact, High-performance
Micro Displacement Sensor
■
Meets various needs with high performance at the
resolution of 5 µm.
■
Numerous applications are possible when the
analog output model is integrated with OMRON's
K3TX Intelligent Signal Processors.
■
ON/OFF output model (NPN open collector) is
available.
Ordering Information
Z4D-F
■
Output
Analog
ON/OFF
Accessories (Attached)
■
Item
Mounting bracket
Mounting screws (M3 x 2)
Connector with 1-m cord
Screwdriver
Operation Manual
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Model
Z4D-F04A
Z4D-F04D
Z4D-F04A
1 pc.
2 pcs.
1 pc.
---
1 copy
Z4D-F04D
1 pc.
2 pcs.
1 pc.
1 pc.
1 copy
Z4D-F
1
Advertisement
Table of Contents
Related Manuals for Omron Z4D-F
Summary of Contents for Omron Z4D-F
- Page 1 ■ Meets various needs with high performance at the resolution of 5 µm. ■ Numerous applications are possible when the analog output model is integrated with OMRON’s K3TX Intelligent Signal Processors. ■ ON/OFF output model (NPN open collector) is available.
- Page 2 Z4D-F Z4D-F Specifications Ratings/Characteristics ■ Item Z4D-F04A Z4D-F04D Supply voltage 12 to 24 VDC±10%, ripple voltage (p-p): 10 mV max. Current consumption 35 mA max. Sensing range 4±1.25 mm (see note 1) Light source Red LED with a wavelength of 700 nm Spot diameter 1.5 x 1.5 mm max.
-
Page 3: Characteristics Data
Z4D-F Z4D-F 6. Response Time (Z4D-F04A) The response time of the Sensor (Z4D-F04A) is the time required for the analog displacement output to increase from 10% to 90% of the full value (at the rise time) or decrease from 90% to 10% of the full value (at the fall time). - Page 4 Z4D-F Z4D-F Temperature Characteristics Vcc = 24 V Vcc = 10.8 V Vcc = 26.4 V Temperature (°C) Resolution Characteristics with Difference in Reflection Rate Reflection factor (%) ON/OFF Output Model (Z4D-F04D) Sensing Distance vs. Adjustor Angle Characteristics Standard paper...
- Page 5 Z4D-F Z4D-F Nomenclature Analog Output (Z4D-F04A) ■ (1) Power (PWR) Indicator The green PWR indicator is lit when power is properly supplied to the Sensor. (2) Alarm (ALM) Indicator The red ALM indicator is lit if there is no sensing object or the reflectivity of the sensing object is low and it is impossible for the Sensor to process the light reflected to the Sensor.
-
Page 6: Analog Output
Z4D-F Z4D-F Operation Connections/Output Circuits ■ Analog Output Connector (Brown) 12 to 24 VDC (Black) 0 to 6.5 V Output (Blue) NPN Open Collector Output Connector (Brown) 12 to 24 VDC Load (Black) Output (Blue) Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com... - Page 7 Z4D-F Z4D-F Dimensions Z4D-F04A ■ Operation indicator Stability indicator Mounting Holes Two, M3 Mounting holes Mounting bracket can be attached to this side. Receiver Optical axis Two, M3 X 12 Emitter Z4D-F04D ■ Operation indicator Stability indicator Distance adjustor Mounting Holes...
-
Page 8: Controller Connections
Z4D-F Z4D-F EE-1010D Connector with 1-m Cord Two, C1 Terminal Arrangement Designation Color Brown (red) Output Black (white) Blue (black) Installation Controller Connections ■ Z4D-F04A and K3TX-VD Z4D-F04D and S3D2 (Black) (Brown) (Black) (Brown) Z4D-F04A (Blue) (Blue) 12 to 24 VDC... - Page 9 Sensor (Black) (Blue) Wiring Wrong polarity Incorrect Incorrect Be sure to wire the Z4D-F correctly and be Brown careful not to connect the polarities incor- Brown Load rectly, otherwise it may explode or burn. Sensor Sensor Black...
-
Page 10: Correct Use
Z4D-F Z4D-F Correct Use ■ Mounting Z4D-F04A Install the Sensor so that the optical axis of the Sensor and the Analog Output surface of the object meet at right angles (i.e., the panel that The Z4D-04A has an output of 3 V if a sensing object is located at incorporates the light source is parallel with the object). - Page 11 Z4D-F Z4D-F Precautions Install the Sensor in a clean environment keep the filter (on the Environment front of the Sensor) free from oil and dust. If affected by oil or Refrain from using the Micro Displacement Sensor in a strong...
- Page 12 (a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
