Panic Connector

The R12 supports emergency lighting control bypass in the following ways:
• It accepts input from non-isolated (dry) contact closure powered by the F-Drive R12.
• It accepts input from isolated (wet) contact closure providing +48 VDC.
• It can be configured for normally open or normally closed operation.
• It can be used to trigger the emergency functionality of an F-Drive W1 Emergency Driver
in the event of power loss to the R12. This function can be used with or without input
from an additional non-isolated (dry) contact closure.
To use the Panic input with a W1 Emergency Driver, see
W1 Emergency Driver on page 25

Panic Switches

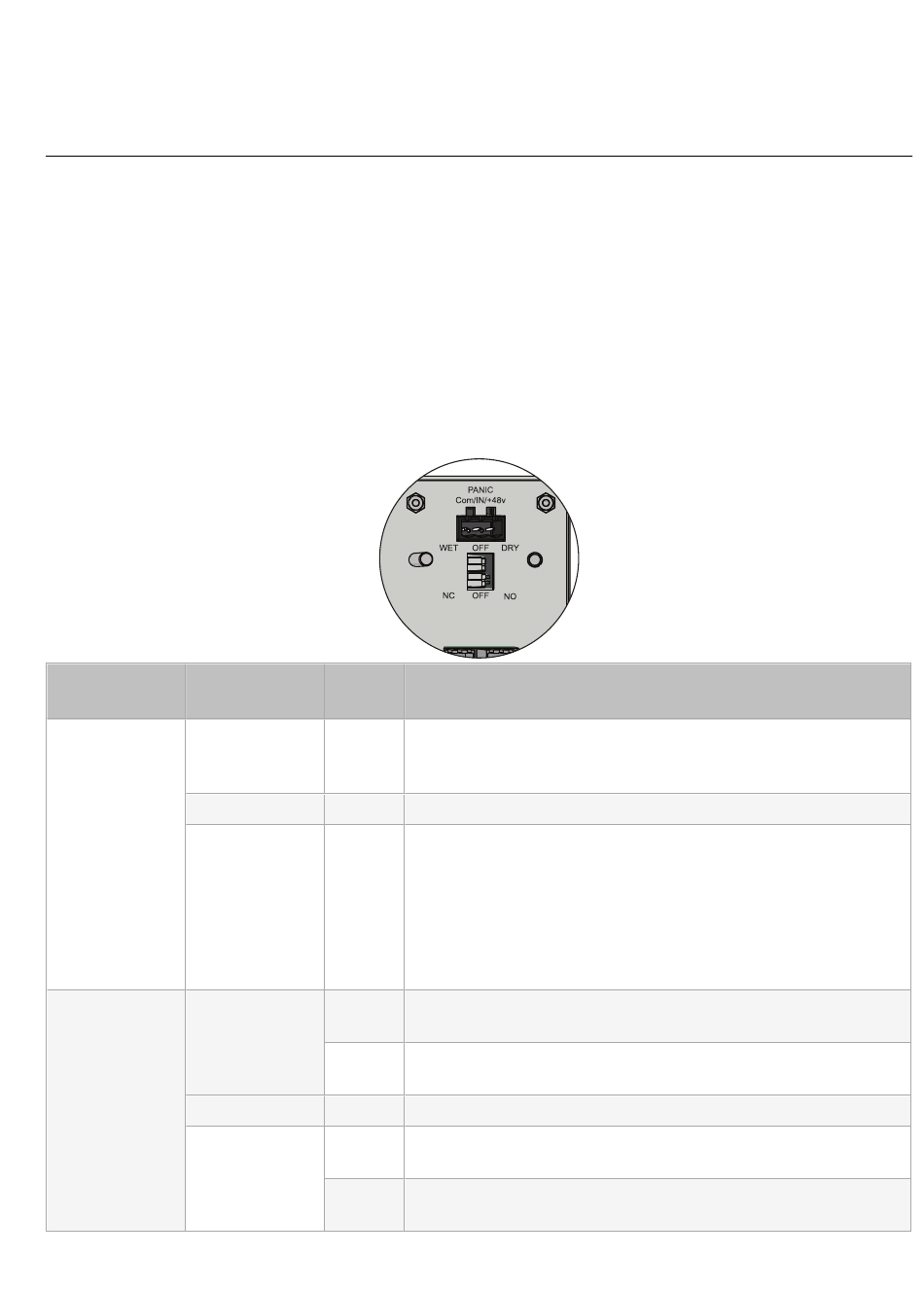

Switch Position
WET
OFF
WET/OFF/DRY
DRY
NC
(normally
closed)
NC/OFF/NO OFF
NO
(normally
open)
Panic Connector
.
Contact
Function
Action
"COM" on the three-pin panic connector is isolated to
- allow the use of an externally powered contact closure.
Use "COM" and "IN" to connect the contact closure.
- Wet or Dry is not set.
• "+48V" on the three-pin panic connector can be used
to power an external contact closure. Use "+48V" and
"IN" to connect the contact closure. "COM" is
connected to the F-Drive R12 common.
-
• "+48 V" and "COM" on the three-pin "PANIC"
connector can also be used as the sense input for an
F-Drive W1 Emergency Driver.
R12 is in normal state and outputs return to normal
close
DMX control.
R12 is in panic/emergency state and outputs are driven to
open
full.
- Panic behavior is disabled for the R12.
R12 is in normal state and outputs return to normal
open
DMX control.
R12 is in panic/emergency state and outputs are driven to
close
full.
