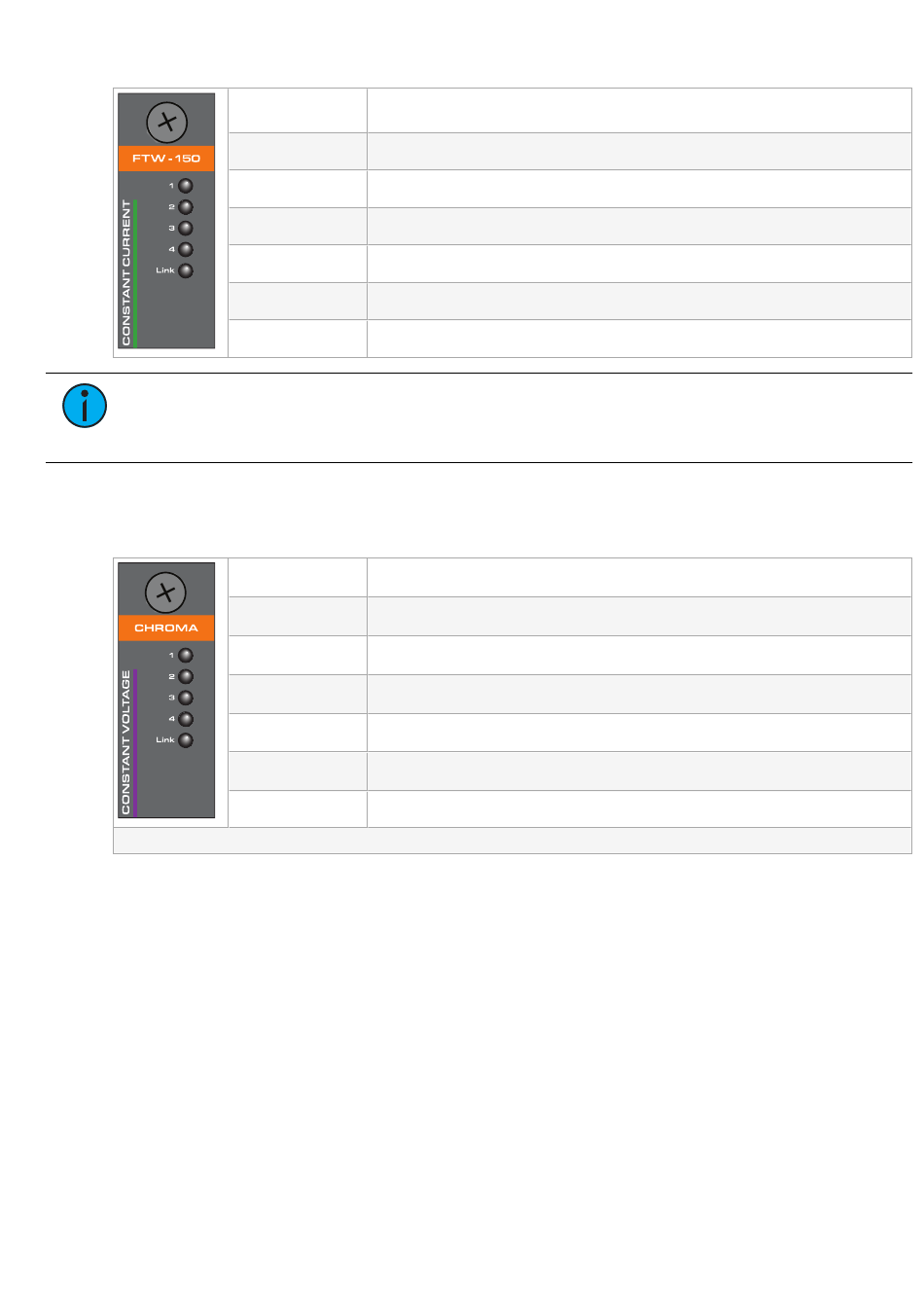

FTW-150 Card
The FTW-150 Card is designed for use with Navis 100 Fade to Warm luminaires.
Note:
receptacle OR the eight-pin terminal block on the slot where a FTW-150 Card or a
CC-150 Card is installed.
Chroma Card
The Chroma Card is designed for use with Navis 100 RGBW luminaires.
*An eight-pin terminal block is present, but disabled.
Overview
Constant current, maximum 450 mA per channel, 1.8 A total per card
Output
48 VDC
Output Channels Four channels on a single RJ45 or eight-pin terminal block
Loads Up to four Navis 100 Fade to Warm luminaires per card
Maximum Load 21.6 W per channel, 86 W per card
Model Number FDROCFTW150
Part Number 7148K1010
Label Stripe Color Green to match Navis 100 Fade to Warm luminaire face and cap labeling
Use ONE type of output connector for each card. For example, use the RJ45
Output 48 VDC power and data
Output Channels Four channels on a single RJ45*
Loads Up to four Navis 100 RGBW luminaires per card
Maximum Load 2.1 A, 100 W per card
Model Number FDROCCHC100
Part Number 7148K1014
Label Stripe Color Purple to match Navis 100 RGBW luminaire face and cap labeling
5
