ETC B-Box4 Installation Manual

ETC Installation Guide
F-Drive B-Box4
Overview

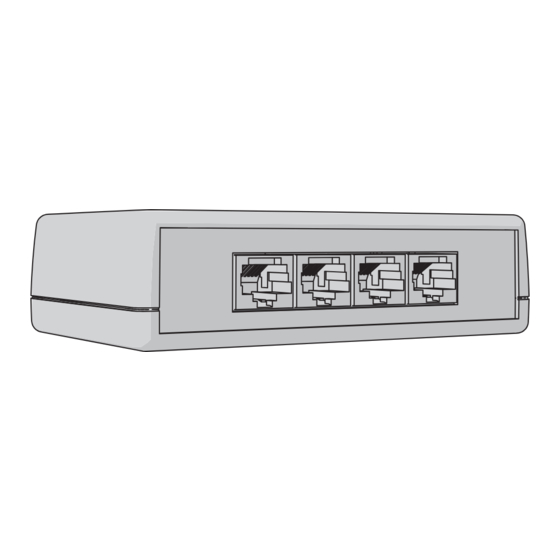

Thank you for purchasing an F-Drive Boomtabatty-Box4 (B-Box4). B-Box4 takes a single four-
channel RJ45 output from an F-Drive R12 output card or W1 Driver and provides four separated
output channels to support a variety of F-Drive-compatible luminaires (listed below) or third-party
loads in star topology.
Note:
requirements or local jurisdiction requirements.
Compatible Products
Luminaires
F-Drive-Compatible Luminaires with RJ45 Connectors
• Navis 100 Fixed White and Fade to Warm luminaires
• Source Four Mini LED for F-Drive Fixed White luminaires
• Irideon FPZ and Irideon WLZ for F-Drive Fixed White luminaires
Note:
F-Drive-Compatible Luminaires with Molex Connectors
• ArcSystem Pro One-Cell Standard Fixed White or Fade to Warm
• ArcSystem Pro One-Cell Small Fixed White or Fade to Warm
• ArcSystem Pro One-Cell Micro Fixed White or Fade to Warm
Drivers
• F-Drive R12 Driver with CC-150 Card or FTW-150 Card, one B-Box4 per output card
• F-Drive W1 CC Driver or W1 Fade to Warm Driver, one B-Box4 per driver
Note:
and R12 Chroma Card are not compatible with B-Box4.
F-Drive System Design Tool
The F-Drive System Design Tool
F-Drive R12 rack unit or F-Drive W1 Driver with different luminaires, breakout boxes, cable
lengths, and other system components.
LED Dimming Compatibility Database
The LED Dimming Compatibility Database
devices that ETC has tested for compatibility with ETC dimming and control systems.
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX | © 2023 Electronic Theatre Controls, Inc.
Web
Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7148M2120 Rev B Released 2023-11
If you install a B-Box within an Emergency Lighting Circuit, follow NEC marking
Navis RGBW luminaires are not compatible with B-Box4.
W1 CV Driver, W1 Chroma Driver, R12 ArcLamp 150 Card, R12 CV-150 Card,
(etcconnect.com/FDriveSysDesignTool) allows you to design an
etcconnect.com | Support support.etcconnect.com
etcconnect.com/ip
(etcconnect.com/compatibility) is a searchable list of
