- Page 1 5G CPE User Manual V 1.0.3 Xiamen Four-Faith Communication Technology Co., Ltd. https://www.fourfaith.com...
- Page 2 Revision History Date Version Declaration Author 2022-09-28 V1.0.0 Initial version Jonas 1.Modify the signal light value range 2023-02-25 V1.0.1 2. Improve the introduction of Limiao configuration functions 2023-03-01 V1.0.2 Add FCC and CE declarations. Jonas 2023-8-14 V1.0.3 English Version Update Larry...
- Page 3 All materials or content contained in this document are protected by copyright law. All copyrights are owned by Xiamen Four-Faith Communication Technology Co., Ltd., except for content attributed to other parties. Without written permission from Four-Faith, no one may copy, distribute, reprint, link, transmit, or use any content on this document for any commercial purpose.
- Page 4 5. The device complies with RF specifications when the device used at 20cm from the body. Hereby, Xiamen Four-Faith Communication Technology Co.,Ltd declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.
-
Page 5: Table Of Contents
5G CPE F-NR300 User Manual Contents Chapter 1 Product Introduction ............. 1 Product Overview ..............................1 Product Features ............................... 1 Product Appearance Overview ..........................2 Product Specifications ............................. 3 Indicator Light Function Description ........................7 Button Function Description ..........................7 Interface Definition Explanation .......................... -
Page 6: Chapter 1 Product Introduction

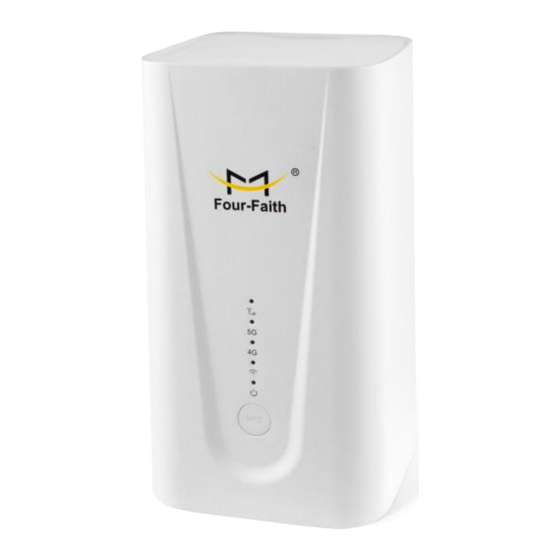

5G CPE F-NR300 User Manual Chapter 1 Product Introduction 1.1 Product Overview The F-NR300 is a high-performance 5G indoor CPE that supports NR (SA&NSA), TDD-LTE, and FDD-LTE. It converts cellular network data into WiFi and wired Ethernet data, supporting one 1G LAN port, one 2.5G LAN/WAN port, and 2.4G+5G dual-band WiFi-AP. -
Page 7: Product Appearance Overview
5G CPE F-NR300 User Manual ◆ Plug and Play The backend performs real-time detection and automatic repair of network issues, eliminating the need for manual restarts or network reconfigurations. This simplifies internet connectivity, requiring no manual intervention. ◆ Efficient Heat Dissipation... -
Page 8: Product Specifications
5G CPE F-NR300 User Manual SIM Card Slot Reset Button 1.4 Product Specifications F-NR300 Wireless Parameters 5G NR NSA： n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 5G NR SA： n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE-FDD： B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/ B66/B71 LTE-TDD： Frequency B34/B38/39/B40/B41/B42/B43/B48 Bands and WCDMA： MIMO B1/B2/B3/B4/B5/B6/B8/B19 5G NR: DL 4 × 4 MIMO: n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 UL 2 ×... - Page 9 5G CPE F-NR300 User Manual Hardware Parameters Cortex-A55@2.0GHz, Quad-core 32GB (North American version) FLASH 1GB (European and Chinese versions) 2GB ((North American version) LPDDR4 1GB (European and Chinese versions) Power Supply Standard DC 12V/3A Power Supply Power supply DC 9~24V...
- Page 10 5G CPE F-NR300 User Manual LTE TDD: B41/46/48 WCDMA: B2/4/5 European version，FLASH: 1GB, LPDDR4: 1GB Supported Frequency Bands： F-NR300-EA 5G Sub6: n1/3/5/7/8/20/28(a&b)/38/40/41/77/78/79 LTE FDD: B1/3/5/7/8/18/19/20/26/28(a&b)/32 LTE TDD: B38/40/41/42/43/46 WCDMA: B1/5/8 Chinese version，FLASH: 1GB, LPDDR4: 1GB Supported Frequency Bands： 5G Sub6: n1/3/5/7/8/20/28(a&b)/38/40/41/77/78/79 F-NR300-CN LTE FDD: B1/3/5/7/8/18/19/20/26/28(a&b)/32...
- Page 11 5G CPE F-NR300 User Manual DDR3 512MB WIFI parameters WIFI protocol IEEE802.11 a/b/g/n/ac/ax Frequency 2.4GHz+5GHz Bands Theoretical 2.4GHz 2x2MIMO 11ax, 0.573 Gbps Maximum 5GHz 2x2MIMO 11ax, 1.2 Gbps Bandwidth Supported WiFi Frequency 20MHz, 40MHz, 80MHz Bands Power Supply Standard Power...
-
Page 12: Indicator Light Function Description
5G CPE F-NR300 User Manual 1.5 Indicator Light Function Description Indicator Name Definition Explanation Light Cellular Signal Indicator Light Blue: Indicates signal strength with RSRP > -95dBm Cellular Signal or RSCP > -80dBm. Indicator Light 2. Yellow: Indicates signal strength with RSRP ≤... -
Page 13: Interface Definition Explanation
5G CPE F-NR300 User Manual 3.Shutdown state: Press and hold the power button for about 3 seconds to power Note: For F-NR300 V2, long press is for reboot and not for shutting down. Press and hold the button for >10 seconds to restore factory settings. -
Page 14: Chapter 2 Install Internet Configuration
5G CPE F-NR300 User Manual Chapter 2 Install Internet Configuration 2.1 SIM Card Internet Step 1: Insert the SIM card as shown (chip facing down, notch inward). Step 2: Power on the device, it will automatically boot up. The signal indicator light will stay solid, and the 5G/4G indicator light will also stay solid, indicating successful dial-up. - Page 15 5G CPE F-NR300 User Manual Step 4: If you need to make further configurations, open a web browser and manually enter: 192.168.1.1. Initial username: admin, initial password: admin. www.fourfaith.com Copyright @ Four-Faith 2023...
- Page 16 5G CPE F-NR300 User Manual Step 5: Set the username and password for WLAN. Step 6: Set the login password for the host device. After applying the settings, the page will redirect to the login page. Enter the newly set username and password (Username: admin, password is the newly set value), and click login.
-
Page 17: Wired Broadband Internet Access
5G CPE F-NR300 User Manual 2.2 Wired Broadband Internet Access Step 1: By default, the LAN2/WAN port is configured as a LAN port. It needs to be configured as a WAN port. Connect the power supply, the device will boot up automatically. After connecting a terminal device to the CPE, access the WEB page, configure the LAN2/WAN port as a WAN port, then save and apply the setting. -
Page 18: Dual-Band Bandwidth Priority Setting
5G CPE F-NR300 User Manual Step 3: Connect your terminal device to the CPE's LAN port using an Ethernet cable or connect to the CPE's WiFi network. This will allow your terminal device to access the internet. 2.3 Dual-Band Bandwidth Priority Setting. - Page 19 5G CPE F-NR300 User Manual Insert the SIM card into the device and connect the LAN2/WAN port to the upstream device as the WAN port. The device will prioritize using the mobile network. When the mobile network is unavailable, it will automatically switch to using the Ethernet connection.
-
Page 20: Chapter 3 Configuration Of Related Features
5G CPE F-NR300 User Manual Chapter 3 Configuration of Related Features 3.1 WLAN Configuration The WLAN settings are divided into basic settings and advanced settings. Basic settings allow you to configure the SSID, security mode, password, connection limit, broadcast hiding, and guest WiFi. -
Page 21: Mesh Network Configuration
5G CPE F-NR300 User Manual 3.2 Mesh Network Configuration Mesh network devices are divided into the Main Controller and sub nodes. Only one Main Controller is required, while multiple sub nodes can be added. The MESH function is disabled by default and needs to be enabled through the web interface. - Page 22 5G CPE F-NR300 User Manual main controller device. The white "Mesh" label will appear next to the WIFI icon in the status bar, indicating that the Mesh function of the main controller is now enabled. Step 2: Configure Sub-Nodes Connect the child node device to the PC using the LAN port, then access the WEB configuration page.
- Page 23 5G CPE F-NR300 User Manual Step 3: Establishing the Connection There are three methods for establishing the connection. Method 1: Direct Ethernet Connection Connect the LAN port of the main control device and the LAN port of the child node device using an Ethernet cable.
- Page 24 5G CPE F-NR300 User Manual Access the main control device's WEB page by entering 192.168.1.1 in your web browser. Click on "Display Sub Node Information" to view details about the sub nodes. You can see information about the sub nodes, and by clicking on their respective IP addresses, you can access the WEB configuration pages of the individual child node devices.
- Page 25 5G CPE F-NR300 User Manual On the sub node device page, you can see that the status section displays information about the main control device. The WiFi icon in the status bar features a white "Mesh" label. Method 2: Pressing the WPS Button Simultaneously press the WPS buttons on both the main control device and the sub node device.
- Page 26 5G CPE F-NR300 User Manual Method 3: Clicking PBC Connection on the WEB Page Log in to both the main control and sub node web pages separately. Click on PBC Connection. If the network formation is successful, you will receive a prompt indicating "Mesh Connection Successful."...
-
Page 27: Mobile Network Configuration
5G CPE F-NR300 User Manual After successful network formation, place the main control and sub node devices in appropriate locations. Clients will only be able to detect the WiFi hotspot of the main control device. Notice：When setting up the network, please use devices of the same model and version to avoid network setup failures due to driver discrepancies and other issues. -
Page 28: Traffic Usage Monitoring Configuration
5G CPE F-NR300 User Manual Disabling SIM Card Configuration allows you to set up Access Point Names (APN), authentication methods, usernames, passwords, and more. 3.4 Traffic Usage Monitoring Configuration Traffic Usage Monitoring is only applicable to mobile networks. The traffic usage monitoring page displays the total data usage for the current day and month. - Page 29 5G CPE F-NR300 User Manual To enable data usage exceeded alerts or automatic mobile data disconnection, follow these steps. Step 1: Configuring Data Usage Exceeded Data Usage Actions: None: When data usage exceeds the set data package limit, a data usage icon will appear in the status bar as a reminder, but the mobile network will not be disconnected, and you can continue to use it.
- Page 30 5G CPE F-NR300 User Manual Step 2: Restoring Mobile Network After Data Exceedance After data usage exceeds the limit and the mobile network disconnects, you will need to manually enable mobile data. On the home screen, click on "Enable Mobile Data." This will display a data usage exceeded notification page.
- Page 31 5G CPE F-NR300 User Manual www.fourfaith.com Copyright @ Four-Faith 2023...
-
Page 32: Qos Configuration
5G CPE F-NR300 User Manual 3.5 QOS Configuration The QoS (Quality of Service) function allows you to limit the bandwidth for both mobile networks and Ethernet connections. When the bandwidth policy is enabled and no settings are configured in the advanced settings, the default bandwidth limitation policy for connected terminal devices is set to "Normal. - Page 33 5G CPE F-NR300 User Manual www.fourfaith.com Copyright @ Four-Faith 2023...
