Summary of Contents for STL K-FORCE 27 TIR

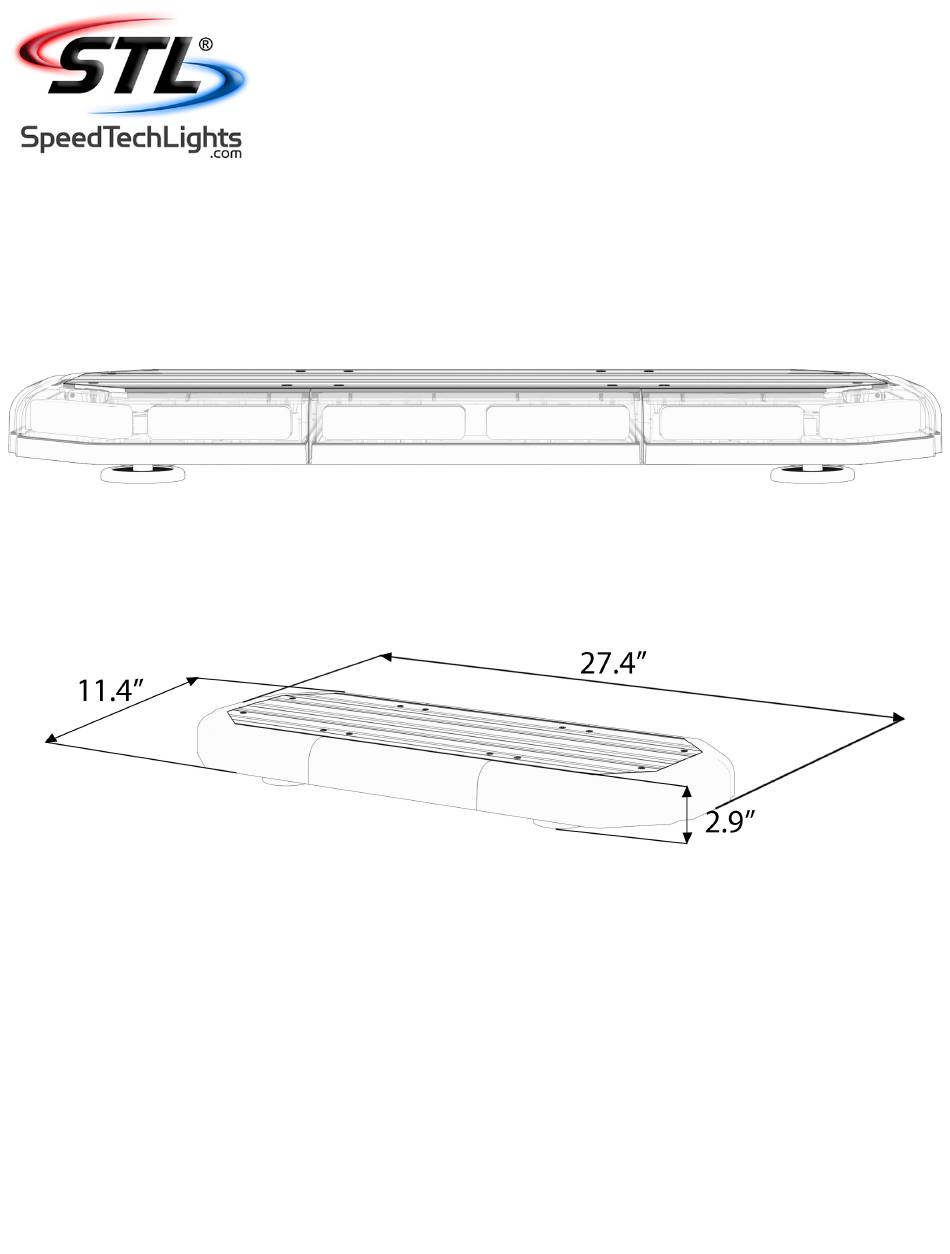

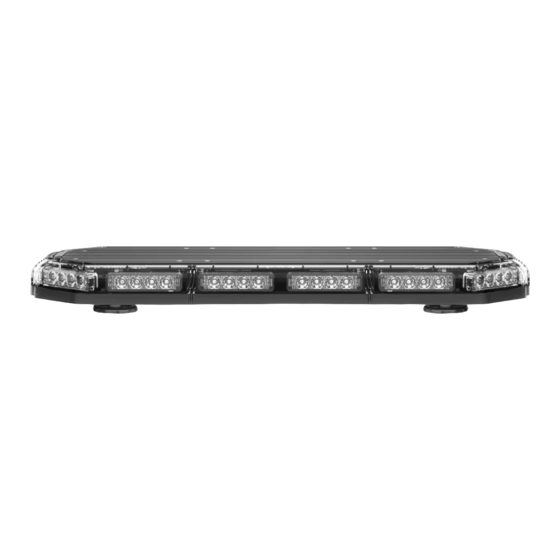

- Page 1 K-FORCE 27 TIR ® MINI LIGHT BAR M-TKF27 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2023...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
-
Page 3: Maintenance
Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products. -
Page 4: Specifications
AUX Wiring Diagram Wire Color Function AUX Positive AUX Negative Blue Control box back light * White * Only functional when using in conjunction with STL Grand Control Box (Sold separately) Specifications Voltage 12 VDC Amps < 9.8 Optic LED Count... - Page 5 K-FORCE 27 TIR ® MINI LIGHT BAR Grand Control Switch Box Operation (Sold Separately) Power Button: • Push this button to turn On/Off the Direct Control Box. Mode 1 Button: • Activate warning function in flash pattern memory 1. Mode 2 Button: •...
- Page 6 K-FORCE 27 TIR ® MINI LIGHT BAR Magnet Mounts (Included) • This unit comes included with magnetic mounting brackets pre-attached. • Magnet brackets are adjustable along the length of the aluminum track. • Ensure all four magnets are secured to a flat surface. Stud Mount (Sold Separately) •...
- Page 7 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Grand Control Box to cycle through the various patterns.
