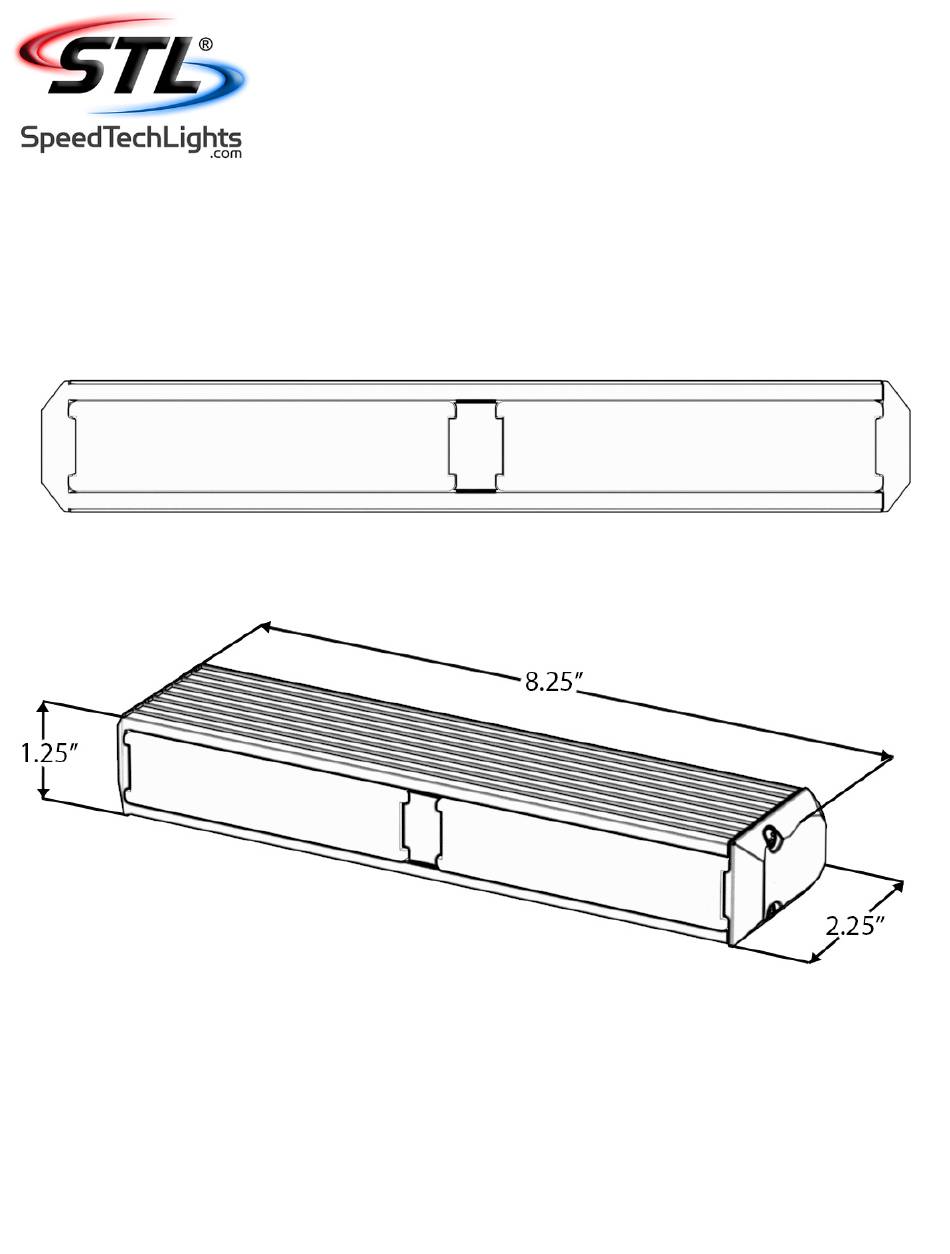

- Page 1 VIRTUE ® MULTICOLOR DASH LIGHT B-VRL2 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2024...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.
- Page 4 VIRTUE ® MULTICOLOR DASH LIGHT Wiring Diagram Wire Color Function Positive- Memory Mode 1 Red* Negative Black* Flash Pattern Yellow Positive- Memory Mode 2 Green Sync (Max 2 units) White * Indicates a main power cable. NOTE: All cables except Negative contact +12 VDC. NOTE: Flash Mode 2 function can only be activated while Flash Mode 1 cable is receivng +12VDC too.
- Page 5 VIRTUE ® MULTICOLOR DASH LIGHT 90° Suction Cup Bracket (Sold Separately) • Position the slide track screws included with the unit such that the screws line up with the bracket oval tracks. Use the included nuts and washers to secure the bracket to the unit.
- Page 6 VIRTUE ® MULTICOLOR DASH LIGHT Windshield Visor Assembly and Mounting The windshield visor contents include: • (1) Visor • (2) Visor end caps • (6) Short screws • (4) Long screws 1. Remove the stock end cap screws from both ends of the Light Bar. NOTE: Save these screws to revert back to non-visor configuration.
- Page 7 VIRTUE ® MULTICOLOR DASH LIGHT Flash Pattern List • Slow Single Alternating Flash • Single Alternating Flash • Fast Single Alternating Flash • Slow Triple Alternating Flash • Triple Alternating Flash • Fast Triple Alternating Flash • Slow Quad Alternating Flash •...
